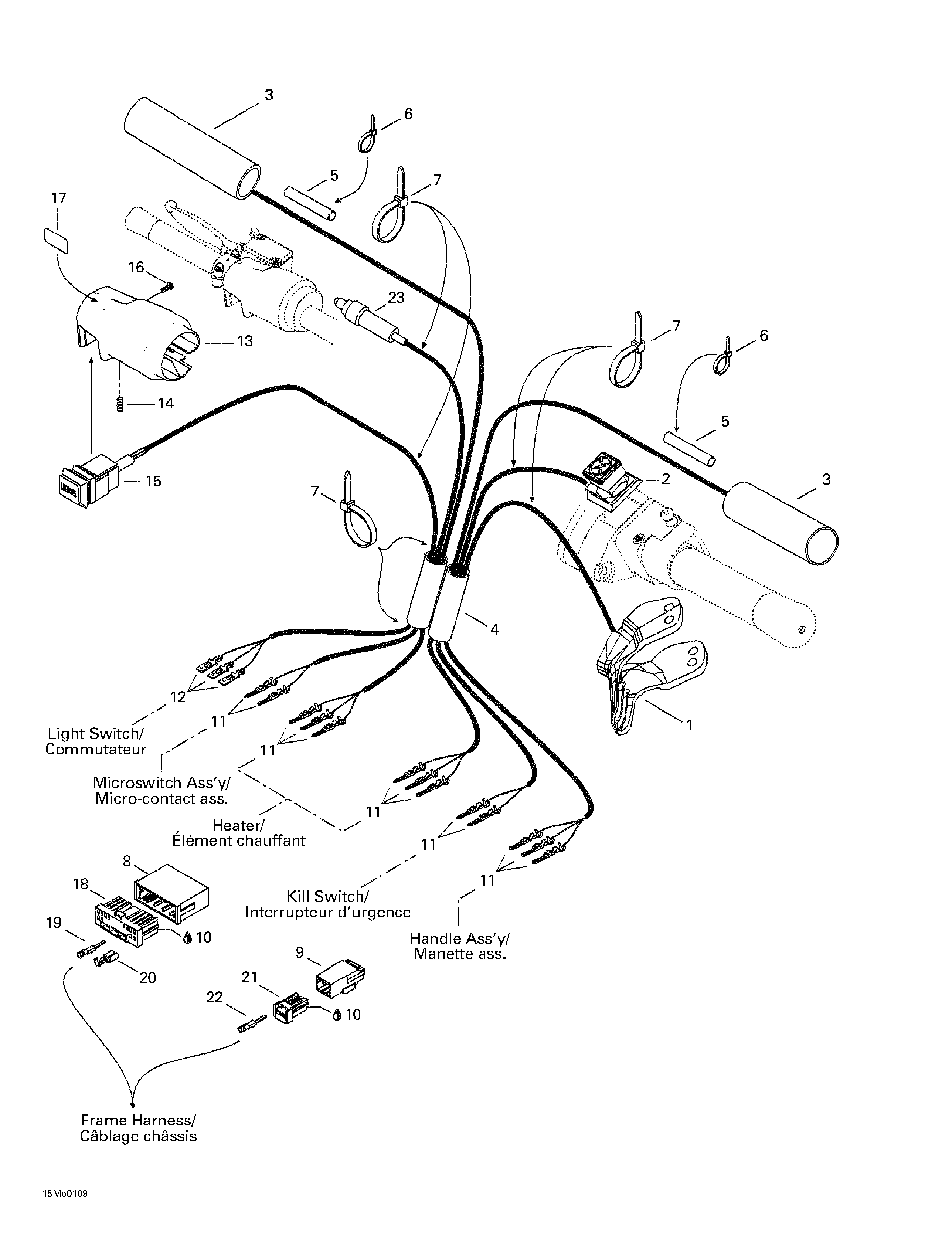

07- Steering System для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1512059348 Throttle Handle Ass'y 38 mm. Formula Deluxe 500.Throttle Handle Ass'y 38 mm. Formula Deluxe 500.
-
512059107 Throttle Handle Ass'y 28 mm. Formula Deluxe 600. Formula Deluxe 700.Throttle Handle Ass'y 28 mm. Formula Deluxe 600. Formula Deluxe 700.
-
2515175410 Kill SwitchKill Switch
-
3515175389 Heating ElementHeating Element
-
4515175314 Low Temperature Tubing 5/8''Low Temperature Tubing 5/8''
-
5515175332 Low Temperature Tubing 1/4''Low Temperature Tubing 1/4''
-
6293750001 Tie Rap 94 mmTie Rap 94 mm
-
7414115200 Tie Rap 180 mmTie Rap 180 mm
-
8515175352 Male Terminal Housing (13 circuits)Male Terminal Housing (13 circuits)
-
9515175494 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11515175232 Male TerminalMale Terminal
-
12515175273 Male TerminalMale Terminal
-
13515175307 Brake HousingBrake Housing
-
14414440800 Set ScrewSet Screw
-
15515175390 Light SwitchLight Switch
-
16250000022 Phillips ScrewPhillips Screw
-
17415025500 Switch DecalSwitch Decal
-
18515175350 Femelle Terminal Housing (13 circuits)Femelle Terminal Housing (13 circuits)
-
19515175231 Female Terminal (16-20 Gauge)Female Terminal (16-20 Gauge)
-
20515175282 Female Terminal (14-20 Gauge)Female Terminal (14-20 Gauge)
-
21515175495 Femelle Terminal Housing (3 circuits)Femelle Terminal Housing (3 circuits)
-
22515175231 Female Terminal (16-20 Gauge)Female Terminal (16-20 Gauge)
-
23507032283 MicroswitchMicroswitch
