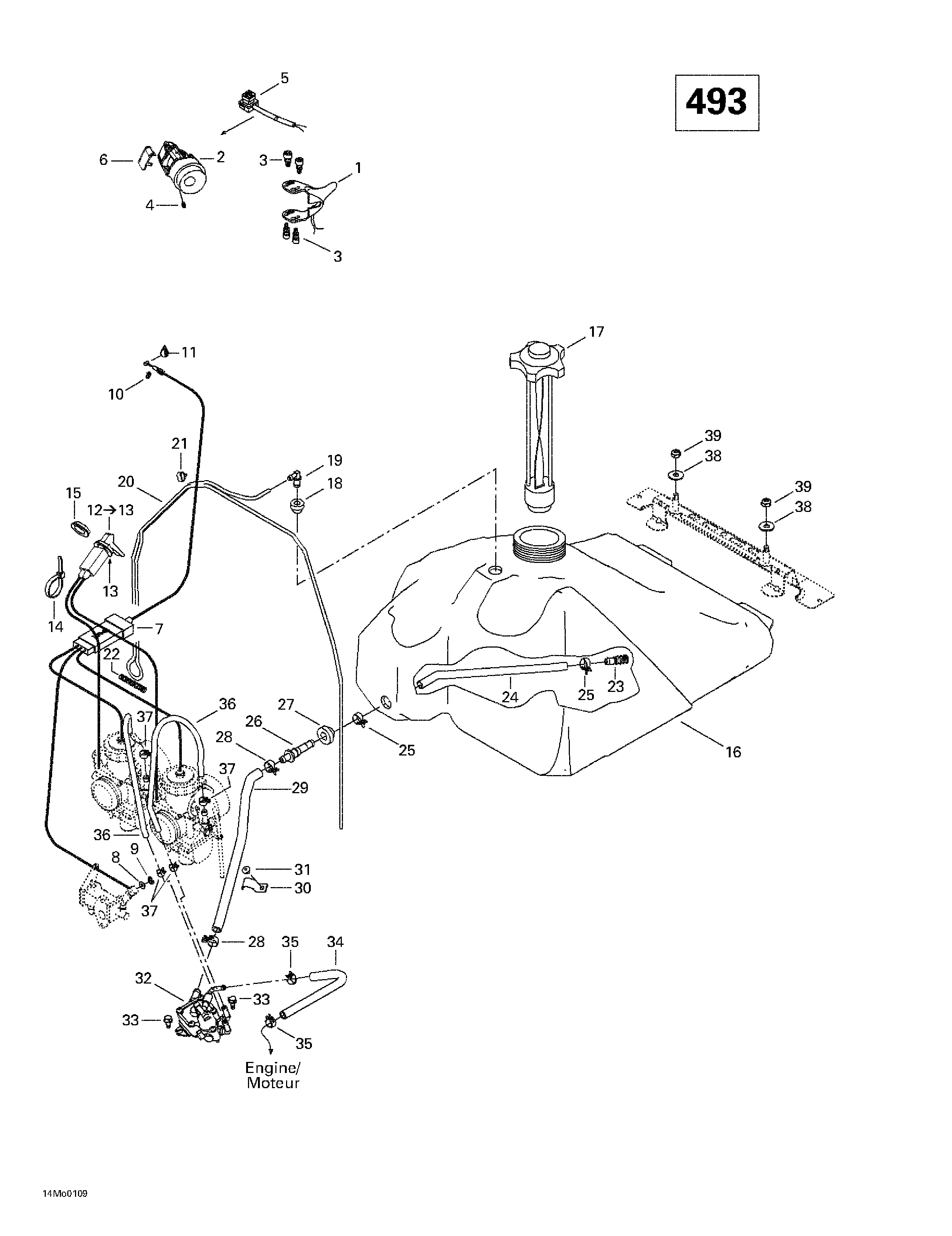

02- Fuel System (493) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001

  • №
    Артикул
    Название
  • 1
    512059348 Throttle Handle Ass'y 38 mm. Formula Deluxe 500.
    Throttle Handle Ass'y 38 mm. Formula Deluxe 500.
  • 2
    512059243 Throttle Handle Housing. Formula Deluxe 500.
    Throttle Handle Housing. Formula Deluxe 500.
  • 3
    732601143 Screw. Formula Deluxe 500.
    Screw. Formula Deluxe 500.
  • 4
    414440800 Set Screw M8 x 10. Formula Deluxe 500.
    Set Screw M8 x 10. Formula Deluxe 500.
  • 5
    515175410 Kill Switch. Formula Deluxe 500.
    Kill Switch. Formula Deluxe 500.
  • 6
    572100901 Switch Cover. Formula Deluxe 500.
    Switch Cover. Formula Deluxe 500.
  • 7
    512059111 Throttle Cable. Formula Deluxe 500.
    Throttle Cable. Formula Deluxe 500.
  • 8
    414753300 Washer. Formula Deluxe 500.
    Washer. Formula Deluxe 500.
  • 9
    414753500 Circlip. Formula Deluxe 500.
    Circlip. Formula Deluxe 500.
  • 10
    414274500 Circlip. Formula Deluxe 500.
    Circlip. Formula Deluxe 500.
  • 11
    293550004 Dielectric Grease, 150 g. Formula Deluxe 500.
    Dielectric Grease, 150 g. Formula Deluxe 500.
  • 12
    512059203 Choke Cable. Includes 12 - 13. Formula Deluxe 500.
    Choke Cable. Includes 12 - 13. Formula Deluxe 500.
  • 13
    394103300 Int. Teeth Lock Washer. Formula Deluxe 500.
    Int. Teeth Lock Washer. Formula Deluxe 500.
  • 14
    515175220 Tie Rap 94 mm. Formula Deluxe 500.
    Tie Rap 94 mm. Formula Deluxe 500.
  • 15
    512059094 Plastic Nut. Formula Deluxe 500.
    Plastic Nut. Formula Deluxe 500.
  • 16
    513032987 Fuel Tank. Formula Deluxe 500.
    Fuel Tank. Formula Deluxe 500.
  • 17
    513032901 Fuel Tank Cap. Formula Deluxe 500.
    Fuel Tank Cap. Formula Deluxe 500.
  • 18
    513032908 Grommet. Formula Deluxe 500.
    Grommet. Formula Deluxe 500.
  • 19
    414814100 Male Connector. Formula Deluxe 500.
    Male Connector. Formula Deluxe 500.
  • 20
    415080100 Primer Line. Formula Deluxe 500.
    Primer Line. Formula Deluxe 500.
  • 21
    513032923 Tube Clamp. Formula Deluxe 500.
    Tube Clamp. Formula Deluxe 500.
  • 22
    414818200 Spring. Formula Deluxe 500.
    Spring. Formula Deluxe 500.
  • 23
    414872100 Fuel Filter. Formula Deluxe 500.
    Fuel Filter. Formula Deluxe 500.
  • 24
    415005700 Hose. Formula Deluxe 500.
    Hose. Formula Deluxe 500.
  • 25
    513033010 Spring Clamp. Formula Deluxe 500.
    Spring Clamp. Formula Deluxe 500.
  • 26
    414872700 Male Connector. Formula Deluxe 500.
    Male Connector. Formula Deluxe 500.
  • 27
    570273900 Grommet. Formula Deluxe 500.
    Grommet. Formula Deluxe 500.
  • 28
    513032979 Spring Clamp. Formula Deluxe 500.
    Spring Clamp. Formula Deluxe 500.
  • 29
    513032903 Formed Hose. Formula Deluxe 500.
    Formed Hose. Formula Deluxe 500.
  • 30
    415018200 Clip. Formula Deluxe 500.
    Clip. Formula Deluxe 500.
  • 31
    390406500 Pop Rivet 3/16''. Formula Deluxe 500.
    Pop Rivet 3/16''. Formula Deluxe 500.
  • 32
    403901803 Fuel Pump. Formula Deluxe 500.
    Fuel Pump. Formula Deluxe 500.
  • 33
    210361280 Hex. Screw M6 x 12. Formula Deluxe 500.
    Hex. Screw M6 x 12. Formula Deluxe 500.
  • 34
    415079800 Rubber Hose. Formula Deluxe 500.
    Rubber Hose. Formula Deluxe 500.
  • 35
    414415200 Spring Clamp. Formula Deluxe 500.
    Spring Clamp. Formula Deluxe 500.
  • 36
    415117800 Formed Tube. Formula Deluxe 500.
    Formed Tube. Formula Deluxe 500.
  • 37
    414420700 Spring Clamp. Formula Deluxe 500.
    Spring Clamp. Formula Deluxe 500.
  • 38
    234082410 Flat Washer 8 mm. Formula Deluxe 500.
    Flat Washer 8 mm. Formula Deluxe 500.
  • 39
    232581414 Elastic Stop Nut M8. Formula Deluxe 500.
    Elastic Stop Nut M8. Formula Deluxe 500.
