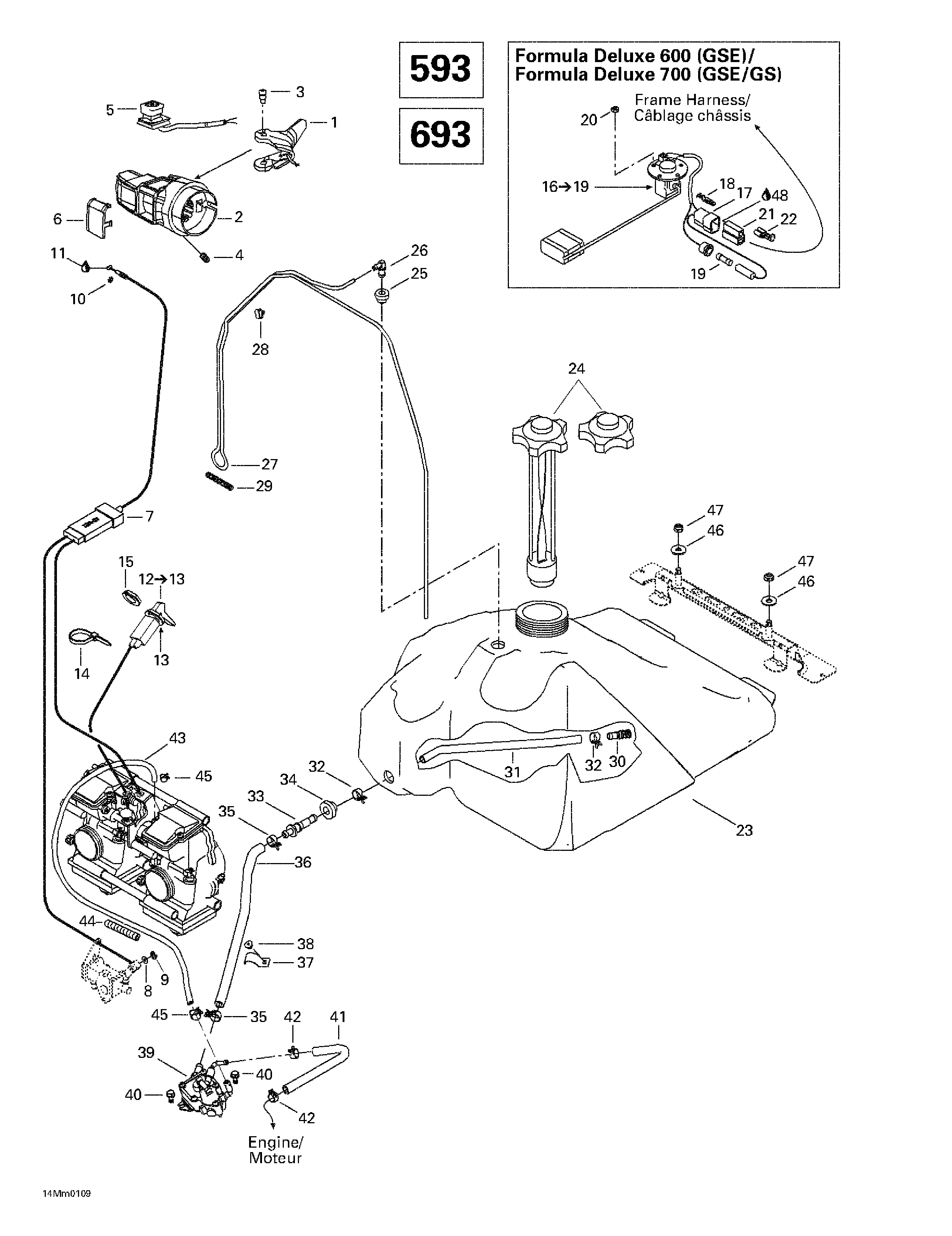

02- Fuel System (593, 693) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1512059107 Throttle Handle Ass'y 28 mm. Formula Deluxe 600. Formula Deluxe 700.Throttle Handle Ass'y 28 mm. Formula Deluxe 600. Formula Deluxe 700.
-
2512059109 Throttle Handle Housing. Formula Deluxe 600. Formula Deluxe 700.Throttle Handle Housing. Formula Deluxe 600. Formula Deluxe 700.
-
3732601143 Screw. Formula Deluxe 600. Formula Deluxe 700.Screw. Formula Deluxe 600. Formula Deluxe 700.
-
4414440800 Set Screw M8 x 10. Formula Deluxe 600. Formula Deluxe 700.Set Screw M8 x 10. Formula Deluxe 600. Formula Deluxe 700.
-
5515175410 Kill Switch. Formula Deluxe 600. Formula Deluxe 700.Kill Switch. Formula Deluxe 600. Formula Deluxe 700.
-
6572100901 Switch Cover. Formula Deluxe 600. Formula Deluxe 700.Switch Cover. Formula Deluxe 600. Formula Deluxe 700.
-
7512059388 Throttle Cable. Formula Deluxe 600. Formula Deluxe 700.Throttle Cable. Formula Deluxe 600. Formula Deluxe 700.
-
8414753300 Washer. Formula Deluxe 600. Formula Deluxe 700.Washer. Formula Deluxe 600. Formula Deluxe 700.
-
9414753500 Circlip. Formula Deluxe 600. Formula Deluxe 700.Circlip. Formula Deluxe 600. Formula Deluxe 700.
-
10414274500 Circlip. Formula Deluxe 600. Formula Deluxe 700.Circlip. Formula Deluxe 600. Formula Deluxe 700.
-
11293550004 Dielectric Grease, 150 g. Formula Deluxe 600. Formula Deluxe 700.Dielectric Grease, 150 g. Formula Deluxe 600. Formula Deluxe 700.
-
12512059110 Choke Cable. Includes 12 - 13. Formula Deluxe 600. Formula Deluxe 700.Choke Cable. Includes 12 - 13. Formula Deluxe 600. Formula Deluxe 700.
-
13394103300 Int. Teeth Lock Washer. Formula Deluxe 600. Formula Deluxe 700.Int. Teeth Lock Washer. Formula Deluxe 600. Formula Deluxe 700.
-
14515175220 Tie Rap 94 mm. Formula Deluxe 600. Formula Deluxe 700.Tie Rap 94 mm. Formula Deluxe 600. Formula Deluxe 700.
-
15512059094 Plastic Nut. Formula Deluxe 600. Formula Deluxe 700.Plastic Nut. Formula Deluxe 600. Formula Deluxe 700.
-
16515175170 Fuel Sensor Ass'y. Includes 16 - 19. (GSE/GS) Formula Deluxe 600. Formula Deluxe 700.Fuel Sensor Ass'y. Includes 16 - 19. (GSE/GS) Formula Deluxe 600. Formula Deluxe 700.
-
17409204500 Male Terminal Housing (2 Circuits). (GSE/GS) Formula Deluxe 600. Formula Deluxe 700.Male Terminal Housing (2 Circuits). (GSE/GS) Formula Deluxe 600. Formula Deluxe 700.
-
18409210000 Male Terminal (GSE/GS). Formula Deluxe 600. Formula Deluxe 700.Male Terminal (GSE/GS). Formula Deluxe 600. Formula Deluxe 700.
-
19410112400 Fuse (0.25 Ampere) (GSE/GS). Formula Deluxe 600. Formula Deluxe 700.Fuse (0.25 Ampere) (GSE/GS). Formula Deluxe 600. Formula Deluxe 700.
-
20232551414 Elastic Stop Nut M5 (GSE/GS). Formula Deluxe 600. Formula Deluxe 700.Elastic Stop Nut M5 (GSE/GS). Formula Deluxe 600. Formula Deluxe 700.
-
21409204600 Female Terminal Housing (2 Circuits). Formula Deluxe 600. Formula Deluxe 700.Female Terminal Housing (2 Circuits). Formula Deluxe 600. Formula Deluxe 700.
-
22561503100 Female Terminal. Formula Deluxe 600. Formula Deluxe 700.Female Terminal. Formula Deluxe 600. Formula Deluxe 700.
-
23513032987 Fuel Tank (Standard). Formula Deluxe 600.Fuel Tank (Standard). Formula Deluxe 600.
-
513032988 Fuel Tank (GSE). Formula Deluxe 600. Formula Deluxe 700.Fuel Tank (GSE). Formula Deluxe 600. Formula Deluxe 700.
-
513032988 Fuel Tank (GS). Formula Deluxe 700.Fuel Tank (GS). Formula Deluxe 700.
-
24513032901 Fuel Tank Cap (Standard). Formula Deluxe 600.Fuel Tank Cap (Standard). Formula Deluxe 600.
-
572039600 Fuel Tank Cap (GSE/GS). Formula Deluxe 600. Formula Deluxe 700.Fuel Tank Cap (GSE/GS). Formula Deluxe 600. Formula Deluxe 700.
-
25513032908 Grommet. Formula Deluxe 600. Formula Deluxe 700.Grommet. Formula Deluxe 600. Formula Deluxe 700.
-
26414814100 Male Connector. Formula Deluxe 600. Formula Deluxe 700.Male Connector. Formula Deluxe 600. Formula Deluxe 700.
-
27415080100 Primer Line. Formula Deluxe 600. Formula Deluxe 700.Primer Line. Formula Deluxe 600. Formula Deluxe 700.
-
28513032923 Tube Clamp. Formula Deluxe 600. Formula Deluxe 700.Tube Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
29414818200 Spring. Formula Deluxe 600. Formula Deluxe 700.Spring. Formula Deluxe 600. Formula Deluxe 700.
-
30414872100 Fuel Filter. Formula Deluxe 600. Formula Deluxe 700.Fuel Filter. Formula Deluxe 600. Formula Deluxe 700.
-
31415005700 Hose. Formula Deluxe 600. Formula Deluxe 700.Hose. Formula Deluxe 600. Formula Deluxe 700.
-
32513033010 Spring Clamp. Formula Deluxe 600. Formula Deluxe 700.Spring Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
33414872700 Male Connector. Formula Deluxe 600. Formula Deluxe 700.Male Connector. Formula Deluxe 600. Formula Deluxe 700.
-
34570273900 Grommet. Formula Deluxe 600. Formula Deluxe 700.Grommet. Formula Deluxe 600. Formula Deluxe 700.
-
35513032979 Spring Clamp. Formula Deluxe 600. Formula Deluxe 700.Spring Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
36513032903 Formed Hose. Formula Deluxe 600. Formula Deluxe 700.Formed Hose. Formula Deluxe 600. Formula Deluxe 700.
-
37415018200 Clip. Formula Deluxe 600. Formula Deluxe 700.Clip. Formula Deluxe 600. Formula Deluxe 700.
-
38390406500 Pop Rivet 3/16''. Formula Deluxe 600. Formula Deluxe 700.Pop Rivet 3/16''. Formula Deluxe 600. Formula Deluxe 700.
-
39403901804 Fuel Pump. Formula Deluxe 600. Formula Deluxe 700.Fuel Pump. Formula Deluxe 600. Formula Deluxe 700.
-
40210361280 Hex. Screw M6 x 12. Formula Deluxe 600. Formula Deluxe 700.Hex. Screw M6 x 12. Formula Deluxe 600. Formula Deluxe 700.
-
41415079800 Rubber Hose. Formula Deluxe 600. Formula Deluxe 700.Rubber Hose. Formula Deluxe 600. Formula Deluxe 700.
-
42414415200 Spring Clamp. Formula Deluxe 600. Formula Deluxe 700.Spring Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
43513032986 Formed Tube. Formula Deluxe 600. Formula Deluxe 700.Formed Tube. Formula Deluxe 600. Formula Deluxe 700.
-
44415079900 Tubing. Formula Deluxe 600. Formula Deluxe 700.Tubing. Formula Deluxe 600. Formula Deluxe 700.
-
45414420700 Spring Clamp. Formula Deluxe 600. Formula Deluxe 700.Spring Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
46234082410 Flat Washer 8 mm. Formula Deluxe 600. Formula Deluxe 700.Flat Washer 8 mm. Formula Deluxe 600. Formula Deluxe 700.
-
47232581414 Elastic Stop Nut M8. Formula Deluxe 600. Formula Deluxe 700.Elastic Stop Nut M8. Formula Deluxe 600. Formula Deluxe 700.
-
48293550004 Dielectric Grease, 150 g. Formula Deluxe 600. Formula Deluxe 700.Dielectric Grease, 150 g. Formula Deluxe 600. Formula Deluxe 700.
