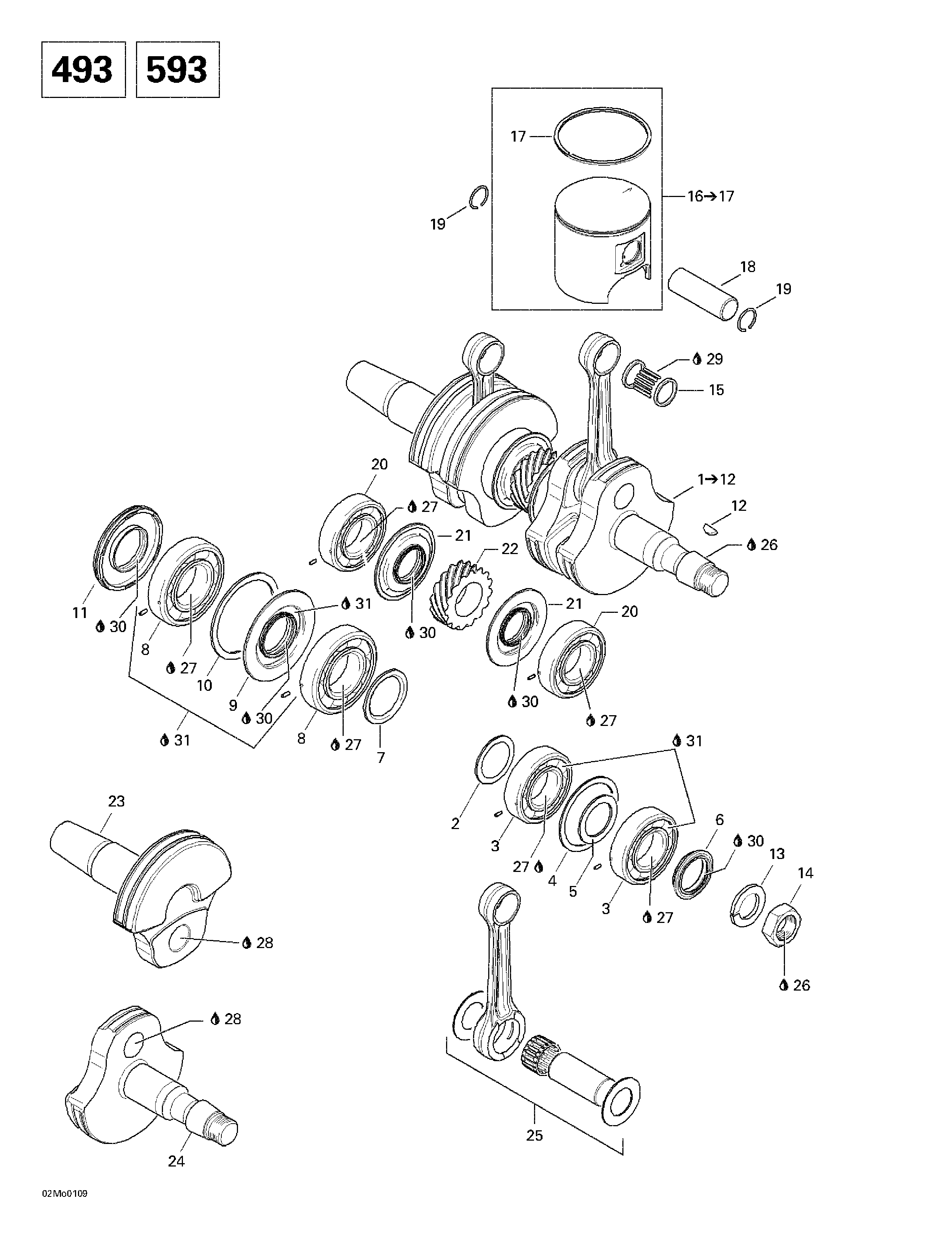

01- Crankshaft And Pistons (493, 593) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001

  • №
    Артикул
    Название
  • 1
    420888462 Crankshaft Ass'y. Includes 1 - 12. Formula Deluxe 500.
    Crankshaft Ass'y. Includes 1 - 12. Formula Deluxe 500.
  • 420888750 Crankshaft Ass'y. Formula Deluxe 600.
    Crankshaft Ass'y. Formula Deluxe 600.
  • 2
    420827445 Distance Ring. Formula Deluxe 500. Formula Deluxe 600.
    Distance Ring. Formula Deluxe 500. Formula Deluxe 600.
  • 3
    420832590 Ball Bearing 6206. Formula Deluxe 500. Formula Deluxe 600.
    Ball Bearing 6206. Formula Deluxe 500. Formula Deluxe 600.
  • 4
    420827050 Retaining Disk. Formula Deluxe 500. Formula Deluxe 600.
    Retaining Disk. Formula Deluxe 500. Formula Deluxe 600.
  • 5
    420427684 Adjustment Washer. Formula Deluxe 500. Formula Deluxe 600.
    Adjustment Washer. Formula Deluxe 500. Formula Deluxe 600.
  • 6
    420931790 Oil Seal. Formula Deluxe 500. Formula Deluxe 600.
    Oil Seal. Formula Deluxe 500. Formula Deluxe 600.
  • 7
    420827760 Distance Ring. Formula Deluxe 500. Formula Deluxe 600.
    Distance Ring. Formula Deluxe 500. Formula Deluxe 600.
  • 8
    420832575 Ball Bearing 6207. Formula Deluxe 500. Formula Deluxe 600.
    Ball Bearing 6207. Formula Deluxe 500. Formula Deluxe 600.
  • 9
    420931455 Oil Seal. Formula Deluxe 500. Formula Deluxe 600.
    Oil Seal. Formula Deluxe 500. Formula Deluxe 600.
  • 10
    420927710 Retaining Disk. Formula Deluxe 500. Formula Deluxe 600.
    Retaining Disk. Formula Deluxe 500. Formula Deluxe 600.
  • 11
    290831952 Oil Seal. Formula Deluxe 500. Formula Deluxe 600.
    Oil Seal. Formula Deluxe 500. Formula Deluxe 600.
  • 12
    420246015 Woodfuff Key. Formula Deluxe 500. Formula Deluxe 600.
    Woodfuff Key. Formula Deluxe 500. Formula Deluxe 600.
  • 13
    420945759 Lock Washer 22 mm. Formula Deluxe 500. Formula Deluxe 600.
    Lock Washer 22 mm. Formula Deluxe 500. Formula Deluxe 600.
  • 14
    420842230 Hex. Nut M22. Formula Deluxe 500. Formula Deluxe 600.
    Hex. Nut M22. Formula Deluxe 500. Formula Deluxe 600.
  • 15
    420832320 Needle Bearing. Formula Deluxe 500.
    Needle Bearing. Formula Deluxe 500.
  • 420832425 Needle Bearing. Formula Deluxe 600.
    Needle Bearing. Formula Deluxe 600.
  • 16
    420888442 Piston Ass'y (1 Ring 69.40 mm). Includes 16 - 17. Formula Deluxe 500.
    Piston Ass'y (1 Ring 69.40 mm). Includes 16 - 17. Formula Deluxe 500.
  • 420886687 Piston Ass'y (1 Ring 75.88 mm). Formula Deluxe 600.
    Piston Ass'y (1 Ring 75.88 mm). Formula Deluxe 600.
  • 420888443 OversizePistonAss'y(1Ring69.65mm). Formula Deluxe 500.
    OversizePistonAss'y(1Ring69.65mm). Formula Deluxe 500.
  • 420886688 OversizePistonAss'y(1Ring76.16mm). Formula Deluxe 600.
    OversizePistonAss'y(1Ring76.16mm). Formula Deluxe 600.
  • 17
    420815043 Semi-Trapez Ring 69.50 mm. Formula Deluxe 500.
    Semi-Trapez Ring 69.50 mm. Formula Deluxe 500.
  • 420815150 Semi-Trapez Ring 76.00 mm. Formula Deluxe 600.
    Semi-Trapez Ring 76.00 mm. Formula Deluxe 600.
  • 420815044 Oversize Semi-Trapez Ring 69.75 mm. Formula Deluxe 500.
    Oversize Semi-Trapez Ring 69.75 mm. Formula Deluxe 500.
  • 420815151 Oversize Semi-Trapez Ring 76.25 mm. Formula Deluxe 600.
    Oversize Semi-Trapez Ring 76.25 mm. Formula Deluxe 600.
  • 18
    420916186 Gudgeon Pin. Formula Deluxe 500.
    Gudgeon Pin. Formula Deluxe 500.
  • 420916410 Gudgeon Pin. Formula Deluxe 600.
    Gudgeon Pin. Formula Deluxe 600.
  • 19
    420945735 Piston Circlip. Formula Deluxe 500.
    Piston Circlip. Formula Deluxe 500.
  • 420845102 Piston Circlip. Formula Deluxe 600.
    Piston Circlip. Formula Deluxe 600.
  • 20
    420832590 Ball Bearing 6206. Formula Deluxe 500. Formula Deluxe 600.
    Ball Bearing 6206. Formula Deluxe 500. Formula Deluxe 600.
  • 21
    420931940 Oil Seal. Formula Deluxe 500. Formula Deluxe 600.
    Oil Seal. Formula Deluxe 500. Formula Deluxe 600.
  • 22
    420834350 Central Gear 15 Teeth. Formula Deluxe 500. Formula Deluxe 600.
    Central Gear 15 Teeth. Formula Deluxe 500. Formula Deluxe 600.
  • 23
    420818664 Crankshaft (PTO side). Formula Deluxe 500. Formula Deluxe 600.
    Crankshaft (PTO side). Formula Deluxe 500. Formula Deluxe 600.
  • 24
    420818693 Crankshaft (MAG side). Formula Deluxe 500. Formula Deluxe 600.
    Crankshaft (MAG side). Formula Deluxe 500. Formula Deluxe 600.
  • 25
    420888463 Rod Repair Kit (MAG side). Formula Deluxe 500.
    Rod Repair Kit (MAG side). Formula Deluxe 500.
  • 420888753 Rod Repair Kit (MAG side). Formula Deluxe 600.
    Rod Repair Kit (MAG side). Formula Deluxe 600.
  • 420888464 Rod Repair Kit (PTO side). Formula Deluxe 500.
    Rod Repair Kit (PTO side). Formula Deluxe 500.
  • 420888754 Rod Repair Kit (PTO side). Formula Deluxe 600.
    Rod Repair Kit (PTO side). Formula Deluxe 600.
  • 26
    293800060 Loctite 243, 10 ml. Formula Deluxe 500. Formula Deluxe 600.
    Loctite 243, 10 ml. Formula Deluxe 500. Formula Deluxe 600.
  • 27
    293800023 Loctite 767, Antiseize Lubricant, 454 g. Formula Deluxe 500. Formula Deluxe 600.
    Loctite 767, Antiseize Lubricant, 454 g. Formula Deluxe 500. Formula Deluxe 600.
  • 28
    413711400 Loctite 648, 10 ml. Formula Deluxe 500. Formula Deluxe 600.
    Loctite 648, 10 ml. Formula Deluxe 500. Formula Deluxe 600.
  • 29
    413802900 Injection Oil (12 x 1 Liter). Formula Deluxe 500. Formula Deluxe 600.
    Injection Oil (12 x 1 Liter). Formula Deluxe 500. Formula Deluxe 600.
  • 30
    420899271 Petamo Grease, GHY133N, 400 g. Formula Deluxe 500. Formula Deluxe 600.
    Petamo Grease, GHY133N, 400 g. Formula Deluxe 500. Formula Deluxe 600.
  • 31
    293550021 Isoflex Grease, 45 g. Formula Deluxe 500. Formula Deluxe 600.
    Isoflex Grease, 45 g. Formula Deluxe 500. Formula Deluxe 600.
