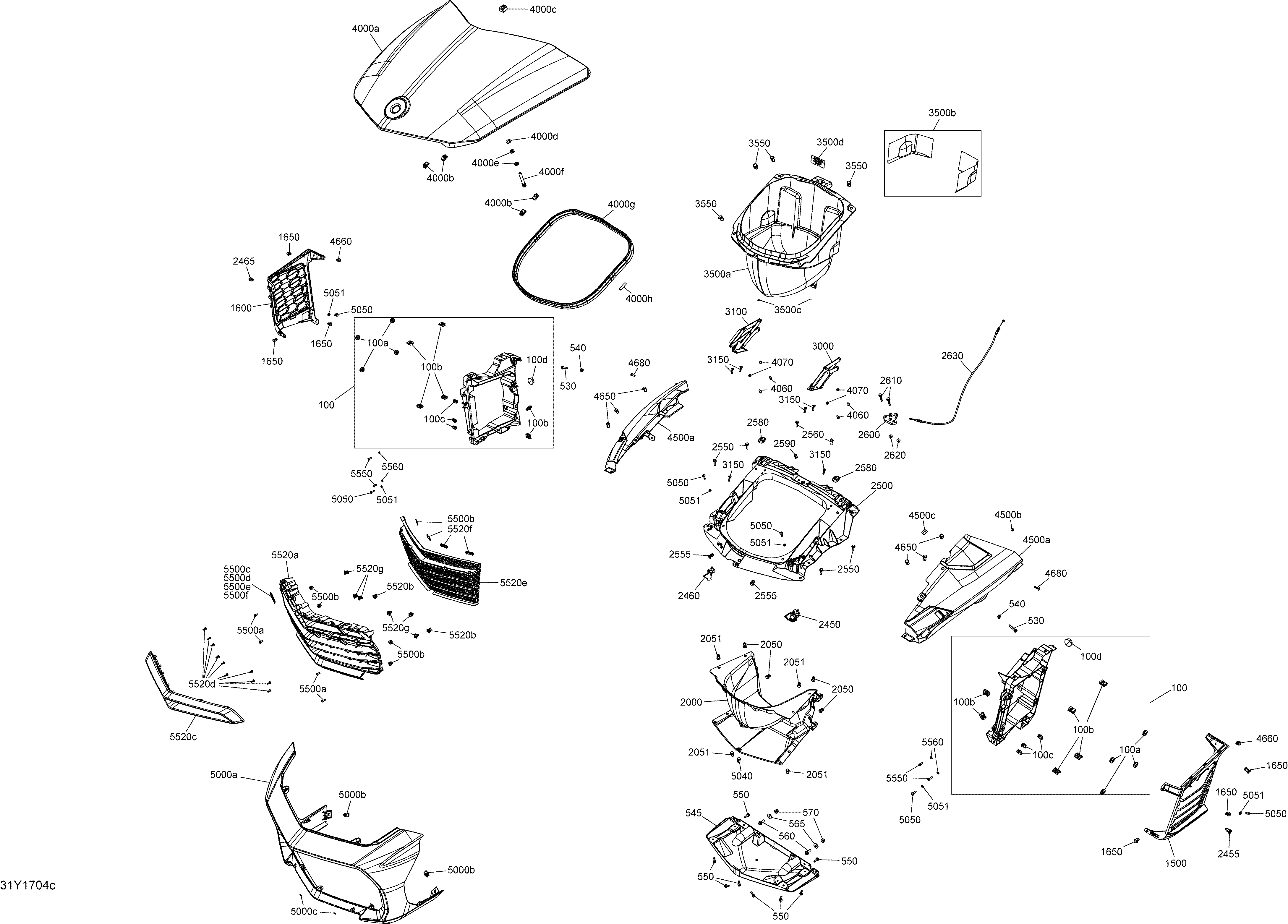

09- Body And Accessories - Front Storage - All Models для BRP F3 - 2017
-
№АртикулНазвание
-
100>100d708200437 LH Breakaway Lateral Tower Leg. Includes 100 to 100dLH Breakaway Lateral Tower Leg. Includes 100 to 100d
-
100>100d708200438 RH Breakaway Lateral Tower Leg. Includes 100 to 100dRH Breakaway Lateral Tower Leg. Includes 100 to 100d
-
100a293720053 GrommetGrommet
-
100b250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
100c250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
100d414916600 Nylon CapNylon Cap
-
530207663054 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
540233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
545708200405 Front Skid PlateFront Skid Plate
-
550207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
560207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
565234082430 Flat Washer M8Flat Washer M8
-
570233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1500708200406 LH Front Lateral VentLH Front Lateral Vent
-
1600708200407 RH Front Lateral VentRH Front Lateral Vent
-
1650293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2000708200362 Front Air Duct ModuleFront Air Duct Module
-
2050293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2051293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2450708200493 LH Front Union LinkLH Front Union Link
-
2455293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2460708200494 RH Front Union LinkRH Front Union Link
-
2465293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2500708200446 Sub-Frame Type StructureSub-Frame Type Structure
-
2550207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2555293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2560210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2580705000321 Oval WasherOval Washer
-
2590219400242 SpringSpring
-
2600705007379 LatchLatch
-
2610207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
2620233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2630517305742 Hood CableHood Cable
-
3000708200673 LH Hood HingeLH Hood Hinge
-
3100708200674 RH Hood HingeRH Hood Hinge
-
3150250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
3500a708200403 Storage BinStorage Bin
-
3500b708200490 Heat Shield SheetHeat Shield Sheet
-
3500c705006633 StopperStopper
-
3500d704905122 Load DecalLoad Decal
-
3500e293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4000a708200379 Steel Black Hood. Package STDSteel Black Hood. Package STD
-
4000a708200472 Pur Magnesium Hood. MagnesiumPur Magnesium Hood. Magnesium
-
4000a708200541 Hood. Red. Manufactured Date Before Aug 1rst 2016Hood. Red. Manufactured Date Before Aug 1rst 2016
-
4000a708200797 Hood. Red. Manufactured Date Aug 1rst 2016 And UpHood. Red. Manufactured Date Aug 1rst 2016 And Up
-
4000a708200544 Hood. Monolith BlackHood. Monolith Black
-
4000a708200667 Oxford Blue Hood. Oxford BlueOxford Blue Hood. Oxford Blue
-
4000a708200668 Circuit Yellow Hood. Circuit YellowCircuit Yellow Hood. Circuit Yellow
-
4000a708200677 Hood Vegas White Pearl. WhiteHood Vegas White Pearl. White
-
4000b250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4000c269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
4000d234081410 Flat Washer 8 mmFlat Washer 8 mm
-
4000e232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
4000f705002223 LugLug
-
4000g293250047 Neoprene SealNeoprene Seal
-
4000h515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
4060250000578 Torx Truss Screw M5 X 16Torx Truss Screw M5 X 16
-
4070234051670 Flat Washer M5Flat Washer M5
-
4500a708200450 LH Steel Black Vent Front Panel. Package STDLH Steel Black Vent Front Panel. Package STD
-
4500a708200475 LH Pur Magnesium Vent Front Panel. MagnesiumLH Pur Magnesium Vent Front Panel. Magnesium
-
4500a708200556 Lh Vent Panel. Red. Manufactured Date Before Aug 1rst 2016Lh Vent Panel. Red. Manufactured Date Before Aug 1rst 2016
-
4500a708200798 Lh Vent Panel. Red. Manufactured Date Aug 1rst 2016 And UpLh Vent Panel. Red. Manufactured Date Aug 1rst 2016 And Up
-
4500a708200558 Lh Vent Panel. Monolith BlackLh Vent Panel. Monolith Black
-
4500a708200669 Oxford Blue Lh Vent Panel. Oxford BlueOxford Blue Lh Vent Panel. Oxford Blue
-
4500a708200670 Circuit Yellow Lh Vent Panel. Circuit YellowCircuit Yellow Lh Vent Panel. Circuit Yellow
-
4500a708200679 Lh Vent Fairing White Vegas Pearl. WhiteLh Vent Fairing White Vegas Pearl. White
-
4500a708200451 RH Steel Black Vent Front Panel. Package STDRH Steel Black Vent Front Panel. Package STD
-
4500a708200478 RH Pur Magnesium Vent Front Panel. MagnesiumRH Pur Magnesium Vent Front Panel. Magnesium
-
4500a708200557 Rh Vent Panel. Red. Manufactured Date Before Aug 1rst 2016Rh Vent Panel. Red. Manufactured Date Before Aug 1rst 2016
-
4500a708200799 Rh Vent Panel. Red. Manufactured Date Aug 1rst 2016 And UpRh Vent Panel. Red. Manufactured Date Aug 1rst 2016 And Up
-
4500a708200559 Rh Vent Panel. Monolith BlackRh Vent Panel. Monolith Black
-
4500a708200671 Oxford Blue RH Vent Panel. Oxford BlueOxford Blue RH Vent Panel. Oxford Blue
-
4500a708200672 Circuit Yellow RH Vent Panel. Circuit YellowCircuit Yellow RH Vent Panel. Circuit Yellow
-
4500a708200680 Rh Vent Fairing Vegas White Pearl. WhiteRh Vent Fairing Vegas White Pearl. White
-
4500b705006634 Polyurethane StopperPolyurethane Stopper
-
4500c293830143 Rubber PadRubber Pad
-
4650293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4660293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4680250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
5000a708200665 Oxford Blue Front Fascia. Oxford BlueOxford Blue Front Fascia. Oxford Blue
-
5000a708200666 Circuit Yellow Front Fascia. Circuit YellowCircuit Yellow Front Fascia. Circuit Yellow
-
5000a708200691 Vegas White Front Fascia. WhiteVegas White Front Fascia. White
-
5000a708200693 Monolith Black Front Fascia. Monolith BlackMonolith Black Front Fascia. Monolith Black
-
5000a708200695 Magnesium Front Fascia. MagnesiumMagnesium Front Fascia. Magnesium
-
5000a708200697 Red Front Fascia. Red. Manufactured Date Before Aug 1rst 2016Red Front Fascia. Red. Manufactured Date Before Aug 1rst 2016
-
5000a708200800 Red Front Fascia. Red. Manufactured Date Aug 1rst 2016 And UpRed Front Fascia. Red. Manufactured Date Aug 1rst 2016 And Up
-
5000b250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5000c705006633 StopperStopper
-
5000a708200400 Steel Black Front Fascia. Package STDSteel Black Front Fascia. Package STD
-
5040293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5050250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
5051234051670 Flat Washer M5Flat Washer M5
-
5500>5500f219400595 SS Grill Kit. Circuit Yellow. Includes 5500 to 5500fSS Grill Kit. Circuit Yellow. Includes 5500 to 5500f
-
5500a705004838 Flat Clip. Circuit YellowFlat Clip. Circuit Yellow
-
5500b250000732 Torx Screw Nylon. Circuit YellowTorx Screw Nylon. Circuit Yellow
-
5500c704905314 Domed Y Logo. Circuit YellowDomed Y Logo. Circuit Yellow
-
5500d704905259 Logo S. Circuit YellowLogo S. Circuit Yellow
-
5500e704905201 Domed T Logo. Circuit YellowDomed T Logo. Circuit Yellow
-
5500f704905128 Domed Limited Logo. Circuit YellowDomed Limited Logo. Circuit Yellow
-
5510a708200443 Front Radiator Grill. Package STDFront Radiator Grill. Package STD
-
5510b708200393 Front Deflector Grill. Package STDFront Deflector Grill. Package STD
-
5510c705004838 Flat Clip. Package STDFlat Clip. Package STD
-
5510d517302785 Clip. Package STDClip. Package STD
-
5520a708200404 Front GrillFront Grill
-
5520b517302785 ClipClip
-
5520c708200468 Front Mouth. Package T Monolith BlackFront Mouth. Package T Monolith Black
-
5520c708200533 Hyper Silver Front Grill Trim. Package T RedHyper Silver Front Grill Trim. Package T Red
-
5520c708200533 Hyper Silver Front Grill Trim. Package T MagnesiumHyper Silver Front Grill Trim. Package T Magnesium
-
5520c708200533 Hyper Silver Front Grill Trim. Package T WhiteHyper Silver Front Grill Trim. Package T White
-
5520c708200392 Bright Chrome Front Grill Trim. Package LTDBright Chrome Front Grill Trim. Package LTD
-
5520c708200468 Front Mouth. Package S Monolith BlackFront Mouth. Package S Monolith Black
-
5520c708200533 Hyper Silver Front Grill Trim. Oxford BlueHyper Silver Front Grill Trim. Oxford Blue
-
5520c708200533 Hyper Silver Front Grill Trim. Package S MagnesiumHyper Silver Front Grill Trim. Package S Magnesium
-
5520d250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
5520e708200393 Front Deflector GrillFront Deflector Grill
-
5520f705004838 Flat ClipFlat Clip
-
5520g517302785 ClipClip
-
5550250000578 Torx Truss Screw M5 X 16. Package STDTorx Truss Screw M5 X 16. Package STD
-
5550250000578 Torx Truss Screw M5 X 16. Package S MagnesiumTorx Truss Screw M5 X 16. Package S Magnesium
-
5550250000578 Torx Truss Screw M5 X 16. Package S Monolith BlackTorx Truss Screw M5 X 16. Package S Monolith Black
-
5550250000578 Torx Truss Screw M5 X 16. Oxford BlueTorx Truss Screw M5 X 16. Oxford Blue
-
5550250000578 Torx Truss Screw M5 X 16. Package LTDTorx Truss Screw M5 X 16. Package LTD
-
5550250000578 Torx Truss Screw M5 X 16. Package TTorx Truss Screw M5 X 16. Package T
-
5560234051670 Flat Washer M5Flat Washer M5
