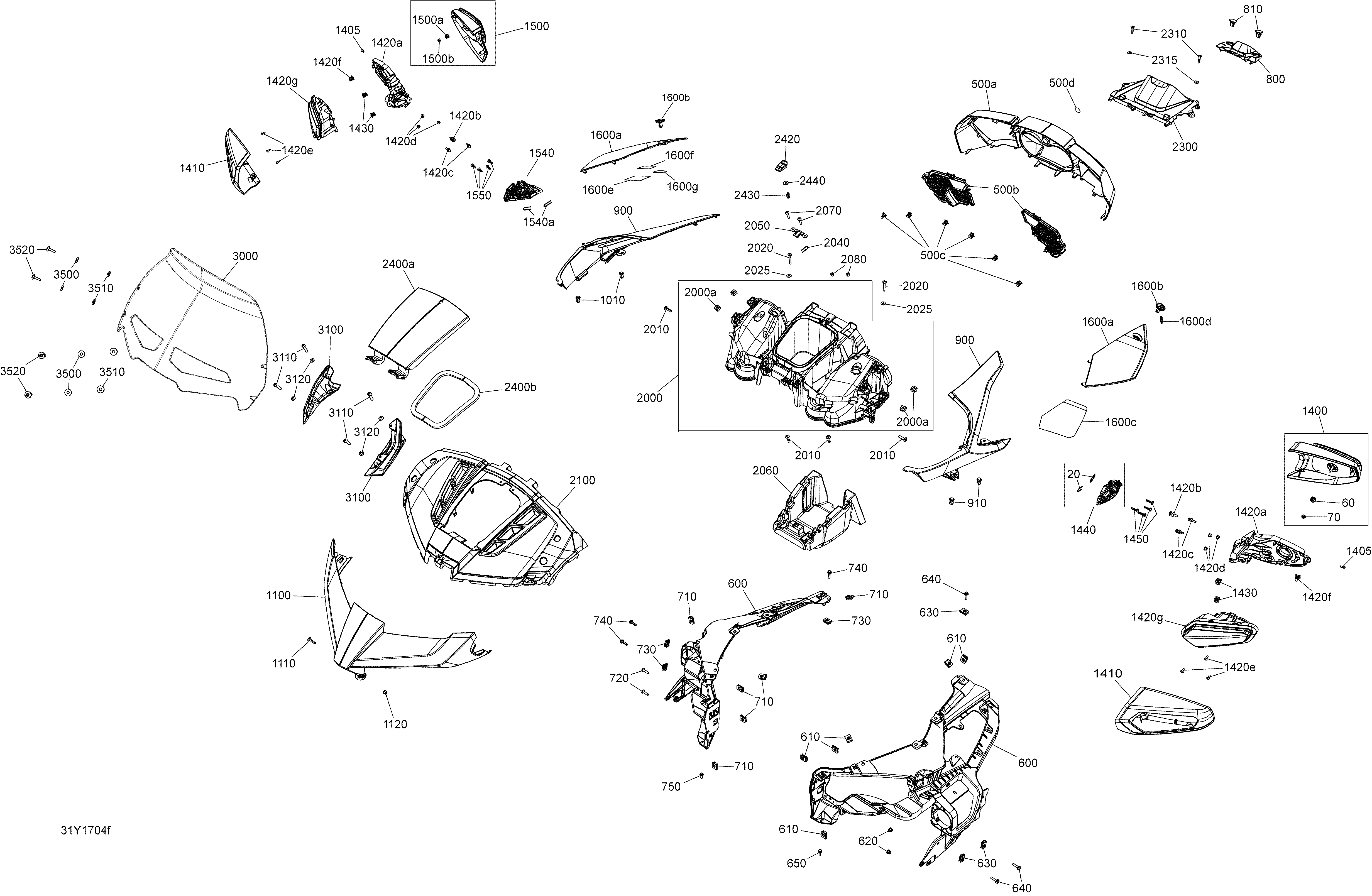

09- Body And Accessories - Console - Package T-LTD для BRP F3 - 2017
-
№АртикулНазвание
-
20705006661 SpringSpring
-
60705010625 SpringSpring
-
70232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
500a708400126 Caqrbon Black DashboardCaqrbon Black Dashboard
-
500b708400094 LH GrillLH Grill
-
500b708400095 RH GrillRH Grill
-
500c517302785 ClipClip
-
500d516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
600708400170 LH Consol SuppLH Consol Supp
-
600708400171 Rh Consol SuppRh Consol Supp
-
610250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
620233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
630250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
640250000793 SCREW-HEX.FLANGE DIN.6921 NYLON PATSCREW-HEX.FLANGE DIN.6921 NYLON PAT
-
650210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
710250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
720250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
730250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
740250000793 SCREW-HEX.FLANGE DIN.6921 NYLON PATSCREW-HEX.FLANGE DIN.6921 NYLON PAT
-
750210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
800708400205 Switch BezelSwitch Bezel
-
810708400046 Cap. Package TCap. Package T
-
810708400046 CapCap
-
900708400066 Lh Consol Fair. Package TLh Consol Fair. Package T
-
900708400177 Lh Consol Fair. Package LTD WhiteLh Consol Fair. Package LTD White
-
900708400179 Lh Consol Fair. Package LTD Red. Manufactured Date Before Aug 1rst 2016Lh Consol Fair. Package LTD Red. Manufactured Date Before Aug 1rst 2016
-
900708400066 Lh Consol Fair. Package LTD Red. Manufactured Date Aug 1rst 2016 And UpLh Consol Fair. Package LTD Red. Manufactured Date Aug 1rst 2016 And Up
-
900708400180 Lh Consol Fair. Package LTD MagnesiumLh Consol Fair. Package LTD Magnesium
-
900708400068 Rh Consol Fair. Package TRh Consol Fair. Package T
-
900708400181 Rh Consol Fair. Package LTD WhiteRh Consol Fair. Package LTD White
-
900708400183 Rh Consol Fair. Package LTD Red. Manufactured Date Before Aug 1rst 2016Rh Consol Fair. Package LTD Red. Manufactured Date Before Aug 1rst 2016
-
900708400068 Rh Consol Fair. Package LTD Red. Manufactured Date Aug 1rst 2016 And UpRh Consol Fair. Package LTD Red. Manufactured Date Aug 1rst 2016 And Up
-
900708400184 Rh Consol Fair. Package LTD MagnesiumRh Consol Fair. Package LTD Magnesium
-
910293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1010293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1100708400075 Nose Fairing. Package TNose Fairing. Package T
-
1100708400187 Nose Fairing. Package LTD WhiteNose Fairing. Package LTD White
-
1100708400189 Nose Fairing. Package LTD Red. Manufactured Date Before Aug 1rst 2016Nose Fairing. Package LTD Red. Manufactured Date Before Aug 1rst 2016
-
1100708400075 Nose Fairing. Package LTD Red. Manufactured Date Aug 1rst 2016 And UpNose Fairing. Package LTD Red. Manufactured Date Aug 1rst 2016 And Up
-
1100708400190 Nose Fairing. Package LTD MagnesiumNose Fairing. Package LTD Magnesium
-
1110250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
1120233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
1400708400115 Mirror ShellMirror Shell
-
1405250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1410708400113 Lh Mirror Shell. Package TLh Mirror Shell. Package T
-
1410708400191 Lh Mirror Cover Vegas White Pearl. Package LTD WhiteLh Mirror Cover Vegas White Pearl. Package LTD White
-
1410708400193 Lh Mirror Cover Intense Red Pearl. Package LTD Red. Manufactured Date Before Aug 1rst 2016Lh Mirror Cover Intense Red Pearl. Package LTD Red. Manufactured Date Before Aug 1rst 2016
-
1410708400113 Lh Mirror Shell. Package LTD Red. Manufactured Date Aug 1rst 2016 And UpLh Mirror Shell. Package LTD Red. Manufactured Date Aug 1rst 2016 And Up
-
1410708400194 Lh Mirror Cover Pure Magnesium Meta. Package LTD MagnesiumLh Mirror Cover Pure Magnesium Meta. Package LTD Magnesium
-
1410708400116 Rh Mirror Shell. Package TRh Mirror Shell. Package T
-
1410708400195 Rh Mirror Cover Vegas White Pearl. Package LTD WhiteRh Mirror Cover Vegas White Pearl. Package LTD White
-
1410708400197 Rh Mirror Cover Intense Red Pearl. Package LTD Red. Manufactured Date Before Aug 1rst 2016Rh Mirror Cover Intense Red Pearl. Package LTD Red. Manufactured Date Before Aug 1rst 2016
-
1410708400116 Rh Mirror Shell. Package LTD Red. Manufactured Date Aug 1rst 2016 And UpRh Mirror Shell. Package LTD Red. Manufactured Date Aug 1rst 2016 And Up
-
1410708400198 Rh Mirror Cover Pure Magnesium Meta. Package LTD MagnesiumRh Mirror Cover Pure Magnesium Meta. Package LTD Magnesium
-
1420a708400224 LH Mirror SupportLH Mirror Support
-
1420a708400225 RH Mirror SupportRH Mirror Support
-
1420b705006733 Flat Head Stud M5Flat Head Stud M5
-
1420c705006734 Round Head Stud M5Round Head Stud M5
-
1420d233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
1420e250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1420f517302785 ClipClip
-
1420g710001510 LH Front Flasher UnitLH Front Flasher Unit
-
1420g710001511 RH Front Flasher UnitRH Front Flasher Unit
-
1430517302785 ClipClip
-
1440705008211 LH Plate Support Ass'yLH Plate Support Ass'y
-
1450250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1500>1500b708400118 Mirror Shell. Includes 1500 to 1500bMirror Shell. Includes 1500 to 1500b
-
1500a705010625 SpringSpring
-
1500b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
1540>1540a705008210 RH Plate Support Ass'y. Includes 1540 to 1540aRH Plate Support Ass'y. Includes 1540 to 1540a
-
1540a705006661 SpringSpring
-
1550250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1600a708400026 LH Steel Black Access Cover. Package TLH Steel Black Access Cover. Package T
-
1600a708400256 Lh Acces Panel. Package LTD RedLh Acces Panel. Package LTD Red
-
1600a708400168 Lh Acces Panel. Package LTD MagnesiumLh Acces Panel. Package LTD Magnesium
-
1600a708400210 Lh Acces Panel Vegas White Pearl. Package LTD WhiteLh Acces Panel Vegas White Pearl. Package LTD White
-
1600a708400027 RH Steel Black Access Cover. Package TRH Steel Black Access Cover. Package T
-
1600a708400257 Rh Acces Panel. Package LTD RedRh Acces Panel. Package LTD Red
-
1600a708400169 Rh Acces Panel. Package LTD MagnesiumRh Acces Panel. Package LTD Magnesium
-
1600a708400211 Rh Acces Panel Vegas White Pearl. Package LTD WhiteRh Acces Panel Vegas White Pearl. Package LTD White
-
1600b708400065 Cover Latch Quater TurnCover Latch Quater Turn
-
1600c704905464 Warning DecalWarning Decal
-
1600d704904673 Card LOGOCard LOGO
-
1600e704904924 Caution Decal, Oil LevelCaution Decal, Oil Level
-
1600f704903119 Warning Decal, Liquide De FreinWarning Decal, Liquide De Frein
-
1600g704904812 Decal, XPSDecal, XPS
-
2000>2000b708400219 Upper Pod. Includes 2000 to 2000bUpper Pod. Includes 2000 to 2000b
-
2000a269501166 Nut Housing Ass'yNut Housing Ass'y
-
2000b232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
2010250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
2020250000732 Torx Screw NylonTorx Screw Nylon
-
2025234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
2040705006661 SpringSpring
-
2050708400215 ReceptacleReceptacle
-
2060708400103 Pod FoamPod Foam
-
2070250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
2080233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
2100708400221 Upper FairingUpper Fairing
-
2300708400108 Column FairingColumn Fairing
-
2310250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
2315234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
2400a708400217 Glove Box DoorGlove Box Door
-
2400b293250406 SealSeal
-
2420708400213 LeverLever
-
2430705011056 Stud M5Stud M5
-
2440234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
3000708400087 WindshieldWindshield
-
3100708400127 Wind. Base Lh. Package TWind. Base Lh. Package T
-
3100708400185 Wind. Base Lh. Package LTD MagnesiumWind. Base Lh. Package LTD Magnesium
-
3100708400185 Wind. Base Lh. Package LTD RedWind. Base Lh. Package LTD Red
-
3100708400185 Wind. Base Lh. Package LTD WhiteWind. Base Lh. Package LTD White
-
3110250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
3120234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
3100708400128 Wind. Base Rh. Package TWind. Base Rh. Package T
-
3100708400186 Wind. Base Rh. Package LTD MagnesiumWind. Base Rh. Package LTD Magnesium
-
3100708400186 Wind. Base Rh. Package LTD WhiteWind. Base Rh. Package LTD White
-
3100708400186 Wind. Base Rh. Package LTD RedWind. Base Rh. Package LTD Red
-
3500234052670 Inox. Flat Washer M5. Package LTDInox. Flat Washer M5. Package LTD
-
3500234052670 Inox. Flat Washer M5. Package TInox. Flat Washer M5. Package T
-
3510250200024 Rubber Washer 5 mm. Package LTDRubber Washer 5 mm. Package LTD
-
3510250200024 Rubber Washer 5 mm. Package TRubber Washer 5 mm. Package T
-
3520250000528 Torx Screw M5 X 20. Package LTDTorx Screw M5 X 20. Package LTD
-
3520250000528 Torx Screw M5 X 20. Package TTorx Screw M5 X 20. Package T
