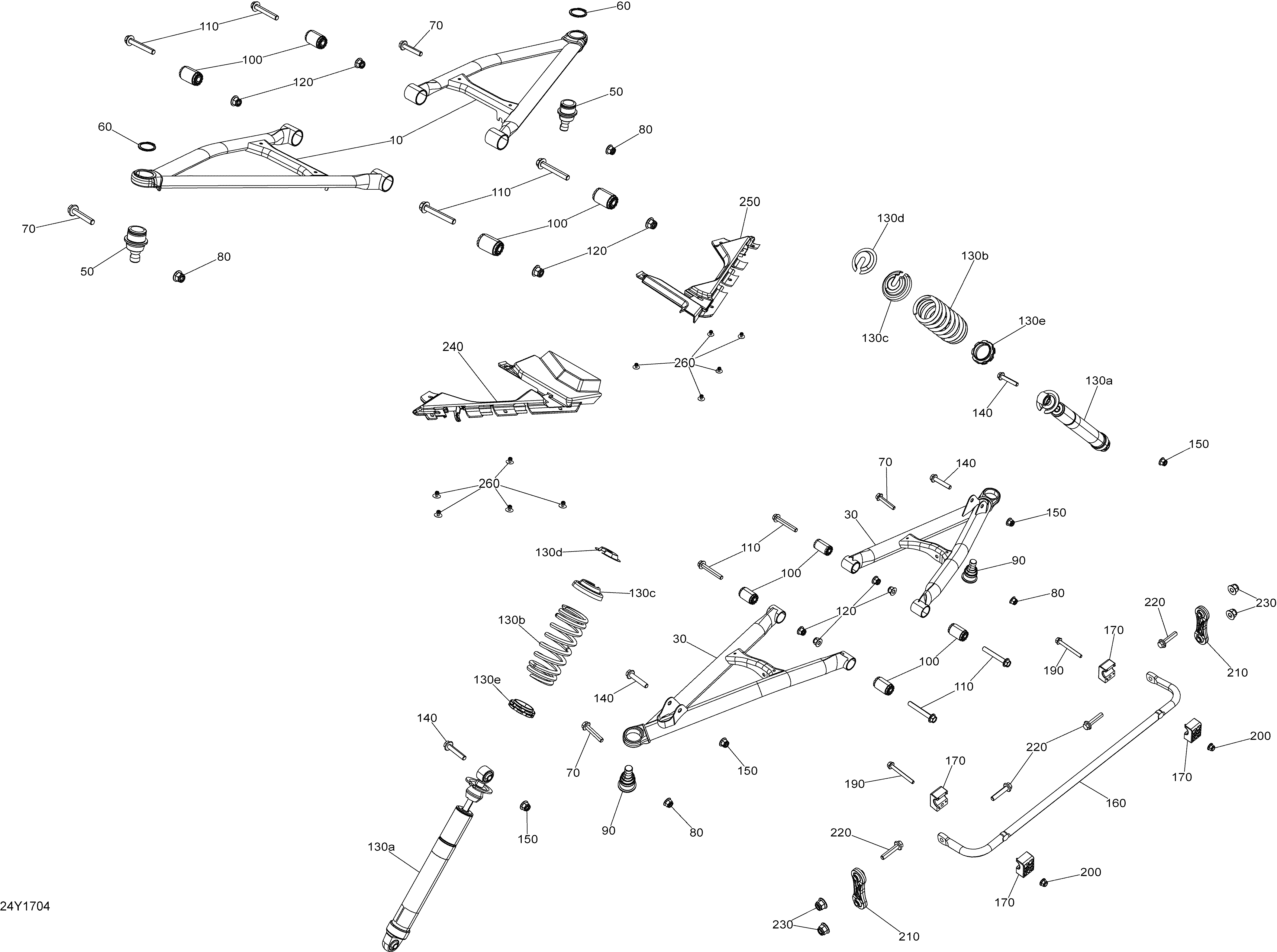

07- Suspension, Front - All Models для BRP F3 - 2017
-
№АртикулНазвание
-
10706201988 LH Upper Arm. Monolith BlackLH Upper Arm. Monolith Black
-
10706201988 LH Upper Arm. RedLH Upper Arm. Red
-
10706201988 LH Upper Arm. WhiteLH Upper Arm. White
-
10706201988 LH Upper Arm. Package T, LTD MagnesiumLH Upper Arm. Package T, LTD Magnesium
-
10706202163 LH Upper Arm. Package STDLH Upper Arm. Package STD
-
10706202637 Circuit Yellow LH Upper Arm. Circuit YellowCircuit Yellow LH Upper Arm. Circuit Yellow
-
10706202637 Circuit Yellow LH Upper Arm. Package S MagnesiumCircuit Yellow LH Upper Arm. Package S Magnesium
-
10706201989 RH Upper Arm. WhiteRH Upper Arm. White
-
10706201989 RH Upper Arm. RedRH Upper Arm. Red
-
10706201989 RH Upper Arm. Monolith BlackRH Upper Arm. Monolith Black
-
10706201989 RH Upper Arm. Package T, LTD MagnesiumRH Upper Arm. Package T, LTD Magnesium
-
10706202164 RH Upper Arm. Package STDRH Upper Arm. Package STD
-
10706202638 Circuit Yellow RH Upper Arm. Package S MagnesiumCircuit Yellow RH Upper Arm. Package S Magnesium
-
10706202638 Circuit Yellow RH Upper Arm. Circuit YellowCircuit Yellow RH Upper Arm. Circuit Yellow
-
30706201990 LH Lower Arm. WhiteLH Lower Arm. White
-
30706201990 LH Lower Arm. RedLH Lower Arm. Red
-
30706201990 LH Lower Arm. Monolith BlackLH Lower Arm. Monolith Black
-
30706201990 LH Lower Arm. Package T, LTD MagnesiumLH Lower Arm. Package T, LTD Magnesium
-
30706202165 LH Lower Arm. Package STDLH Lower Arm. Package STD
-
30706202639 Circuit Yellow LH Lower Arm. Circuit YellowCircuit Yellow LH Lower Arm. Circuit Yellow
-
30706202639 Circuit Yellow LH Lower Arm. Package S MagnesiumCircuit Yellow LH Lower Arm. Package S Magnesium
-
30706201991 RH Lower Arm. WhiteRH Lower Arm. White
-
30706201991 RH Lower Arm. Monolith BlackRH Lower Arm. Monolith Black
-
30706201991 RH Lower Arm. RedRH Lower Arm. Red
-
30706201991 RH Lower Arm. Package T, LTD MagnesiumRH Lower Arm. Package T, LTD Magnesium
-
30706202166 RH Lower Arm. Package STDRH Lower Arm. Package STD
-
30706202640 Circuit Yellow RH Lower Arm. Circuit YellowCircuit Yellow RH Lower Arm. Circuit Yellow
-
30706202640 Circuit Yellow RH Lower Arm. Package S MagnesiumCircuit Yellow RH Lower Arm. Package S Magnesium
-
50706202507 Ball JointBall Joint
-
60293370035 CirclipCirclip
-
70207605554 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
80233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
90706202508 Ball JointBall Joint
-
100706201519 Suspension Arm BushingSuspension Arm Bushing
-
110207607056 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
120233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
130a706002653 Shock. Package STDShock. Package STD
-
130a706001699 Shock. Package SShock. Package S
-
130a706001697 Shock. Package T, LTDShock. Package T, LTD
-
130b706002654 Spring. Package STDSpring. Package STD
-
130b706001771 Spring. Package SSpring. Package S
-
130b706002451 Spring. Package T, LTDSpring. Package T, LTD
-
130c706200881 Spring Stopper. Package STD T, LTDSpring Stopper. Package STD T, LTD
-
130d706200785 Cap. Package STD T, LTDCap. Package STD T, LTD
-
130e706002480 Adjuster Ass'y. Package T, LTDAdjuster Ass'y. Package T, LTD
-
140207605554 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
150233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
160706202018 Sway BarSway Bar
-
170706201429 BushingBushing
-
190250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
200233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
210706202506 Tie Rod. Man. Date Aug 1rst 2016 And UpTie Rod. Man. Date Aug 1rst 2016 And Up
-
210706202390 Tie Rod. Man. Date Before Aug 1rst 2016Tie Rod. Man. Date Before Aug 1rst 2016
-
220207684054 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
230233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
240706201842 Cable CapCable Cap
-
250706201843 RH Cable CapRH Cable Cap
-
260293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
