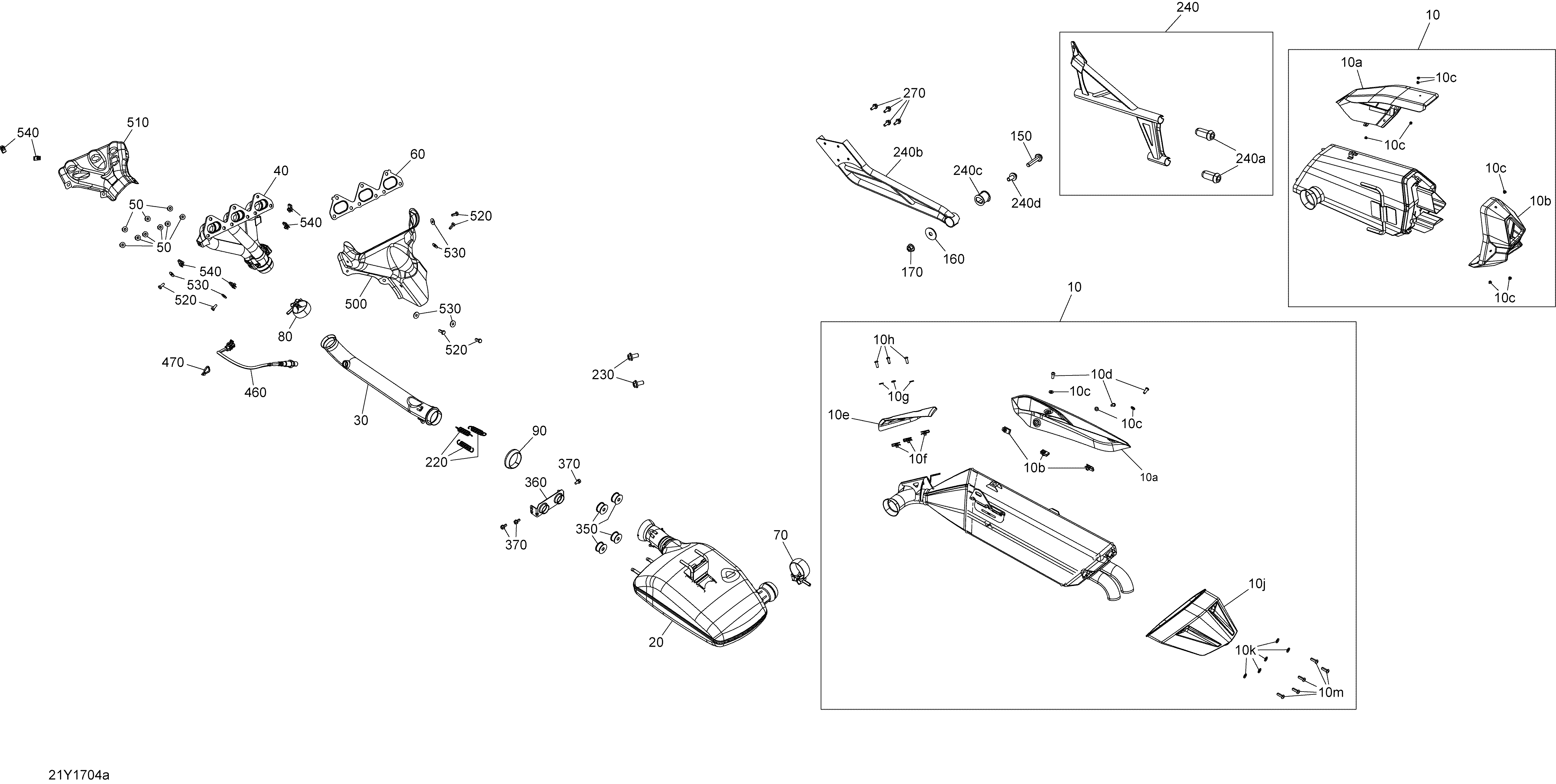

01- Exhaust System - Package STD-S для BRP F3 - 2017
-
№АртикулНазвание
-
10>10c707601559 Carbon Black Muffler Ass'y. Package S Except Australia. Includes 10 to 10cCarbon Black Muffler Ass'y. Package S Except Australia. Includes 10 to 10c
-
10a707601560 Carbon Black Heat Shield. Package S Except AustraliaCarbon Black Heat Shield. Package S Except Australia
-
10b707601561 Carbon Black Muffler End Cap. Package S Except AustraliaCarbon Black Muffler End Cap. Package S Except Australia
-
10c293150219 Rivet-Pop 5/32. Package S Except AustraliaRivet-Pop 5/32. Package S Except Australia
-
10>10m707601559 Muffler Assy. Package STD Except AustraliaMuffler Assy. Package STD Except Australia
-
10>10m707601732 Muffler Assy. Package STD, S Australia. Includes 10 to 10mMuffler Assy. Package STD, S Australia. Includes 10 to 10m
-
10a707601381 Carbon Black Heat Shield. Package STD, S AustraliaCarbon Black Heat Shield. Package STD, S Australia
-
10b250100113 Panel Nut, M6 X 1.0. Package STD, S AustraliaPanel Nut, M6 X 1.0. Package STD, S Australia
-
10c234061670 Flat Washer 6 mm. Package STD, S AustraliaFlat Washer 6 mm. Package STD, S Australia
-
10d250000616 Socket Screw, M6 X 16. Package STD, S AustraliaSocket Screw, M6 X 16. Package STD, S Australia
-
10e707601054 Carbon Black Heat Shield. Package STD, S AustraliaCarbon Black Heat Shield. Package STD, S Australia
-
10f250100113 Panel Nut, M6 X 1.0. Package STD, S AustraliaPanel Nut, M6 X 1.0. Package STD, S Australia
-
10g234061670 Flat Washer 6 mm. Package STD, S AustraliaFlat Washer 6 mm. Package STD, S Australia
-
10h250000616 Socket Screw, M6 X 16. Package STD, S AustraliaSocket Screw, M6 X 16. Package STD, S Australia
-
10j707601048 Carbon Black Muffler End Cap. Package STD, S AustraliaCarbon Black Muffler End Cap. Package STD, S Australia
-
10k234061670 Flat Washer 6 mm. Package STD, S AustraliaFlat Washer 6 mm. Package STD, S Australia
-
10m250000616 Socket Screw, M6 X 16. Package STD, S AustraliaSocket Screw, M6 X 16. Package STD, S Australia
-
20707601881 Primary Muffler. Man. Date Before Aug 1rst 2016Primary Muffler. Man. Date Before Aug 1rst 2016
-
20707602033 Primary Muffler. North America Man. Date Aug 1rst 2016 And UpPrimary Muffler. North America Man. Date Aug 1rst 2016 And Up
-
20707602187 Primary Muffler. Except North America Man. Date Aug 1rst 2016 And UpPrimary Muffler. Except North America Man. Date Aug 1rst 2016 And Up
-
30707601605 Exhaust Tuned PipeExhaust Tuned Pipe
-
40707600937 Exhaust Manifold. Man. Date Before Aug 1rst 2016Exhaust Manifold. Man. Date Before Aug 1rst 2016
-
40707601922 Exhaust Manifold. North America Man. Date Aug 1rst 2016 And UpExhaust Manifold. North America Man. Date Aug 1rst 2016 And Up
-
40707601922 Exhaust Manifold. Except North America Man. Date Aug 1rst 2016 And UpExhaust Manifold. Except North America Man. Date Aug 1rst 2016 And Up
-
50233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
60707601857 Exhaust Seal. Man. Date Before Aug 1rst 2016Exhaust Seal. Man. Date Before Aug 1rst 2016
-
60707601985 Exhaust Seal. Man. Date Aug 1rst 2016 And UpExhaust Seal. Man. Date Aug 1rst 2016 And Up
-
70707600980 Exhaust ClampExhaust Clamp
-
80707600980 Exhaust ClampExhaust Clamp
-
90514054174 Exhaust Gasket. Man. Date Aug 1rst 2016 And UpExhaust Gasket. Man. Date Aug 1rst 2016 And Up
-
90514054174 Exhaust Gasket. Man. Date Before Aug 1rst 2016Exhaust Gasket. Man. Date Before Aug 1rst 2016
-
150244006060 Socket Screw M10 X 60. Package STD Except AustraliaSocket Screw M10 X 60. Package STD Except Australia
-
150244006060 Socket Screw M10 X 60. Package STD, S AustraliaSocket Screw M10 X 60. Package STD, S Australia
-
160506150000 Washer 10 mm. Package STD Except AustraliaWasher 10 mm. Package STD Except Australia
-
160506150000 Washer 10 mm. Package STD, S AustraliaWasher 10 mm. Package STD, S Australia
-
170233101600 Hex. Flanged Nut M10. Package STD Except AustraliaHex. Flanged Nut M10. Package STD Except Australia
-
170233101600 Hex. Flanged Nut M10. Package STD, S AustraliaHex. Flanged Nut M10. Package STD, S Australia
-
220415107100 Spring. Man. Date Aug 1rst 2016 And UpSpring. Man. Date Aug 1rst 2016 And Up
-
220415107100 Spring. Man. Date Before Aug 1rst 2016Spring. Man. Date Before Aug 1rst 2016
-
230207502044 Flanged Hex Screw M10 X 20. Package S Except AustraliaFlanged Hex Screw M10 X 20. Package S Except Australia
-
230207502044 Flanged Hex Screw M10 X 20. Package STD Except AustraliaFlanged Hex Screw M10 X 20. Package STD Except Australia
-
240>240a707601550 Muffler Support. Package STD, S Except Australia. Includes 240 to 240aMuffler Support. Package STD, S Except Australia. Includes 240 to 240a
-
240b707601683 Muffler Support. Package STD, S AustraliaMuffler Support. Package STD, S Australia
-
240c293830162 Anti-Vibration Rubber. Package STD, S AustraliaAnti-Vibration Rubber. Package STD, S Australia
-
240d707601657 Black Bushing. Package STD, S AustraliaBlack Bushing. Package STD, S Australia
-
270207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Package STD Except AustraliaHex. Flanged Screw M6 X 16, Scotch Grip. Package STD Except Australia
-
270207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Package STD, S AustraliaHex. Flanged Screw M6 X 16, Scotch Grip. Package STD, S Australia
-
350707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
360707600661 Front BracketFront Bracket
-
370210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
460707600872 Oxygen SensorOxygen Sensor
-
470414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
500707601028 Inner Heat DeflectorInner Heat Deflector
-
510707601504 External Heat DeflectorExternal Heat Deflector
-
520207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
530234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
540250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
