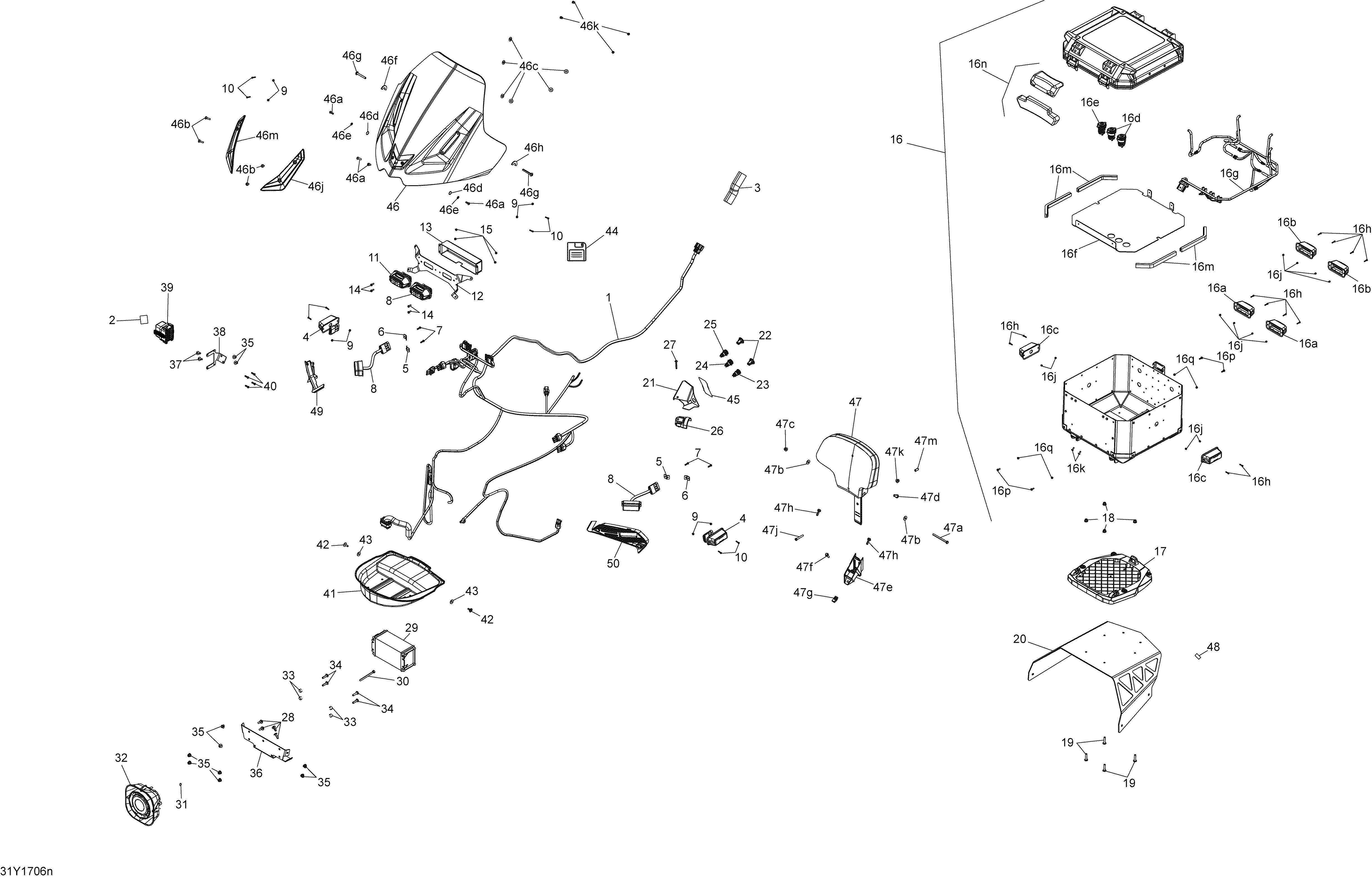

09- Accessories - Police Package - North America для BRP F3 - 2017
-
№АртикулНазвание
-
1710005311 Secondary HarnessSecondary Harness
-
2710005157 Decal Fuse RelayDecal Fuse Relay
-
3293740058 Wire CoverWire Cover
-
4710005303 Blue Flasher Ass'yBlue Flasher Ass'y
-
5705010372 Mounting Plate RHMounting Plate RH
-
6705010464 Mounting Plate LHMounting Plate LH
-
7250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
8710005302 Red Flasher Ass'yRed Flasher Ass'y
-
9232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
10710004811 Socket Screw M3 X 14Socket Screw M3 X 14
-
11710005298 Blue Flasher Ass'yBlue Flasher Ass'y
-
12705010363 Console Flasher BracketConsole Flasher Bracket
-
13705010364 Harness CoverHarness Cover
-
14208641260 Phillips Screw M4 X 12Phillips Screw M4 X 12
-
15232541434 Elastic Stop NutElastic Stop Nut
-
16>16q710004833 Storage Box Ass'y. Incl 16 to 16qStorage Box Ass'y. Incl 16 to 16q
-
16a710005302 Red Flasher Ass'yRed Flasher Ass'y
-
16b710005298 Blue Flasher Ass'yBlue Flasher Ass'y
-
16c710005300 Red Flasher Ass'yRed Flasher Ass'y
-
16d710001248 Outlet DCOutlet DC
-
16e710004421 USB OutletUSB Outlet
-
16f710004813 Mounting PlateMounting Plate
-
16g710005312 Storage Box HarnessStorage Box Harness
-
16h710004811 Socket Screw M3 X 14Socket Screw M3 X 14
-
16j232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
16k250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
16m293200093 Neoprene SealNeoprene Seal
-
16n708200683 Pad KitPad Kit
-
16p208641260 Phillips Screw M4 X 12Phillips Screw M4 X 12
-
16q232541434 Elastic Stop NutElastic Stop Nut
-
17705010369 Storage Box SupportStorage Box Support
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
20705010370 Formed SupportFormed Support
-
21710005688 Switch SupportSwitch Support
-
22708400046 CapCap
-
23710005681 Flasher SwitchFlasher Switch
-
24710005682 Sirene Switch WailSirene Switch Wail
-
25710005683 Sirene Switch YelpSirene Switch Yelp
-
26709401578 GPS ClampGPS Clamp
-
27710005752 Bolt ?-20 X 5/16Bolt ?-20 X 5/16
-
28250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
29710004828 Siren AmplifierSiren Amplifier
-
30291004284 Thread Screw Filet 1/4-20 X 1 1/4Thread Screw Filet 1/4-20 X 1 1/4
-
31211200025 Lock Washer 1/4''Lock Washer 1/4''
-
32710004839 SirenSiren
-
33277001929 BushingBushing
-
34250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
35233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
36710004838 Amplifier SupportAmplifier Support
-
37250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
38710004844 Fuse Box SupportFuse Box Support
-
39710001046 Fuse, 25 AMPFuse, 25 AMP
-
40250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
41705011050 Double BottomDouble Bottom
-
42293150186 Pop Rivet 3/16Pop Rivet 3/16
-
43517124300 WasherWasher
-
44710005113 Speed ProgSpeed Prog
-
45704906438 Decal Police PackDecal Police Pack
-
46>46m219400746 Windshield Kit. Incl 46 to 46mWindshield Kit. Incl 46 to 46m
-
46a250000652 Socket Screw M5 X 16Socket Screw M5 X 16
-
46b250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
46c250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
46d293370112 Retaining RingRetaining Ring
-
46e234051670 Flat Washer M5Flat Washer M5
-
46f293830176 Rubber WasherRubber Washer
-
46g250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
46h293830176 Rubber WasherRubber Washer
-
46j705004961 LH Windshield MouldingLH Windshield Moulding
-
46k250100152 Cap Nut M5Cap Nut M5
-
46m705004962 RH Windshield MouldingRH Windshield Moulding
-
47>47m219400498 Backrest Kit. Incl 47 to 47mBackrest Kit. Incl 47 to 47m
-
47a207068060 Hex. Screw M6 x 80Hex. Screw M6 x 80
-
47b234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
47c233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
47d250000885 Head Screw M8 x 20Head Screw M8 x 20
-
47e708001678 Backrest SliderBackrest Slider
-
47f210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
47g250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
47h207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
47j205464060 Socket Screw M6 X 40Socket Screw M6 X 40
-
47k233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
47m515176141 CapCap
-
48704906368 Decal Maximum LoadDecal Maximum Load
-
49705010312 Intake Grill RHIntake Grill RH
-
50705010366 Intake Grill LHIntake Grill LH
