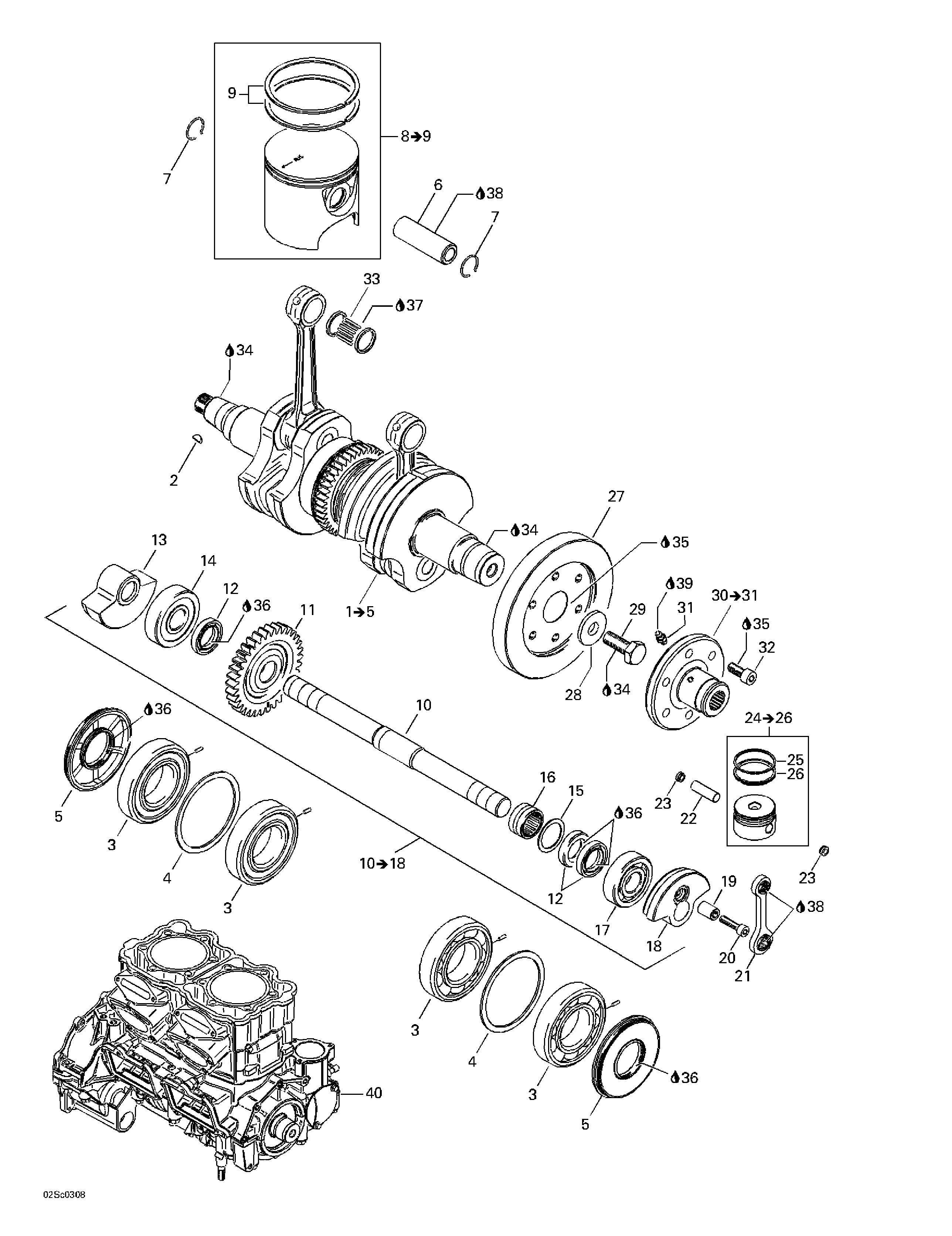

01- Crankshaft And Pistons для BRP RX DI, 6122/6123 - 2003

№

Артикул

Название
1

420887767 Crankshaft Ass'y. Includes 1 - 5.

Crankshaft Ass'y. Includes 1 - 5.

0 ₽
2

420246055 Woodruff Key

Woodruff Key

230 ₽
3

420432271 Ball Bearing 6208 Ass'y

Ball Bearing 6208 Ass'y

7 270 ₽
4

420926190 Washer

Washer

3 990 ₽
5

420931731 Oil Seal

Oil Seal

2 110 ₽
6

420916398 Piston Pin

Piston Pin

1 860 ₽
7

420845465 Circlip

Circlip

180 ₽
8

420889045 Piston with 2 Rings, 87.88 mm. Includes 8 - 9.

Piston with 2 Rings, 87.88 mm. Includes 8 - 9.

16 820 ₽
420889046 Piston Oversize, 88.13 mm

Piston Oversize, 88.13 mm

18 460 ₽
9

420815267 Rectangular Ring

Rectangular Ring

4 800 ₽
420815268 Rectangular Ring (Oversize)

Rectangular Ring (Oversize)

4 800 ₽
10

420837445 Shaft Balance Ass'y. Includes 10 - 18.

Shaft Balance Ass'y. Includes 10 - 18.

0 ₽
14

420932097 Ball Bearing 6304

Ball Bearing 6304

2 970 ₽
15

420927192 Washer

Washer

280 ₽
16

420232555 Needle Bearing

Needle Bearing

2 320 ₽
17

420932096 Ball Bearing 6304

Ball Bearing 6304

0 ₽
18

420818955 Mass Balance

Mass Balance

10 760 ₽
19

420921460 Compressor Pin

Compressor Pin

5 720 ₽
20

420640690 Socket Head Screw M6 x 25

Socket Head Screw M6 x 25

660 ₽
21

420917505 Conrod Ass'y

Conrod Ass'y

6 960 ₽
22

420916430 Piston Pin 9 x 30

Piston Pin 9 x 30

2 980 ₽
23

420847940 Distance Bushing

Distance Bushing

1 430 ₽
24

420888550 Piston Ass'y 38.95 mm. Includes 24 - 26.

Piston Ass'y 38.95 mm. Includes 24 - 26.

6 780 ₽
25

420215970 Rectangular Ring

Rectangular Ring

1 820 ₽
26

420215960 Oil Scraper Ring

Oil Scraper Ring

1 570 ₽
27

420958082 Coupling (Silver)

Coupling (Silver)

0 ₽
28

420827782 Washer

Washer

1 330 ₽
29

420640120 Hex. Screw M12 x 30

Hex. Screw M12 x 30

1 330 ₽
30

420958122 Coupling Flange Ass'y (Silver). Includes 30 - 31.

Coupling Flange Ass'y (Silver). Includes 30 - 31.

12 560 ₽
31

420499113 Grease Fitting

Grease Fitting

870 ₽
32

205082060 Socket Head Screw M8 x 20

Socket Head Screw M8 x 20

330 ₽
33

420832552 Needle Bearing

Needle Bearing

0 ₽
34

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
35

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
36

413707000 Molykote 111

Molykote 111

7 550 ₽
37

413802900 Injection Oil (12 x 1 Liter)

Injection Oil (12 x 1 Liter)

1 050 ₽
39

293550010 Synthetic Grease, 400 g

Synthetic Grease, 400 g

14 600 ₽
40

420094706 Short Block Ass'y (947 DI)

Short Block Ass'y (947 DI)

0 ₽
41

420888134 Engine Gasket Set (Not Shown)

Engine Gasket Set (Not Shown)

30 590 ₽
42

420888139 Cylinder Gasket Set (Not Shown)

Cylinder Gasket Set (Not Shown)

20 030 ₽
