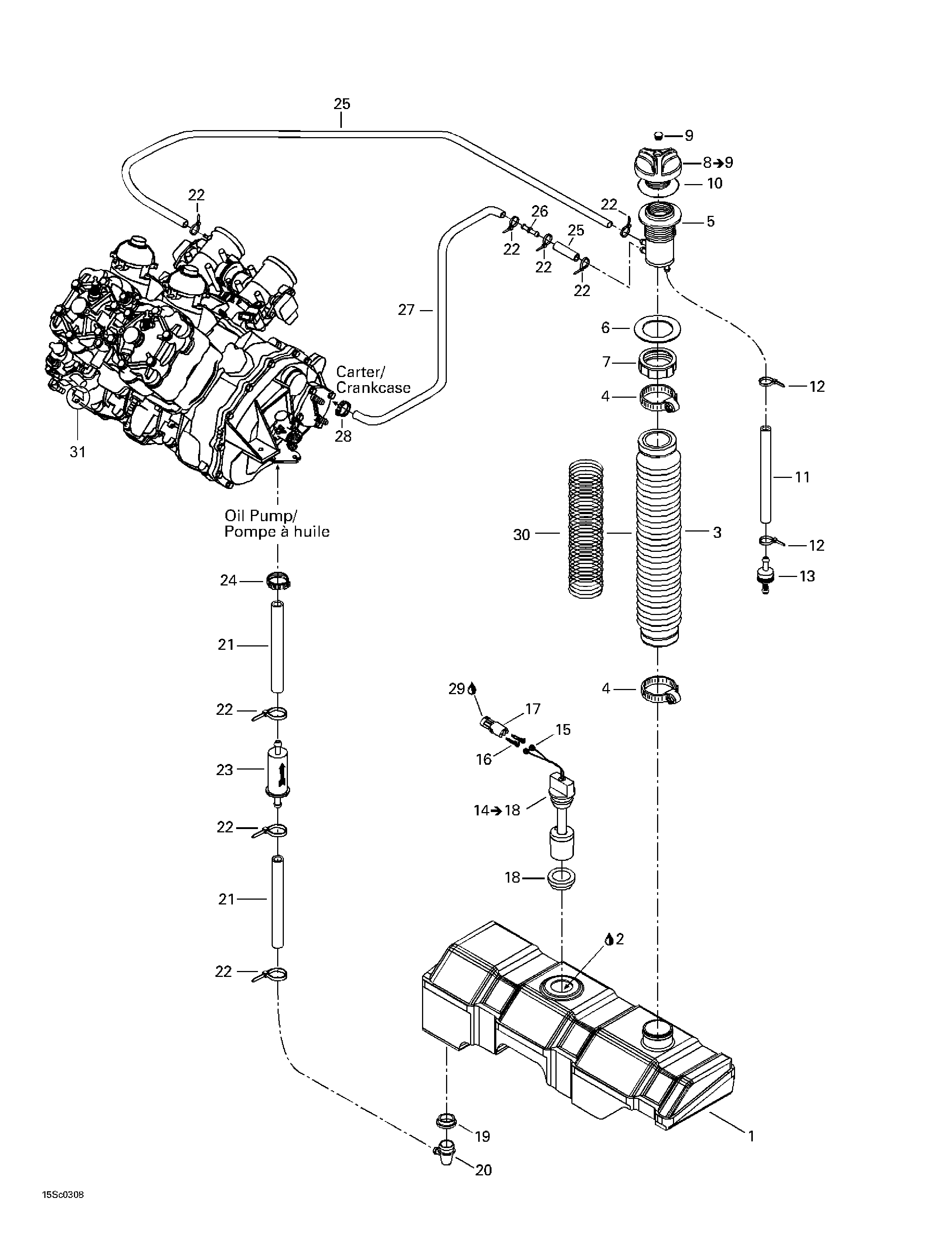

02- Oil Injection System для BRP RX DI, 6122/6123 - 2003

  • №
    Артикул
    Название
  • 1
    275000238 Oil Tank
    Oil Tank
  • 2
    293600045 Synthetic Injection Oil. Formula XP-S II (12 RX DI 6122..
    Synthetic Injection Oil. Formula XP-S II (12 RX DI 6122..
  • 293600046 Synthetic Injection Oil. Formula XP-S II (3 RX DI 6122..
    Synthetic Injection Oil. Formula XP-S II (3 RX DI 6122..
  • 293600047 Synthetic Injection Oil. Formula XP-S II RX DI 6122..
    Synthetic Injection Oil. Formula XP-S II RX DI 6122..
  • 3
    275000188 Filler Hose
    Filler Hose
  • 4
    293650035 Tridon Gear Clamp
    Tridon Gear Clamp
  • 5
    275000234 Filler Neck
    Filler Neck
  • 6
    293250029 Gasket
    Gasket
  • 7
    211100012 Filler Neck Nut
    Filler Neck Nut
  • 8
    275000221 Oil Cap. Includes 8 - 9.
    Oil Cap. Includes 8 - 9.
  • 9
    293000076 Snap Cap
    Snap Cap
  • 10
    293250075 Gasket
    Gasket
  • 11
    270000374 Hose 4.3 mm (Meter)
    Hose 4.3 mm (Meter)
  • 12
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 13
    275500398 Check Valve
    Check Valve
  • 14
    278001515 Oil Level Sensor Ass'y. Includes 14 - 18.
    Oil Level Sensor Ass'y. Includes 14 - 18.
  • 15
    278000218 Wire Seal (Packard)
    Wire Seal (Packard)
  • 16
    278000222 Male Terminal (Packard)
    Male Terminal (Packard)
  • 17
    278000217 Female Housing Tab (2 Circuits)
    Female Housing Tab (2 Circuits)
  • 18
    293720008 Grommet
    Grommet
  • 19
    293720008 Grommet
    Grommet
  • 20
    293710070 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
  • 21
    275000007 Hose 8 mm (Meter)
    Hose 8 mm (Meter)
  • 22
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 23
    275000051 Oil Filter
    Oil Filter
  • 24
    293650042 Oetiker Clamp
    Oetiker Clamp
  • 25
    270000374 Hose 4.3 mm (Meter)
    Hose 4.3 mm (Meter)
  • 26
    275500444 Straight Fitting
    Straight Fitting
  • 27
    270000469 Hose 3 mm (Meter)
    Hose 3 mm (Meter)
  • 28
    293650105 Oetiker Clamp
    Oetiker Clamp
  • 29
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 30
    270000750 Spring
    Spring
  • 31
    420924652 Elbow Fitting 90 Deg
    Elbow Fitting 90 Deg
