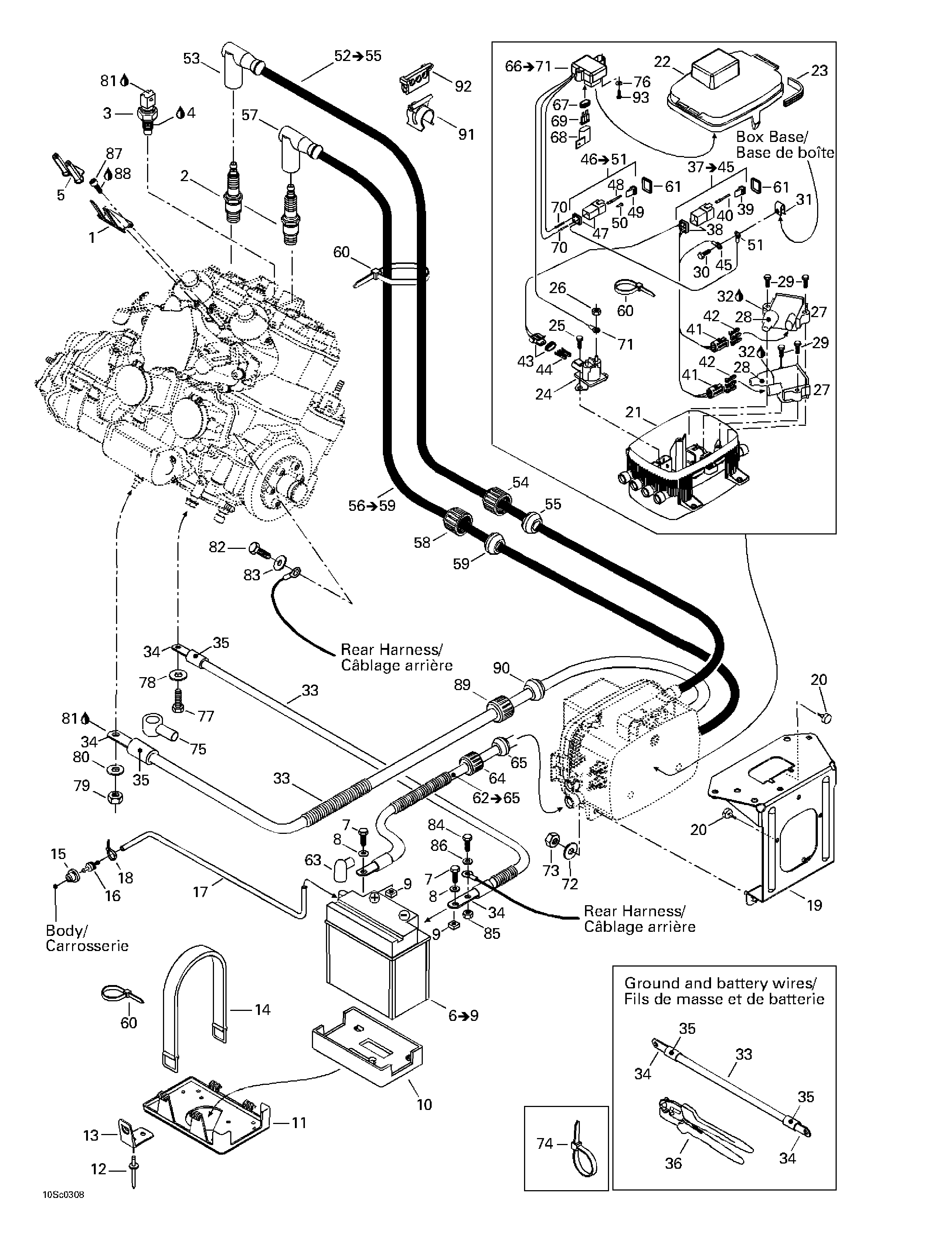

10- Rear Electrical Box для BRP RX DI, 6122/6123 - 2003

  • №
    Артикул
    Название
  • 1
    278001662 Ground Plate
    Ground Plate
  • 2
    278001650 Spark Plug (NGK ZFR-4F-11)
    Spark Plug (NGK ZFR-4F-11)
  • 3
    278001016 Temperature Sensor
    Temperature Sensor
  • 4
    293800038 Loctite 518, 50 ml
    Loctite 518, 50 ml
  • 5
    278001512 Insulator
    Insulator
  • 6
    278001756 Battery. Includes 6 - 9.
    Battery. Includes 6 - 9.
  • 7
    211000045 Hex. Screw
    Hex. Screw
  • 8
    211200018 Flat Washer 6 mm
    Flat Washer 6 mm
  • 9
    211100022 Nut M6
    Nut M6
  • 10
    278001746 Battery Lower Pad
    Battery Lower Pad
  • 11
    278001430 Battery Support
    Battery Support
  • 12
    293150037 Rivet Avdel 3/16''
    Rivet Avdel 3/16''
  • 13
    293850075 Strap Clip 90 Deg
    Strap Clip 90 Deg
  • 14
    293850021 Strap
    Strap
  • 15
    293720029 Grommet
    Grommet
  • 16
    275500499 Check Valve
    Check Valve
  • 17
    275500446 Vent Hose 6 mm (Meter)
    Vent Hose 6 mm (Meter)
  • 18
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 19
    278001615 Electric Box Support
    Electric Box Support
  • 20
    293830005 Rubber Plug
    Rubber Plug
  • 21
    278001761 Electric box base
    Electric box base
  • 22
    278001785 Electric Box Cover
    Electric Box Cover
  • 23
    278001173 Gasket
    Gasket
  • 24
    278001802 Starter Relay
    Starter Relay
  • 25
    210261040 Hex. Forming Screw M6 x 10
    Hex. Forming Screw M6 x 10
  • 26
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 27
    278001451 Ignition Coil
    Ignition Coil
  • 28
    278001470 Protector Cap
    Protector Cap
  • 29
    209463840 Hex. Tapping Screw
    Hex. Tapping Screw
  • 30
    207361660 Hex. Screw M6 x 16 (Scotch Grip)
    Hex. Screw M6 x 16 (Scotch Grip)
  • 31
    250100029 Panel Nut ''U'' Type M6
    Panel Nut ''U'' Type M6
  • 32
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 33
    278001091 Starter Positive Cable, Red. Includes 34,35,75,89,90
    Starter Positive Cable, Red. Includes 34,35,75,89,90
  • 278001462 Ground Cable, Black. Includes 34,35
    Ground Cable, Black. Includes 34,35
  • 37
    278001458 Electric Box Harness. Includes 37 - 45.
    Electric Box Harness. Includes 37 - 45.
  • 38
    270000137 Female Housing (6 Circuits)
    Female Housing (6 Circuits)
  • 39
    278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 40
    278000631 Male Terminal
    Male Terminal
  • 41
    278001467 Male Housing (3 Circuits)
    Male Housing (3 Circuits)
  • 42
    278001468 Female Terminal
    Female Terminal
  • 43
    278001113 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 44
    278001114 Female Terminal
    Female Terminal
  • 45
    278001392 Open Barrel
    Open Barrel
  • 46
    278001811 Electric Box Harness. Includes 46 - 51.
    Electric Box Harness. Includes 46 - 51.
  • 47
    278001477 Female Housing (4 Circuits)
    Female Housing (4 Circuits)
  • 48
    515175261 Male Terminal
    Male Terminal
  • 49
    278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 50
    293000052 Sealing Cap
    Sealing Cap
  • 51
    278001392 Open Barrel
    Open Barrel
  • 52
    278001454 Coil Cable (MAG). Includes 52 - 55.
    Coil Cable (MAG). Includes 52 - 55.
  • 54
    278000100 Electric Wire Cap
    Electric Wire Cap
  • 55
    278000682 Grommet (Gray)
    Grommet (Gray)
  • 56
    278001521 Coil Cable (PTO). Includes 56 - 59.
    Coil Cable (PTO). Includes 56 - 59.
  • 58
    278000100 Electric Wire Cap
    Electric Wire Cap
  • 59
    278000682 Grommet (Gray)
    Grommet (Gray)
  • 60
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 61
    293200055 Gasket
    Gasket
  • 62
    278001522 Battery Cable (Red). Includes 62 - 65.
    Battery Cable (Red). Includes 62 - 65.
  • 63
    278000020 Battery Wire Cap (Red)
    Battery Wire Cap (Red)
  • 64
    278000100 Electrical Box Cap
    Electrical Box Cap
  • 65
    278000098 Grommet (Black)
    Grommet (Black)
  • 66
    278001784 Cut-off relay. Includes 66 - 71.
    Cut-off relay. Includes 66 - 71.
  • 67
    278000805 Cushion
    Cushion
  • 69
    410917200 Fuse (30 Amperes)
    Fuse (30 Amperes)
  • 70
    515175568 Male Terminal
    Male Terminal
  • 71
    278001392 Open Barrel
    Open Barrel
  • 72
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 73
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 74
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 75
    278000020 Battery Cap
    Battery Cap
  • 76
    234051600 Flat Washer 5 mm
    Flat Washer 5 mm
  • 77
    207302060 Hex. Screw M10 x 20 (Scotch Grip)
    Hex. Screw M10 x 20 (Scotch Grip)
  • 78
    234001600 Flat Washer 10 mm
    Flat Washer 10 mm
  • 79
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 80
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 81
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 82
    207361260 Hex. Screw M6 x 12 (Scotch Grip)
    Hex. Screw M6 x 12 (Scotch Grip)
  • 83
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 84
    207161260 Hex. Screw M6 x 12
    Hex. Screw M6 x 12
  • 85
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 86
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 87
    205062560 Socket Screw M6 x 25
    Socket Screw M6 x 25
  • 88
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 89
    278000100 Electrical Box Cap
    Electrical Box Cap
  • 90
    278000098 Grommet (Black)
    Grommet (Black)
  • 91
    278000559 Collar Support
    Collar Support
  • 92
    278001597 Wire Support
    Wire Support
  • 93
    243041660 Hex. Screw M4.8 x 16
    Hex. Screw M4.8 x 16
