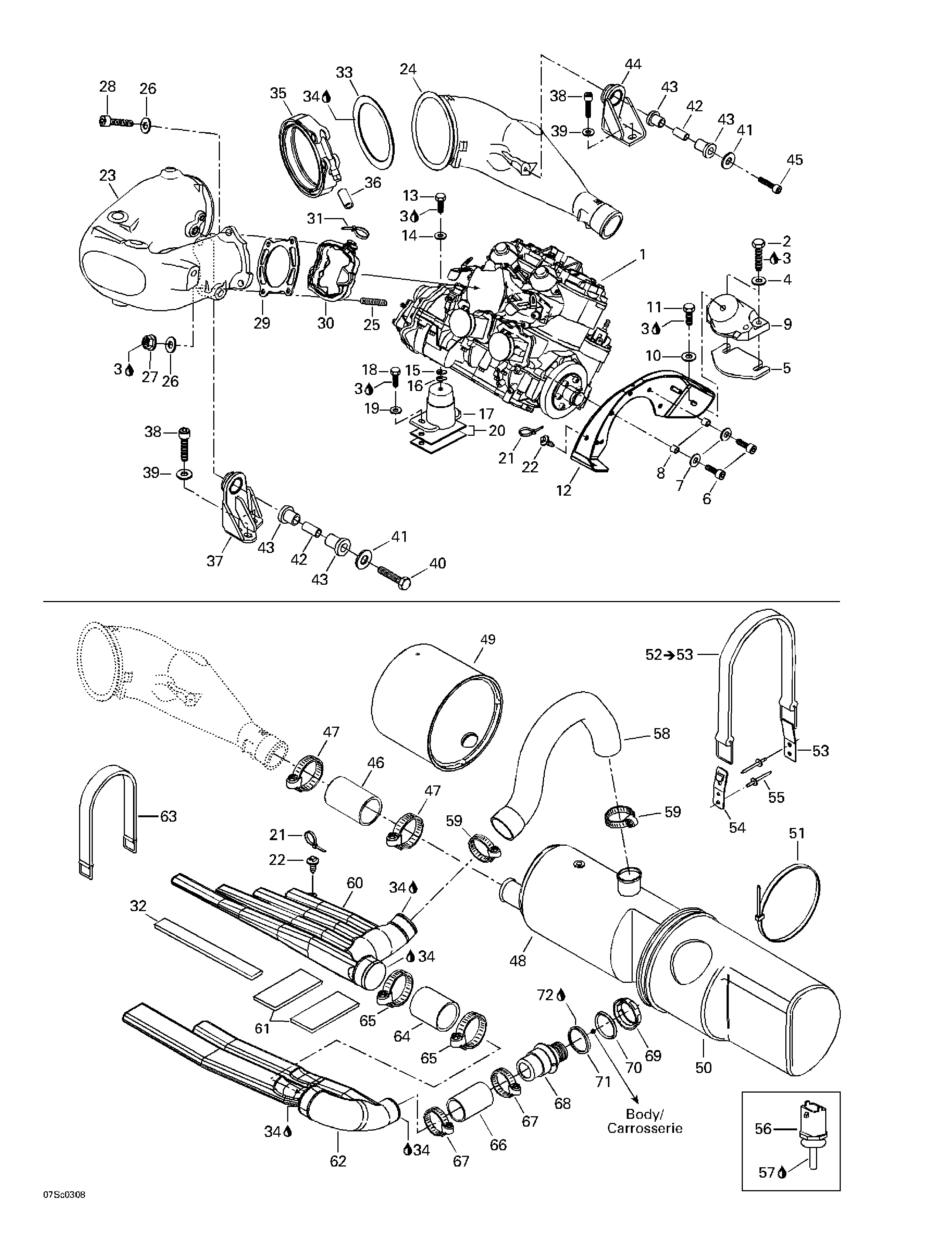

01- Engine Support And Muffler для BRP RX DI, 6122/6123 - 2003
-
№АртикулНазвание
-
1270000536 Rotax Engine 947 DI (Silver)Rotax Engine 947 DI (Silver)
-
2207184060 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4234081600 Flat Washer 8 mmFlat Washer 8 mm
-
5270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
6205582560 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
7234081600 Flat Washer 8 mmFlat Washer 8 mm
-
8270000453 BushingBushing
-
9270000421 Rubber MountRubber Mount
-
10234082600 Flat Washer 8 mmFlat Washer 8 mm
-
11207181660 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
12270000515 Engine SupportEngine Support
-
13207182060 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
14234082600 Flat Washer 8 mmFlat Washer 8 mm
-
15270000025 Shim 1.3 mmShim 1.3 mm
-
16270000024 Shim 0.4 mmShim 0.4 mm
-
17270000422 Rubber MountRubber Mount
-
18207184060 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
19234081600 Flat Washer 8 mmFlat Washer 8 mm
-
20270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
21414115200 Tie Rap 180 mmTie Rap 180 mm
-
22293730018 Dart MountDart Mount
-
23274000927 Head Pipe Ass'yHead Pipe Ass'y
-
24274000871 Exhaust ConeExhaust Cone
-
25250300008 Stud M10 x 55Stud M10 x 55
-
26211200051 Flat WasherFlat Washer
-
27233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
28244003560 Socket Head Screw M10 x 35 (Scotch Grip)Socket Head Screw M10 x 35 (Scotch Grip)
-
29420931990 Exhaust GasketExhaust Gasket
-
30274000862 Pick-Up EnveloppePick-Up Enveloppe
-
31293750002 Tie Rap 130 mmTie Rap 130 mm
-
32274000785 Rubber PadRubber Pad
-
33274000511 Sealing RingSealing Ring
-
34293800090 Sealant, Loctite , 80 mlSealant, Loctite , 80 ml
-
35274000510 ClampClamp
-
36275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
37274000890 Pipe Support (Black)Pipe Support (Black)
-
38244083060 Socket Head Screw M8 x 30 (Scotch Grip)Socket Head Screw M8 x 30 (Scotch Grip)
-
39250200012 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
40245004060 Hex. Screw M10 x 40 (Scotch Grip)Hex. Screw M10 x 40 (Scotch Grip)
-
41234002600 Flat Washer 10 mmFlat Washer 10 mm
-
42274000861 BushingBushing
-
43293830065 Bushing RubberBushing Rubber
-
44274000777 Pipe Support (Black)Pipe Support (Black)
-
45244004060 Socket Head Screw M10 x 40 (Scotch Grip)Socket Head Screw M10 x 40 (Scotch Grip)
-
46274000896 Exhaust HoseExhaust Hose
-
47293650064 Tridon ClampTridon Clamp
-
48274000826 MufflerMuffler
-
49274000796 Muffler CoverMuffler Cover
-
50274000799 Muffler CoverMuffler Cover
-
51293750020 Tie Rap 838 mmTie Rap 838 mm
-
52293850026 Strap. Includes 52 - 53.Strap. Includes 52 - 53.
-
53293850024 Strap ClipStrap Clip
-
54293850024 Strap ClipStrap Clip
-
55293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
56278001016 Temperature SensorTemperature Sensor
-
57293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
58274000834 Exhaust HoseExhaust Hose
-
59293650107 Tridon ClampTridon Clamp
-
60274000700 LH Resonator (Upper)LH Resonator (Upper)
-
61274000752 Rubber PadRubber Pad
-
62274000701 LH Resonator (Lower)LH Resonator (Lower)
-
63293850021 Rubber StrapRubber Strap
-
64274000726 Exhaust HoseExhaust Hose
-
65204000079 Tridon Gear ClampTridon Gear Clamp
-
66274000616 Exhaust HoseExhaust Hose
-
67293650064 Tridon Gear ClampTridon Gear Clamp
-
68274000843 Exhaust OutletExhaust Outlet
-
69274000224 Nut M72Nut M72
-
70274000225 Stabiliser WasherStabiliser Washer
-
71293250041 GasketGasket
-
72296000309 Sealant Silicone, ClearSealant Silicone, Clear
