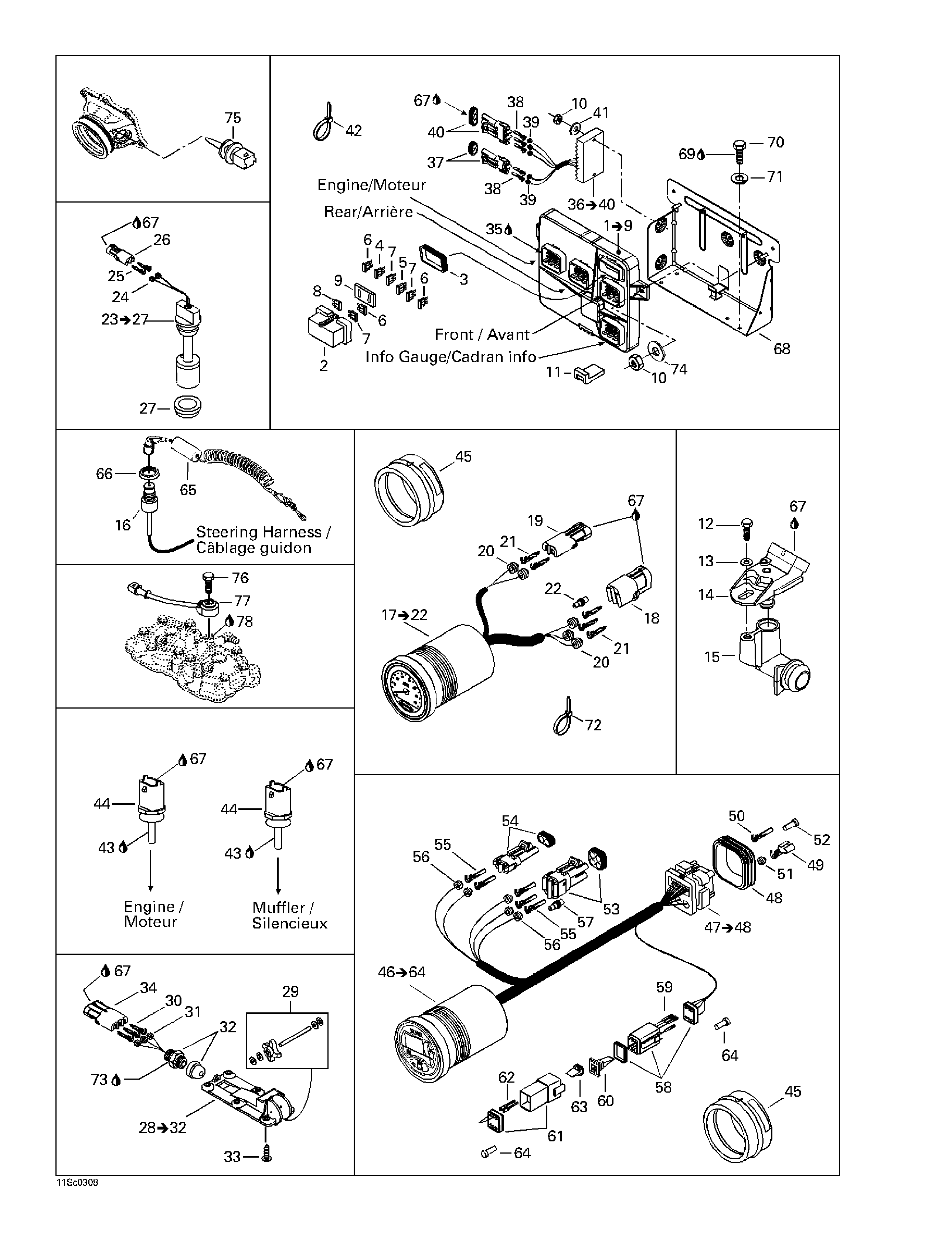

10- Electronic Module And Electrical Accessories для BRP RX DI, 6122/6123 - 2003

  • №
    Артикул
    Название
  • 1
    278001813 Electronic Module Ass'y. Includes 1 - 9.
    Electronic Module Ass'y. Includes 1 - 9.
  • 2
    278001618 Fuse Holder
    Fuse Holder
  • 3
    278001070 Seal
    Seal
  • 4
    278001442 Fuse (2 Amperes)
    Fuse (2 Amperes)
  • 5
    278000704 Fuse (7.5 Amperes)
    Fuse (7.5 Amperes)
  • 6
    278000343 Fuse (15 Amperes)
    Fuse (15 Amperes)
  • 7
    278001443 Fuse (25 Amperes)
    Fuse (25 Amperes)
  • 8
    410917200 Fuse (30 Amperes)
    Fuse (30 Amperes)
  • 9
    278001719 Support Foam
    Support Foam
  • 10
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 11
    278001166 Module Protector
    Module Protector
  • 12
    243041660 Plastite Screw M4.8 x 16
    Plastite Screw M4.8 x 16
  • 13
    211200035 Washer 6 mm
    Washer 6 mm
  • 14
    270600040 Pressure Sensor
    Pressure Sensor
  • 15
    270600019 Valve Adaptor
    Valve Adaptor
  • 16
    278001790 Safety Switch
    Safety Switch
  • 17
    278001822 Speedometer. Includes 17 - 22.
    Speedometer. Includes 17 - 22.
  • 18
    278000890 Female Housing (4 Circuits)(Packard)
    Female Housing (4 Circuits)(Packard)
  • 19
    278000217 Female Housing (2 Circuits)(Packard)
    Female Housing (2 Circuits)(Packard)
  • 20
    278001065 Wire Seal(Packard)
    Wire Seal(Packard)
  • 21
    278000222 Male Terminal (18 Gauge) (Packard)
    Male Terminal (18 Gauge) (Packard)
  • 22
    278000216 Wire Seal (Cap)(Packard)
    Wire Seal (Cap)(Packard)
  • 23
    278001515 Oil sensor. Includes 23 - 27.
    Oil sensor. Includes 23 - 27.
  • 24
    278000218 Wire Seal (16 and 18 gauge - green)
    Wire Seal (16 and 18 gauge - green)
  • 25
    278000222 Male Terminal (18 Gauge)
    Male Terminal (18 Gauge)
  • 26
    278000217 Female Housing (2 Circuits)
    Female Housing (2 Circuits)
  • 27
    293720008 Grommet
    Grommet
  • 28
    278001595 Speed Sensor. Includes 28 - 32.
    Speed Sensor. Includes 28 - 32.
  • 29
    295500108 Paddle Wheel Kit
    Paddle Wheel Kit
  • 30
    278000222 Male Terminal
    Male Terminal
  • 31
    278000218 Wire Seal
    Wire Seal
  • 32
    293710031 Electrical Connector
    Electrical Connector
  • 33
    250000020 Phillips Screw M5 x 10 (Scotch Grip)
    Phillips Screw M5 x 10 (Scotch Grip)
  • 34
    278000281 Female Housing (3 Circuits)
    Female Housing (3 Circuits)
  • 35
    293550015 Deoxit Lubricant, Spray
    Deoxit Lubricant, Spray
  • 36
    278001554 Rectifier Ass'y. Includes 36 - 40.
    Rectifier Ass'y. Includes 36 - 40.
  • 37
    278000220 Male Housing (2 Circuits)
    Male Housing (2 Circuits)
  • 38
    409007300 Female Terminal
    Female Terminal
  • 39
    278000218 Wire Seal (16-18 Gauge) (Green)
    Wire Seal (16-18 Gauge) (Green)
  • 40
    278000273 Male Housing (3 Circuits)
    Male Housing (3 Circuits)
  • 41
    234061600 Washer 6 mm
    Washer 6 mm
  • 42
    293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 43
    293800038 Loctite 518, 50 ml
    Loctite 518, 50 ml
  • 44
    278001016 Temperature Sensor
    Temperature Sensor
  • 45
    293720047 Gauge Support
    Gauge Support
  • 46
    278001825 LCD Info Gauge. Includes 46 - 64.
    LCD Info Gauge. Includes 46 - 64.
  • 47
    278000993 Male Housing (26 Circuits). Includes 47 - 48.
    Male Housing (26 Circuits). Includes 47 - 48.
  • 48
    278001307 Wire Seal
    Wire Seal
  • 49
    278000994 Female Terminal
    Female Terminal
  • 50
    278000995 Female Terminal
    Female Terminal
  • 51
    278000996 Wire Seal
    Wire Seal
  • 52
    293000070 Sealing Cap
    Sealing Cap
  • 53
    278000891 Male Housing (4 Circuits)
    Male Housing (4 Circuits)
  • 54
    278000220 Male Housing (2 Circuit)
    Male Housing (2 Circuit)
  • 55
    278000223 Female Terminal
    Female Terminal
  • 56
    278001065 Wire Seal
    Wire Seal
  • 57
    278000216 Sealing Cap
    Sealing Cap
  • 58
    278000736 Male Housing (6 Circuits)
    Male Housing (6 Circuits)
  • 59
    278000632 Female Terminal
    Female Terminal
  • 60
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 61
    270000137 Female Housing (6 Circuits)
    Female Housing (6 Circuits)
  • 62
    278000631 Male Terminal
    Male Terminal
  • 63
    278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 64
    293000052 Sealing Cap
    Sealing Cap
  • 65
    278001543 Safety Lanyard Ass'y
    Safety Lanyard Ass'y
  • 66
    278000508 Safety Switch Nut
    Safety Switch Nut
  • 67
    293550004 Dielectric Grease, 150 gr
    Dielectric Grease, 150 gr
  • 68
    278001516 Module Support
    Module Support
  • 69
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 70
    211000023 Screw Plastite
    Screw Plastite
  • 71
    211200043 Lock Washer
    Lock Washer
  • 72
    414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 73
    293800013 Loctite, Pipe Sealant, 250 ml
    Loctite, Pipe Sealant, 250 ml
  • 74
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 75
    270600000 Air Temp Sensor
    Air Temp Sensor
  • 76
    207183060 Hexagonal Screw M8 x 30
    Hexagonal Screw M8 x 30
  • 77
    270000484 Noise Sensor
    Noise Sensor
  • 78
    293800060 Loctite 243, 10 mL
    Loctite 243, 10 mL
