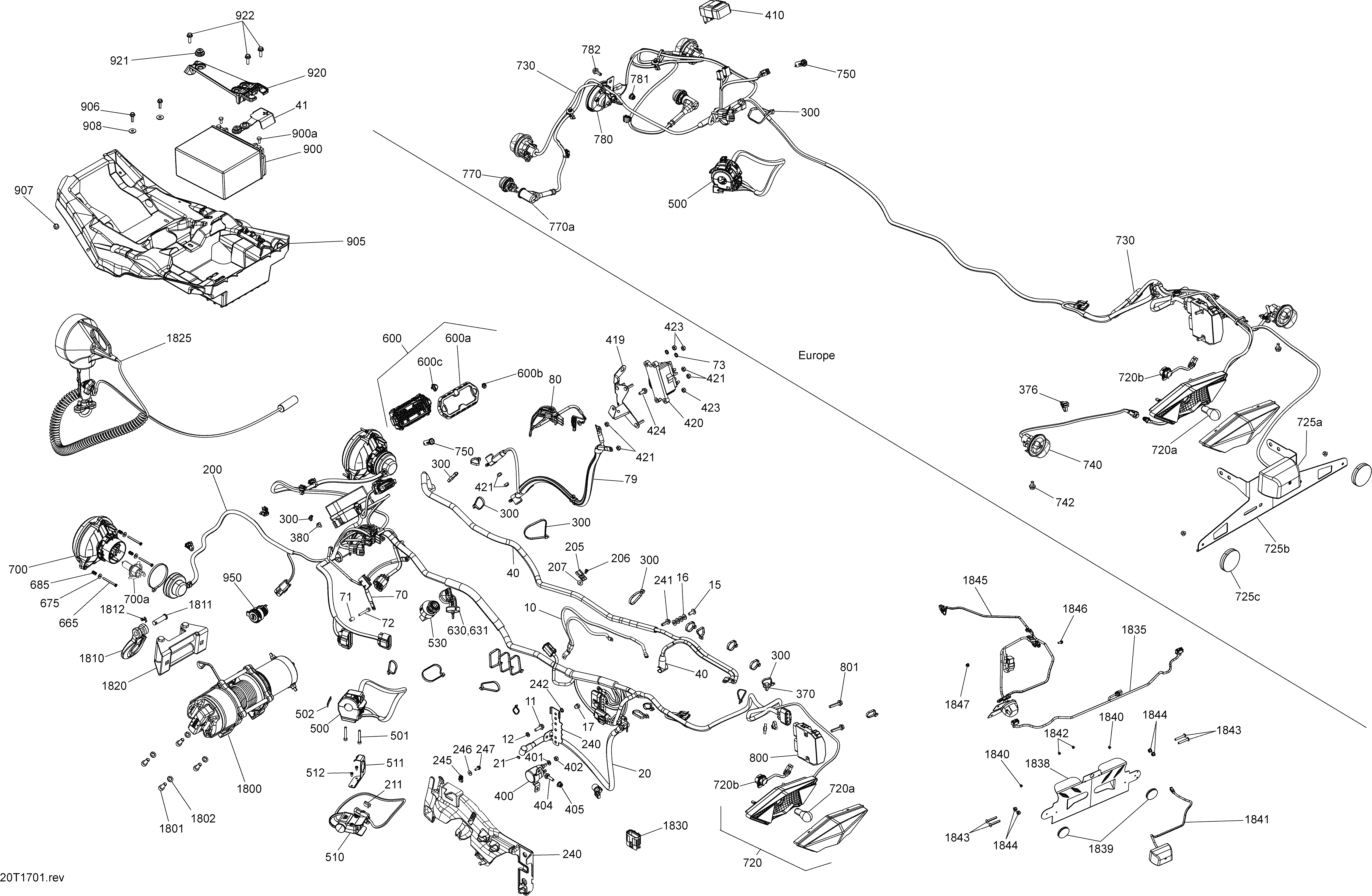

10- Electrical System - All Models для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10710004380 Ground Cable. Engine 450Ground Cable. Engine 450
-
10710004382 Ground Cable. Engine 570Ground Cable. Engine 570
-
11207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
15250000717 Torx Head Screw M6 X 16. Engine 570Torx Head Screw M6 X 16. Engine 570
-
16224061121 Flat Washer. Engine 570Flat Washer. Engine 570
-
17232361493 Domed Nut M6. Engine 570Domed Nut M6. Engine 570
-
20710004377 Positive Cable. Engine 570Positive Cable. Engine 570
-
20710004381 Positive Cable. Engine 450Positive Cable. Engine 450
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004375 Connector Ass'y. Model With WinchConnector Ass'y. Model With Winch
-
40710004376 Positive Cable. Model Without WinchPositive Cable. Model Without Winch
-
41710002569 CapCap
-
70710005163 Negative Cable. Model With WinchNegative Cable. Model With Winch
-
71293900078 Sleeve. Model With WinchSleeve. Model With Winch
-
72210264040 Hex Flanged Screw M6 X 40. Model With WinchHex Flanged Screw M6 X 40. Model With Winch
-
73234461608 External Serrated Lock Washer 6 mm. Model With WinchExternal Serrated Lock Washer 6 mm. Model With Winch
-
79710005164 Winch Cable. Model With WinchWinch Cable. Model With Winch
-
80710005246 Winch Cable. Model With WinchWinch Cable. Model With Winch
-
300414115200 Tie-Rap 180 mm. Model With WinchTie-Rap 180 mm. Model With Winch
-
200710004898 Harness Ass'y. Except Model STD North America, InterHarness Ass'y. Except Model STD North America, Inter
-
200710004957 Harness Ass'y. Model STD North America, InterHarness Ass'y. Model STD North America, Inter
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
211710000992 Clip. Model With WinchClip. Model With Winch
-
240707001280 Cable Bracket. Engine 450Cable Bracket. Engine 450
-
240710004118 Connector Bracket. Engine 570Connector Bracket. Engine 570
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
245250000048 Panel Nut M6 X 1.0. Engine 450Panel Nut M6 X 1.0. Engine 450
-
246234062410 Flat Washer 6 mm. Engine 450Flat Washer 6 mm. Engine 450
-
247207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Engine 450Hex. Flanged Screw M6 X 16, Scotch Grip. Engine 450
-
300293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
300414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
300293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
370293730040 Mount DartMount Dart
-
300293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
376293750058 Locking Tie Rap. Model EuropeLocking Tie Rap. Model Europe
-
380293730040 Mount Dart. Model XMRMount Dart. Model XMR
-
300293750041 Tie-rap 627 mmTie-rap 627 mm
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
410710003239 Flasher Unit. Model Europe, T3Flasher Unit. Model Europe, T3
-
419710004935 Module Support. Model With WinchModule Support. Model With Winch
-
420710001000 Winch Solenoid. Model With WinchWinch Solenoid. Model With Winch
-
421232561414 Elastic Stop Nut M6. Model With WinchElastic Stop Nut M6. Model With Winch
-
423232561414 Elastic Stop Nut M6. Model With WinchElastic Stop Nut M6. Model With Winch
-
424207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Model With WinchHex. Flanged Screw M6 X 16, Scotch Grip. Model With Winch
-
500710004040 Multi-Function Handle. Model Europe, T3Multi-Function Handle. Model Europe, T3
-
500710005072 Multi-Function Handle. Except Model Europe, Except T3Multi-Function Handle. Except Model Europe, Except T3
-
501205053588 Socket Head Screw M5 X 35. Except Model EuropeSocket Head Screw M5 X 35. Except Model Europe
-
502704901835 DPS Label. Model Europe, T3DPS Label. Model Europe, T3
-
510710005241 Winch Switch. Model With WinchWinch Switch. Model With Winch
-
511710004670 Black Support. Model With WinchBlack Support. Model With Winch
-
512250000153 Hex. Cap Screw 6-32 X 1/4''. Model With WinchHex. Cap Screw 6-32 X 1/4''. Model With Winch
-
530710004570 Ignition Switch. Electronic, Model Pro, T3Ignition Switch. Electronic, Model Pro, T3
-
530710005153 Ignition Switch With Keys. Except Model Pro, T3Ignition Switch With Keys. Except Model Pro, T3
-
600>600c710005087 Speedometer. Includes 600 to 600cSpeedometer. Includes 600 to 600c
-
600a710001183 Trim Ring Ass'yTrim Ring Ass'y
-
600b704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
600c715900265 ButtonButton
-
630710000817 Black-Electronic Key. Model Pro, T3Black-Electronic Key. Model Pro, T3
-
631710002183 Grey-Electronic Key. Model Pro, T3Grey-Electronic Key. Model Pro, T3
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
675517225900 Flat WasherFlat Washer
-
685517168600 SpringSpring
-
700>700a710003900 Low Beam. Includes 700 to 700aLow Beam. Includes 700 to 700a
-
700a710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
720>720b710001203 Tail Light Housing Ass'y. Except T3. Includes 720 to 720bTail Light Housing Ass'y. Except T3. Includes 720 to 720b
-
720a520000758 BulbBulb
-
720b515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
725a710002721 Licence Light. Model EuropeLicence Light. Model Europe
-
725b705007449 Plate Support. Model EuropePlate Support. Model Europe
-
725c705002408 Red Reflector. Model EuropeRed Reflector. Model Europe
-
730710004331 Wiring Harness Assembly. Model Europe, T3Wiring Harness Assembly. Model Europe, T3
-
740710002964 Flasher. Model Europe, T3Flasher. Model Europe, T3
-
742207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. Model Europe, T3Hex. Flanged Screw M6 X 12, Scotch Grip. Model Europe, T3
-
750710003909 Pilot Lamp. Model Europe, T3Pilot Lamp. Model Europe, T3
-
750710003910 Pilot Lamp Cap. Except Model EuropePilot Lamp Cap. Except Model Europe
-
770>770a710001726 Day Light. Model Europe, T3. Includes 770 to 770aDay Light. Model Europe, T3. Includes 770 to 770a
-
770a710003269 Cap Protector. Model Europe, T3Cap Protector. Model Europe, T3
-
780710004791 Horn. Model Europe, T3Horn. Model Europe, T3
-
781233261414 Hex. Flanged Elastic Nut M6. Model Europe, T3Hex. Flanged Elastic Nut M6. Model Europe, T3
-
782207661644 Hex. Flanged Screw M6 X 16. Model Europe, T3Hex. Flanged Screw M6 X 16. Model Europe, T3
-
800515177325 Voltage Regulator. Except Model STD North America, InterVoltage Regulator. Except Model STD North America, Inter
-
800710001103 Voltage Regulator. Model STD North America, InterVoltage Regulator. Model STD North America, Inter
-
801207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
900>900a410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710003990 Battery TrayBattery Tray
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
-
1800705008546 Winch. Model With WinchWinch. Model With Winch
-
1801205082044 Socket Head Screw M8 X 20. Model With WinchSocket Head Screw M8 X 20. Model With Winch
-
1802234181401 Lock Washer 8 mm. Model With WinchLock Washer 8 mm. Model With Winch
-
1810705002329 Hook. Model With WinchHook. Model With Winch
-
1811250400021 Clevis Pin. Model With WinchClevis Pin. Model With Winch
-
1812250400022 Cotter Pin. Model With WinchCotter Pin. Model With Winch
-
1820715000011 Winch Roller. Model With WinchWinch Roller. Model With Winch
-
1825710005423 Portable Headlamp. Model HunterPortable Headlamp. Model Hunter
-
1830710005347 Housing Ass'y. Model STD Europe, T3Housing Ass'y. Model STD Europe, T3
-
1835515178093 Rear Light Harness. Model T3Rear Light Harness. Model T3
-
1838708002040 License Plate Support. Model T3License Plate Support. Model T3
-
1839705011221 Red Reflector. Model T3Red Reflector. Model T3
-
1840233251434 Flanged Elastic Nut M5. Model T3Flanged Elastic Nut M5. Model T3
-
1841710005563 License Plate Light. Model T3License Plate Light. Model T3
-
1842233251434 Flanged Elastic Nut M5. Model T3Flanged Elastic Nut M5. Model T3
-
1843250000761 Torx Truss Screw M8 X 50. Model T3Torx Truss Screw M8 X 50. Model T3
-
1844233281414 Hex. Flanged Elastic Nut M8. Model T3Hex. Flanged Elastic Nut M8. Model T3
-
1845705205993 Trailer Plug. Model T3Trailer Plug. Model T3
-
1846207661644 Hex. Flanged Screw M6 X 16. Model T3Hex. Flanged Screw M6 X 16. Model T3
-
1847233261414 Hex. Flanged Elastic Nut M6. Model T3Hex. Flanged Elastic Nut M6. Model T3
