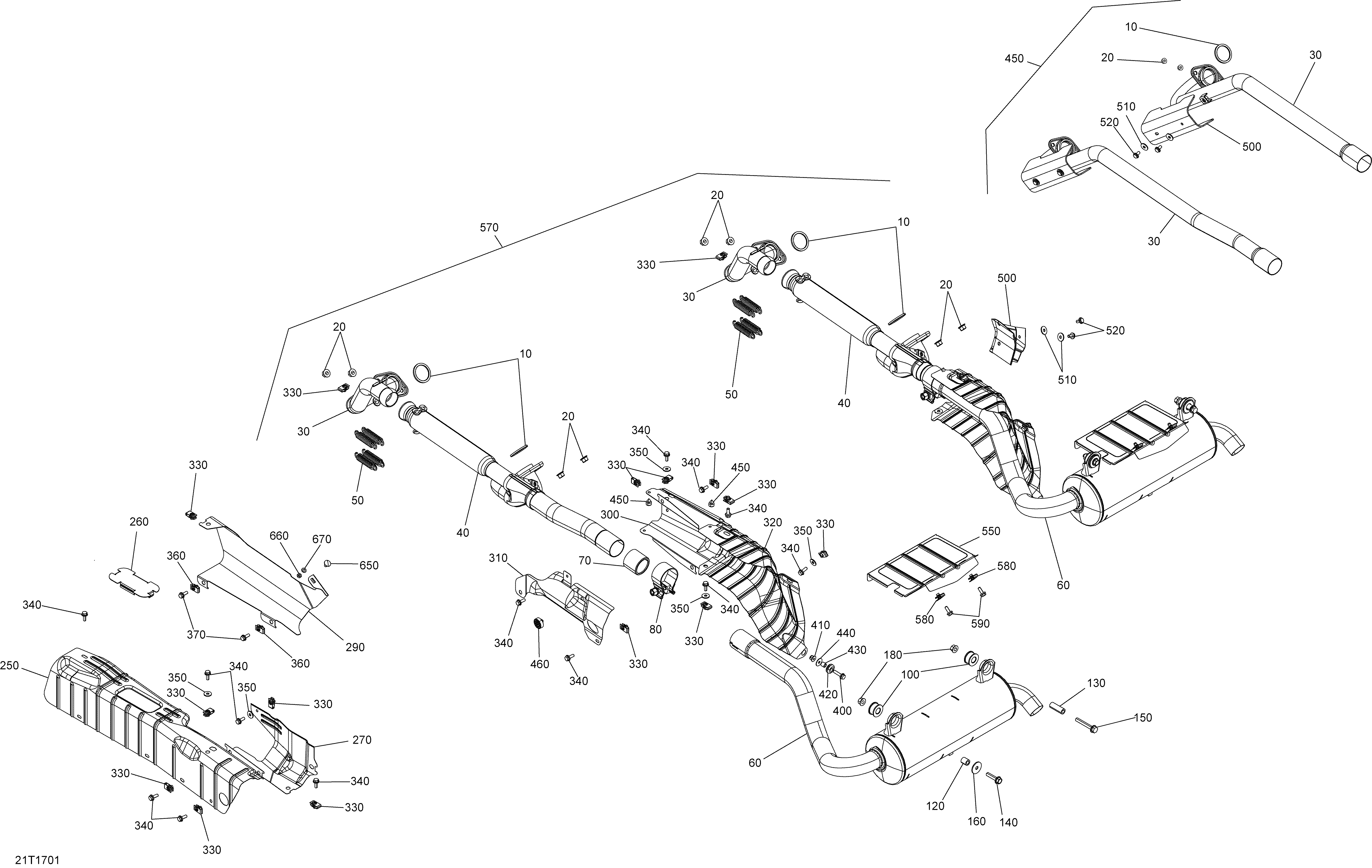

01- Exhaust System - All Models для BRP Outlander - Outlander MAX 450-570 - 2017

  • №
    Артикул
    Название
  • 10
    707600317 Gasket
    Gasket
  • 20
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 30
    707600764 Front Head Pipe. Engine 570
    Front Head Pipe. Engine 570
  • 30
    707601358 Front Head Pipe. Outlander 450
    Front Head Pipe. Outlander 450
  • 30
    707601361 Front Head Pipe. Outlander Max 450
    Front Head Pipe. Outlander Max 450
  • 40
    707601396 2-Into-1 Exhaust System. Outlander 570
    2-Into-1 Exhaust System. Outlander 570
  • 40
    707601397 2-Into-1 Exhaust System. Outlander Max 570
    2-Into-1 Exhaust System. Outlander Max 570
  • 50
    415107100 Spring. Engine 570
    Spring. Engine 570
  • 60
    707601392 Exhaust Muffler. Except Model Europe
    Exhaust Muffler. Except Model Europe
  • 60
    707601393 Exhaust Muffler. Model Europe
    Exhaust Muffler. Model Europe
  • 70
    707601544 Pipe Gasket. Outlander Max
    Pipe Gasket. Outlander Max
  • 80
    293650228 Exhaust Pipe Clamp
    Exhaust Pipe Clamp
  • 100
    707600701 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 120
    293900116 Spacer Bushing
    Spacer Bushing
  • 130
    293900115 Bushing
    Bushing
  • 140
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 150
    207685544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 160
    250200158 Flat Washer M8
    Flat Washer M8
  • 180
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 250
    707601486 Protector
    Protector
  • 260
    707600995 Heat Shield. Package XMR
    Heat Shield. Package XMR
  • 270
    707601484 Protector
    Protector
  • 290
    707600996 Heat Shield. Package PRO, XMR
    Heat Shield. Package PRO, XMR
  • 300
    707601485 Protector. Outlander Max
    Protector. Outlander Max
  • 310
    707600994 Heat Shield. Outlander Max
    Heat Shield. Outlander Max
  • 320
    707601425 Protector
    Protector
  • 330
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 340
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 350
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 360
    250000048 Panel Nut M6 X 1.0. Package PRO, XMR
    Panel Nut M6 X 1.0. Package PRO, XMR
  • 370
    207661644 Hex. Flanged Screw M6 X 16. Package PRO, XMR
    Hex. Flanged Screw M6 X 16. Package PRO, XMR
  • 400
    207662534 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 410
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 420
    293720053 Grommet
    Grommet
  • 430
    293900105 Bushing
    Bushing
  • 440
    224060201 Flat Washer
    Flat Washer
  • 450
    293830005 Rubber Bumper
    Rubber Bumper
  • 460
    708000506 Rubber Stopper. Outlander Max
    Rubber Stopper. Outlander Max
  • 500
    707600932 Pipe Protector. Engine 570
    Pipe Protector. Engine 570
  • 500
    707601457 Heat Shield. Engine 450
    Heat Shield. Engine 450
  • 510
    250200082 Flat Washer
    Flat Washer
  • 520
    250000574 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 550
    707601635 Protector
    Protector
  • 580
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 590
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 650
    207761244 Carriage Bolt M6 X 12. Package PRO, XMR
    Carriage Bolt M6 X 12. Package PRO, XMR
  • 660
    232561414 Elastic Stop Nut M6. Package PRO, XMR
    Elastic Stop Nut M6. Package PRO, XMR
  • 670
    234061410 Flat Washer 6 mm. Package PRO, XMR
    Flat Washer 6 mm. Package PRO, XMR
