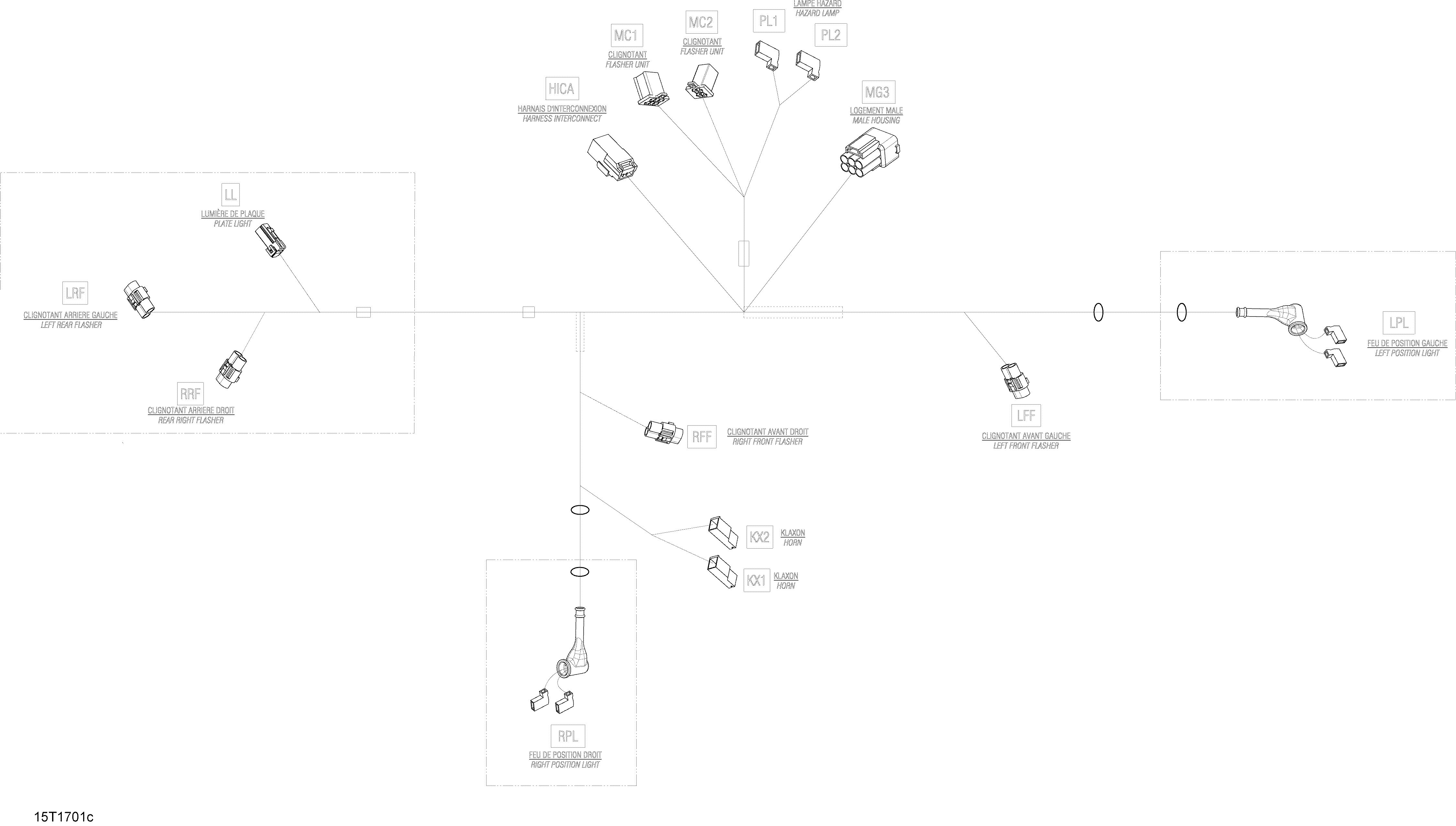

10- Electrical Harness - 710004331 Europe для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
HICA710001155 Housing. PACKARD 12064763Housing. PACKARD 12064763
-
HICA710001156 Lock. PACKARD 12064765Lock. PACKARD 12064765
-
HICA710001420 Male Terminal. PACKARD 12059894Male Terminal. PACKARD 12059894
-
KX1409010400 Female Terminal Housing, 1 Circuit. AMP 154719-0Female Terminal Housing, 1 Circuit. AMP 154719-0
-
KX1409010100 Female Terminal. AMP 1-160759-1Female Terminal. AMP 1-160759-1
-
KX2409010400 Female Terminal Housing, 1 Circuit. AMP 154719-0Female Terminal Housing, 1 Circuit. AMP 154719-0
-
KX2409010100 Female Terminal. AMP 1-160759-1Female Terminal. AMP 1-160759-1
-
LFF409012300 Seal. SUMITOMO 7160-8234Seal. SUMITOMO 7160-8234
-
LFF409012100 Female Terminal. SUMITOMO 1500-0110Female Terminal. SUMITOMO 1500-0110
-
LL515175658 Female Housing, 2 Circuits. AMP 174463-2Female Housing, 2 Circuits. AMP 174463-2
-
LL515175231 Female Terminal. AMP 173631-1Female Terminal. AMP 173631-1
-
LPL710003269 Cap ProtectorCap Protector
-
LPL1409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
LPL2409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
LRF409012300 Seal. SUMITOMO 7160-8234Seal. SUMITOMO 7160-8234
-
LRF409012100 Female Terminal. SUMITOMO 1500-0110Female Terminal. SUMITOMO 1500-0110
-
MC1710004047 Female Housing. OKAYMOTOR DJ7061A-2.8-21Female Housing. OKAYMOTOR DJ7061A-2.8-21
-
MC1710002315 Terminal. SUMITOMO 8240-4092Terminal. SUMITOMO 8240-4092
-
MC2710004048 Female Housing. OKAYMOTOR DJ7041A-2.8-21Female Housing. OKAYMOTOR DJ7041A-2.8-21
-
MC2710002315 Terminal. SUMITOMO 8240-4092Terminal. SUMITOMO 8240-4092
-
MG3710001446 Male Housing Terminal, 6 Circuits. SUMITOMO 6187-6803Male Housing Terminal, 6 Circuits. SUMITOMO 6187-6803
-
MG3710000080 Cap. SUMITOMO 7160-9465 (PKC T2412)Cap. SUMITOMO 7160-9465 (PKC T2412)
-
MG3409012300 Seal. SUMITOMO 7160-8234Seal. SUMITOMO 7160-8234
-
MG3409011300 Male Terminal. SUMITOMO 1500-0105Male Terminal. SUMITOMO 1500-0105
-
PL1409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
PL2409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
R-1710002674 Resistor. IRC RSFIJB470RResistor. IRC RSFIJB470R
-
RFF409012300 Seal. SUMITOMO 7160-8234Seal. SUMITOMO 7160-8234
-
RFF409012100 Female Terminal. SUMITOMO 1500-0110Female Terminal. SUMITOMO 1500-0110
-
RPL710003269 Cap ProtectorCap Protector
-
RPL1409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
RPL2409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
RRF409012300 Seal. SUMITOMO 7160-8234Seal. SUMITOMO 7160-8234
-
RRF409012100 Female Terminal. SUMITOMO 1500-0110Female Terminal. SUMITOMO 1500-0110
-
293750058 Locking Tie Rap. HELLERMAN TYTON 150-40593Locking Tie Rap. HELLERMAN TYTON 150-40593
-
710000751 Shrink Tubing. RAYCHEM RHF 100Shrink Tubing. RAYCHEM RHF 100
-
415129879 Protector Tube. SCHLEMMER 1950013-SProtector Tube. SCHLEMMER 1950013-S
