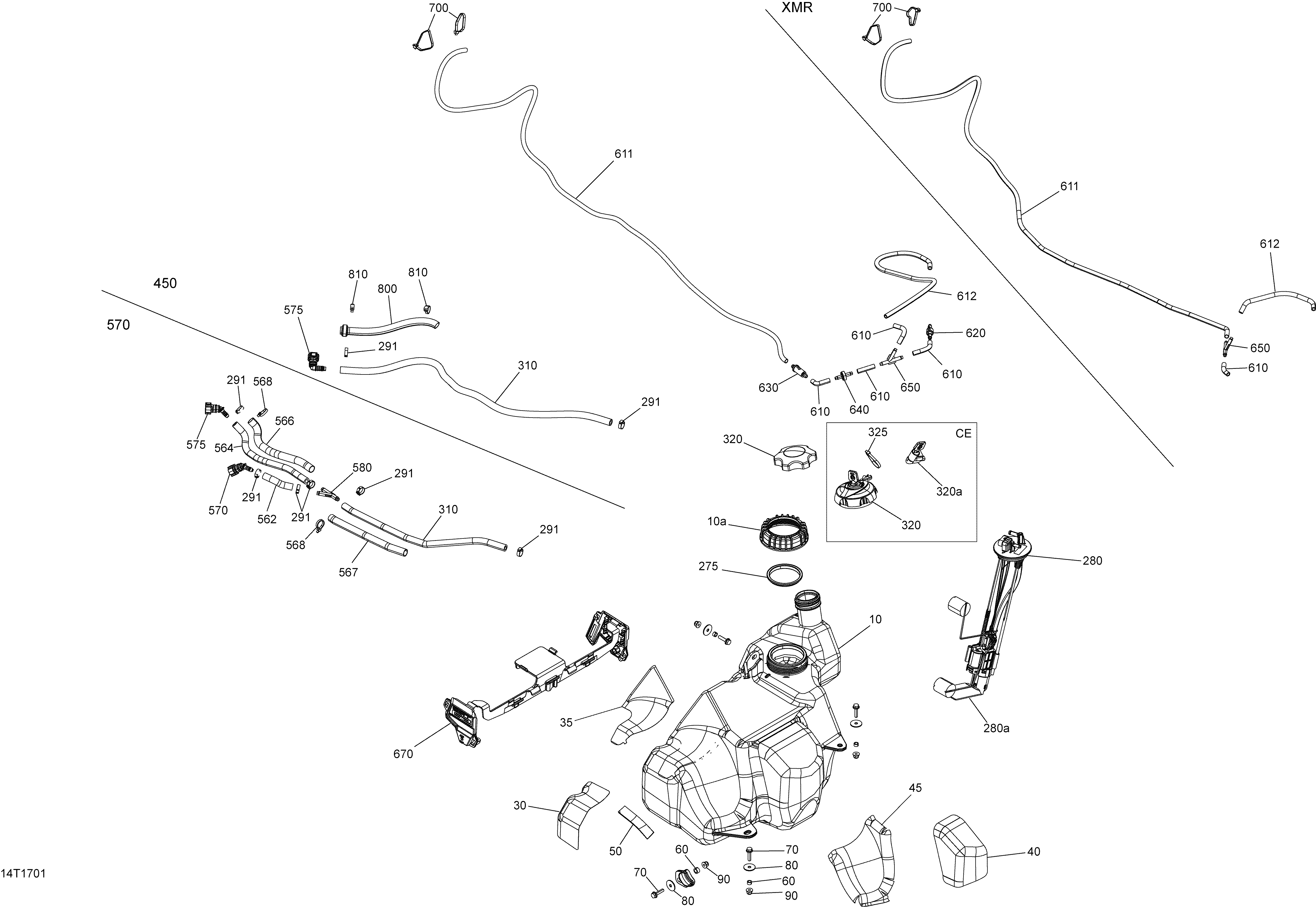

02- Fuel System - All Models для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
10>10a709000799 Fuel Tank Ass'y. Includes 10 to 10aFuel Tank Ass'y. Includes 10 to 10a
-
10a709000328 Fuel Pump Module NutFuel Pump Module Nut
-
30709000381 Heat Reflective SheetHeat Reflective Sheet
-
35709000387 Heat Reflective SheetHeat Reflective Sheet
-
40709000382 Heat Reflective SheetHeat Reflective Sheet
-
45709000388 Heat Reflective SheetHeat Reflective Sheet
-
50293830172 Rubber PadRubber Pad
-
60293900104 BushingBushing
-
70207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
80224060251 WasherWasher
-
90233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
275709000208 SealSeal
-
280>280a709000461 Fuel Pump. Includes 280 to 280 aFuel Pump. Includes 280 to 280 a
-
280a715900322 Prefilter Fuel Pump KitPrefilter Fuel Pump Kit
-
291293650047 Crimp ClampCrimp Clamp
-
310709000516 Fuel LineFuel Line
-
320513033025 Fuel Tank Cap. Except Model Europe, T3Fuel Tank Cap. Except Model Europe, T3
-
320>320a707001750 Lock Device Kit. Model Europe, T3. Includes 320 to 320 aLock Device Kit. Model Europe, T3. Includes 320 to 320 a
-
320a707000666 Lock. Model Europe, T3Lock. Model Europe, T3
-
325414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
562709000516 Fuel Line. Engine 570Fuel Line. Engine 570
-
564709000516 Fuel Line. Engine 570Fuel Line. Engine 570
-
566415080000 Tubing 16 mm. Engine 570Tubing 16 mm. Engine 570
-
567415080000 Tubing 16 mm. Engine 570Tubing 16 mm. Engine 570
-
568293750002 Tie-Rap 142 mm. Engine 570Tie-Rap 142 mm. Engine 570
-
570709000627 Quick Fitting 45° Ass'y. Engine 570Quick Fitting 45° Ass'y. Engine 570
-
575275500700 Quick Attach 90°. Engine 450Quick Attach 90°. Engine 450
-
575709000627 Quick Fitting 45° Ass'y. Engine 570Quick Fitting 45° Ass'y. Engine 570
-
580293710136 Y-Fitting, 5/16''. Engine 570Y-Fitting, 5/16''. Engine 570
-
610415080200 Hose, PolyurethaneHose, Polyurethane
-
611415080200 Hose, Polyurethane. Except Model XMRHose, Polyurethane. Except Model XMR
-
612415080200 Hose, PolyurethaneHose, Polyurethane
-
620513033469 Check ValveCheck Valve
-
630709000330 FilterFilter
-
640275500398 Check ValveCheck Valve
-
650293710059 Y-FittingY-Fitting
-
670709000359 Hose Support Ass'yHose Support Ass'y
-
700414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
800219702535 Tube 25.4MM. Engine 450Tube 25.4MM. Engine 450
-
810414115200 Tie-Rap 180 mm. Engine 450Tie-Rap 180 mm. Engine 450
