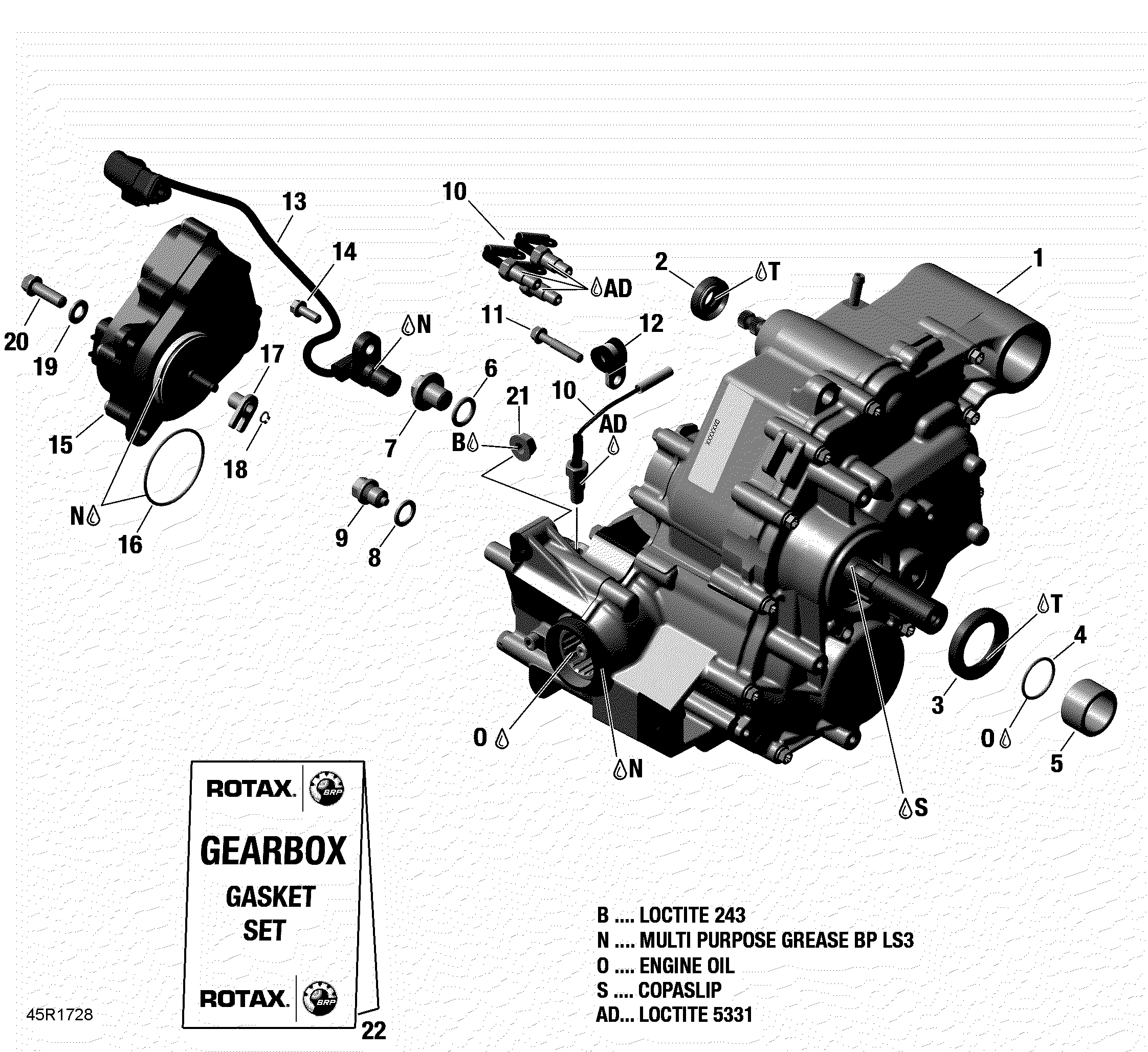

01- Gear Box Assy - 570 EFI для BRP Outlander - Outlander MAX 450-570 - 2017
-
№АртикулНазвание
-
1>11420686560 GearboxGearbox
-
2420250450 Oil SealOil Seal
-
3420950089 Oil SealOil Seal
-
4420631310 O-RingO-Ring
-
5420647253 Distance RingDistance Ring
-
6420650350 O-RingO-Ring
-
7420241660 Plug Screw M14 X 1.5Plug Screw M14 X 1.5
-
8420250640 Copper WasherCopper Washer
-
9420241786 Magnetic Drain PlugMagnetic Drain Plug
-
10420640192 Position SwitchPosition Switch
-
11420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
12420251691 Cable ClampCable Clamp
-
13420265621 Speed SensorSpeed Sensor
-
14420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
15>18415129174 Actuator Ass'yActuator Ass'y
-
16293300117 O-RingO-Ring
-
17415129175 Shifting ForkShifting Fork
-
18293370042 CirclipCirclip
-
19420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
20420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
21420842619 Hex. Nut M8Hex. Nut M8
-
22420684134 Gasket Set, GearboxGasket Set, Gearbox
