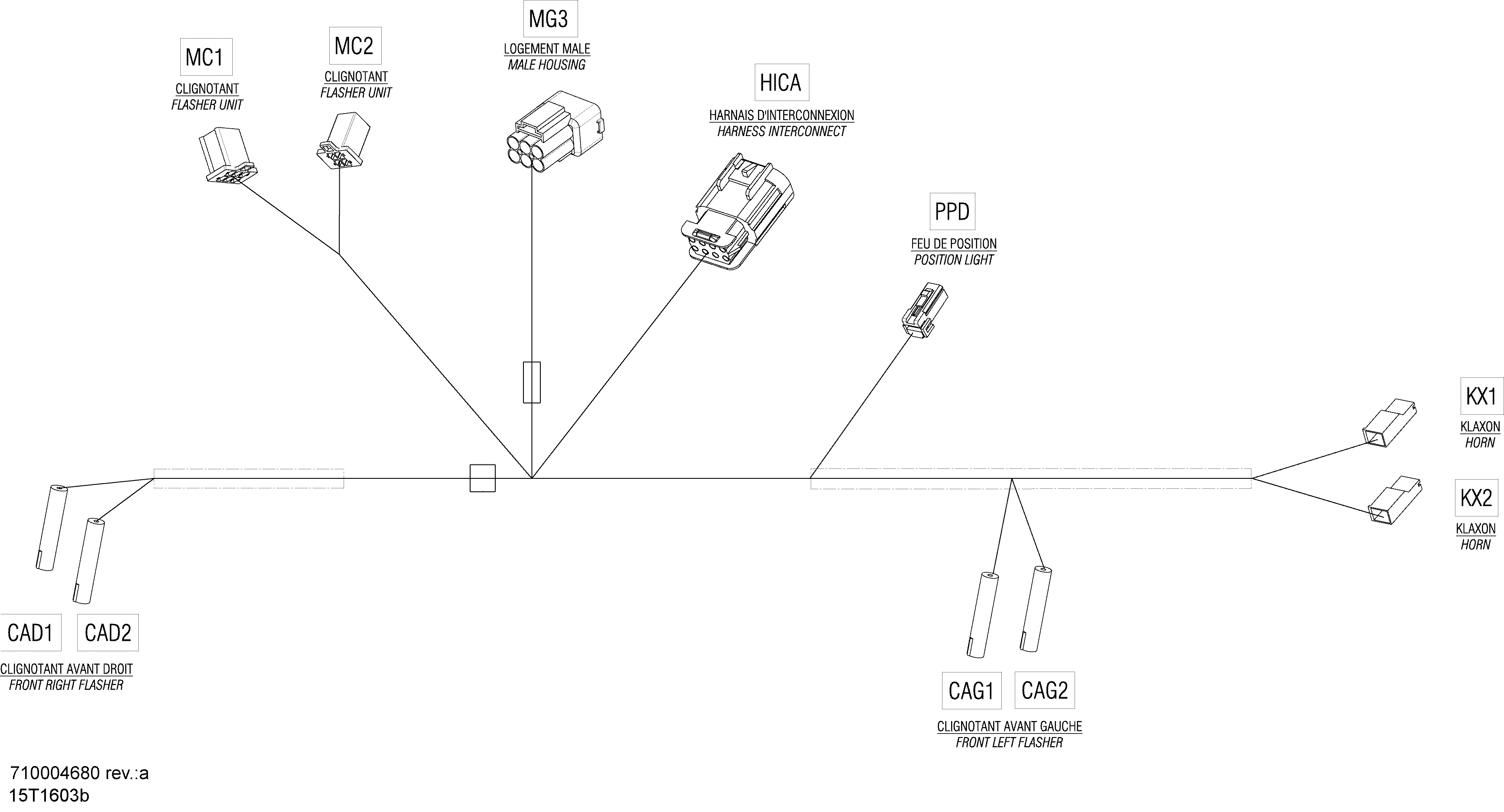

10- Electrical Harness - Europe для BRP Renegade - 2016
-
№АртикулНазвание
-
1710004680 Main Harness Ass'yMain Harness Ass'y
-
CAD1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
CAD1278001007 Insulated SheathInsulated Sheath
-
CAD1710000421 Female TerminalFemale Terminal
-
CAD2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
CAD2278001007 Insulated SheathInsulated Sheath
-
CAD2710000421 Female TerminalFemale Terminal
-
CAG1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
CAG1278001007 Insulated SheathInsulated Sheath
-
CAG1710000421 Female TerminalFemale Terminal
-
CAG2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
CAG2278001007 Insulated SheathInsulated Sheath
-
CAG2710000421 Female TerminalFemale Terminal
-
D10409012700 DiodeDiode
-
HICA710001927 HousingHousing
-
HICA710001225 CapCap
-
HICA710001233 SealSeal
-
HICA710001224 TerminalTerminal
-
KX1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
KX1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX1409010100 Female TerminalFemale Terminal
-
KX2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
KX2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX2409010100 Female TerminalFemale Terminal
-
MC1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
MC1710002314 HousingHousing
-
MC1710002315 TerminalTerminal
-
MC2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
MC2710002313 HousingHousing
-
MC2710002315 TerminalTerminal
-
MG3710001446 Male Housing Terminal, 6 CircuitsMale Housing Terminal, 6 Circuits
-
MG3710000080 CapCap
-
MG3710000402 Wire SealWire Seal
-
MG3409011300 Male TerminalMale Terminal
-
PPD293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
PPD515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
PPD515175231 Female TerminalFemale Terminal
-
R1710002674 ResistorResistor
