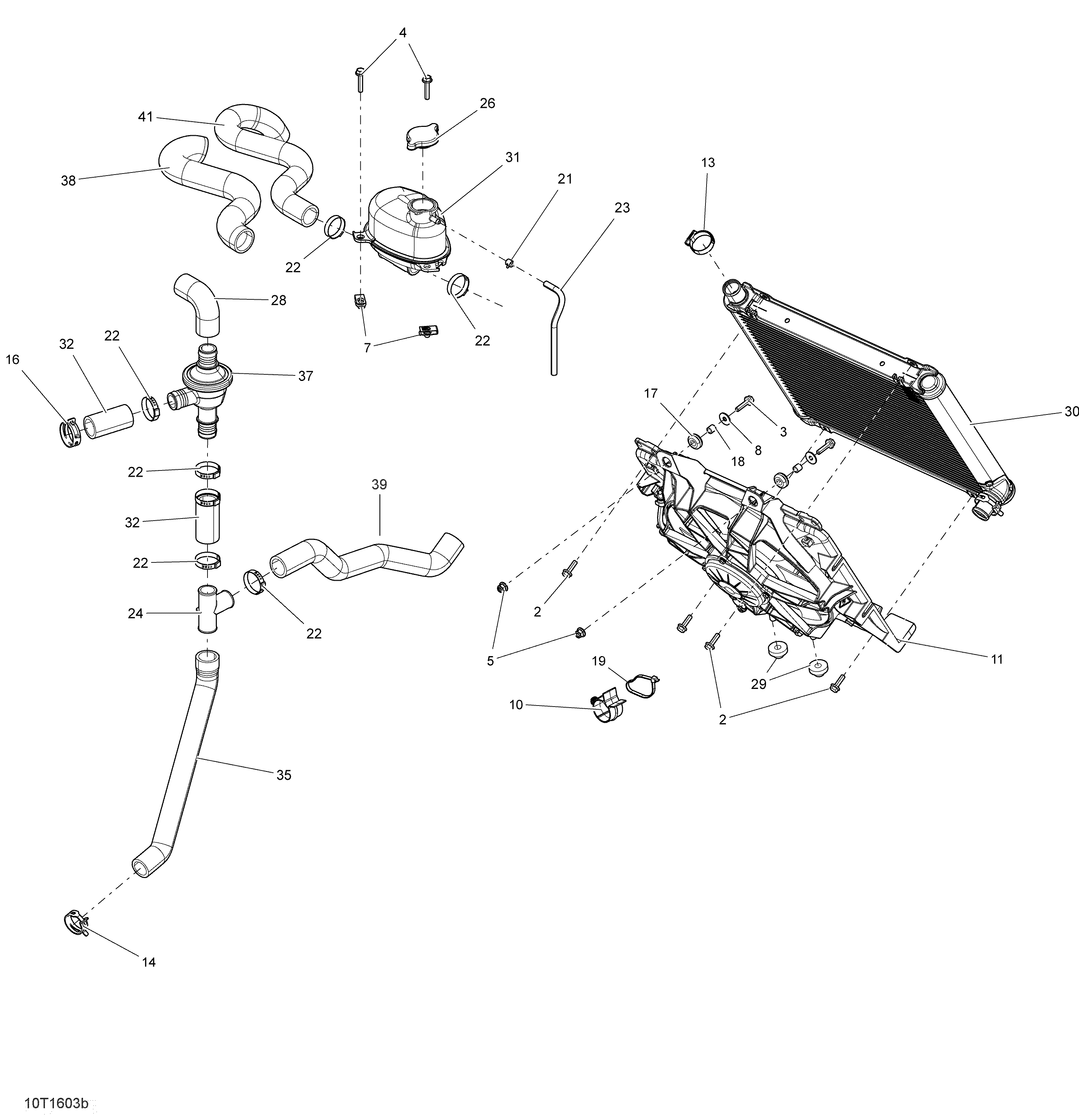

01- Cooling System - XMR для BRP Renegade - 2016
‹-+›
-
№АртикулНазвание
-
2207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
5233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
7250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
8250200082 Flat WasherFlat Washer
-
10275500590 RetainerRetainer
-
11709200564 Fan Ass'yFan Ass'y
-
13293650098 Norma Gear ClampNorma Gear Clamp
-
14293650108 Norma Spring ClampNorma Spring Clamp
-
16293650166 Norma Spring ClampNorma Spring Clamp
-
17293720053 GrommetGrommet
-
18293900105 BushingBushing
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21414554800 Spring ClampSpring Clamp
-
22509000162 Gear ClampGear Clamp
-
23415080200 Hose, PolyurethaneHose, Polyurethane
-
24509000219 T-FittingT-Fitting
-
26709200207 Pressure CapPressure Cap
-
28709200280 Thermostat Inlet HoseThermostat Inlet Hose
-
29709200285 GrommetGrommet
-
30709200286 RadiatorRadiator
-
31709200297 Coolant TankCoolant Tank
-
32709200299 HoseHose
-
35709200392 HoseHose
-
37709200406 ThermostatThermostat
-
38515176260 Tubing 35 mmTubing 35 mm
-
39709200390 Radiator Outlet HoseRadiator Outlet Hose
-
41709200575 Inlet HoseInlet Hose
