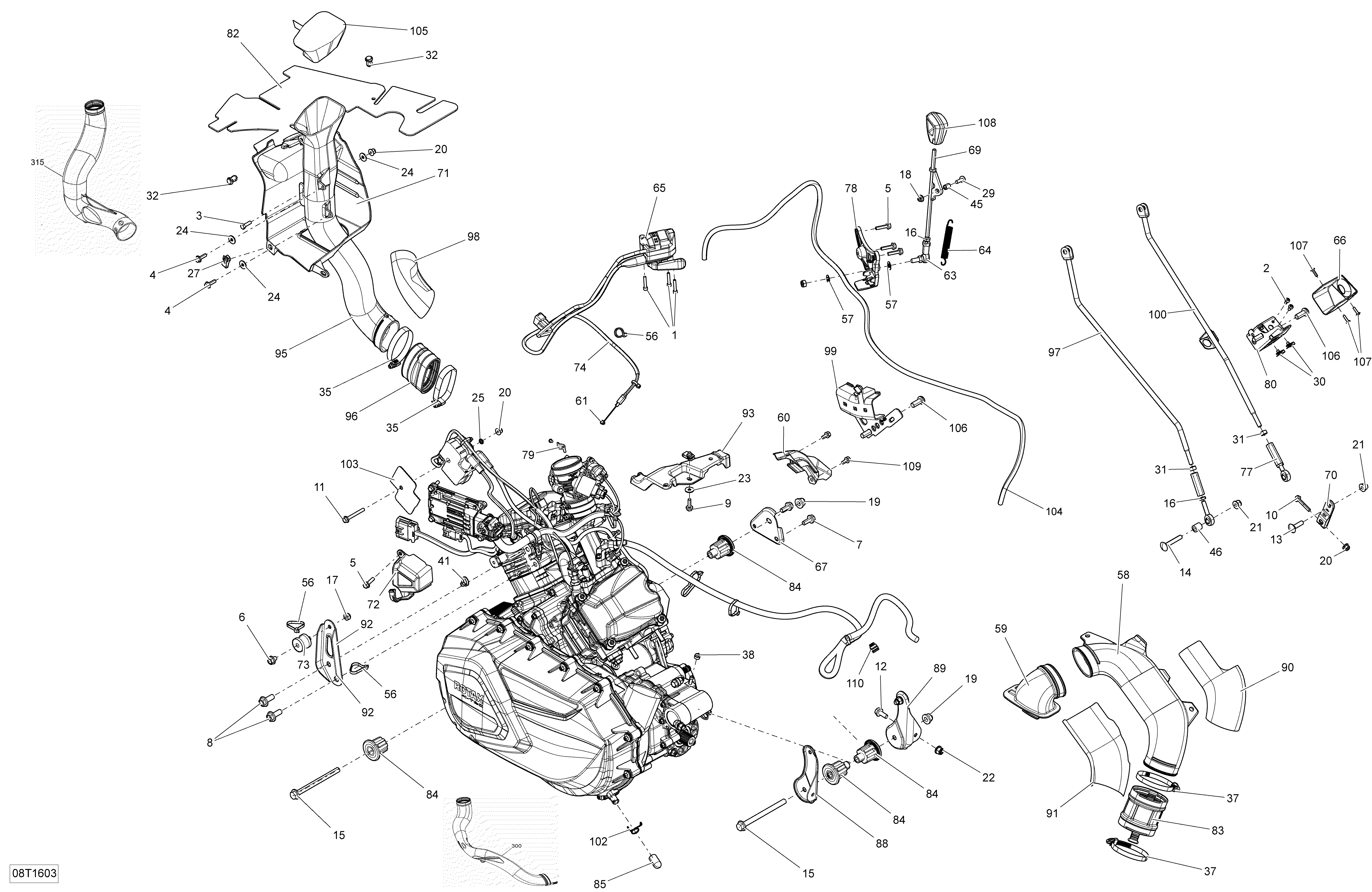

01- Engine and Engine Support для BRP Renegade - 2016

№

Артикул

Название
1

205052588 Socket Head Screw M5 X 25

Socket Head Screw M5 X 25
2

205951046 Socket Head Screw M5 X 10. Europe Model

Socket Head Screw M5 X 10. Europe Model
3

207162044 Hex. Screw M6 X 20

Hex. Screw M6 X 20
4

207562044 Flanged Screw M6 X 20, Scotch Grip

Flanged Screw M6 X 20, Scotch Grip
5

207562544 Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip
6

207581046 Flanged Screw M8 x 10, Scotch Grip

Flanged Screw M8 x 10, Scotch Grip
7

207582044 Hex. Flanged Screw M8 X 20, Scotch Grip

Hex. Flanged Screw M8 X 20, Scotch Grip
8

207602544 Hex. Flanged Screw M10 X 25

Hex. Flanged Screw M10 X 25
9

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
10

207663544 Hex. Flanged Screw M6 X 35

Hex. Flanged Screw M6 X 35
11

207665044 Hex. Flanged Screw M6 X 50

Hex. Flanged Screw M6 X 50
12

207682046 Hex. Flanged Screw M8 X 20

Hex. Flanged Screw M8 X 20
13

207783044 Carriage Bolt M8 X 30. Europe Model

Carriage Bolt M8 X 30. Europe Model
14

207785044 Carriage Bolt M8 X 50. Except Europe Model

Carriage Bolt M8 X 50. Except Europe Model
15

230602546 Hex. Flanged Screw M10 X 125

Hex. Flanged Screw M10 X 125
16

232180600 Hex. Jam Nut M8

Hex. Jam Nut M8
17

232581414 Hex. Elastic Stop Nut M8

Hex. Elastic Stop Nut M8
18

233161414 Hex. Flanged Nut M6

Hex. Flanged Nut M6
19

233201436 Flanged Elastic Nut M10

Flanged Elastic Nut M10
20

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
21

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
22

233281416 Hex. Elastic Flanged Nut M8

Hex. Elastic Flanged Nut M8
23

234062410 Flat Washer 6 mm

Flat Washer 6 mm
24

234062600 Flat Washer M6, Stainless

Flat Washer M6, Stainless
25

234461608 External Serrated Lock Washer 6 mm

External Serrated Lock Washer 6 mm
27

250000048 Panel Nut M6 X 1.0

Panel Nut M6 X 1.0
28

250000332 Torx Screw M4 X 8. Europe Model

Torx Screw M4 X 8. Europe Model
29

250000446 Torx Screw M6 X 20, Scotch Grip

Torx Screw M6 X 20, Scotch Grip
30

250100143 Extruded Panel Nut M4 X 0.7. Europe Model

Extruded Panel Nut M4 X 0.7. Europe Model
31

250100144 Hex. Nut M8, Filets GA

Hex. Nut M8, Filets GA
32

293150089 Tuflok Plastic Rivet

Tuflok Plastic Rivet
33

293600041 Cable Lubricant, 400 g

Cable Lubricant, 400 g
35

293650091 Norma Clamp

Norma Clamp
37

293650118 Norma Gear Clamp

Norma Gear Clamp
38

293650195 Clamp, Oetiker

Clamp, Oetiker
41

293750002 Tie-Rap 142 mm

Tie-Rap 142 mm
45

293900019 Bushing

Bushing
46

293900106 Bushing. Except Europe Model

Bushing. Except Europe Model
56

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
57

506151252 Washer

Washer
58

706600019 Air Outlet

Air Outlet
59

706600024 Air Outlet

Air Outlet
60

707000410 Cover OPS

Cover OPS
61

707000434 Cable Guide

Cable Guide
63

707000546 RH Ball Joint

RH Ball Joint
64

707000577 Spring

Spring
65

707000595 Throttle Handle

Throttle Handle
66

707000667 Cover Lock. Europe Model

Cover Lock. Europe Model
67

707000761 RH Front Engine Bracket

RH Front Engine Bracket
69

707000840 Shift Arm

Shift Arm
70

707000911 Lever

Lever
71

707000928 Water Deflector

Water Deflector
72

707000945 Cover

Cover
73

707000949 Rubber Isolator

Rubber Isolator
74

707000955 Throttle Cable

Throttle Cable
77

707000966 Ball Joint Ass'y

Ball Joint Ass'y
78

707000971 Shift Arm Base

Shift Arm Base
79

707001927 Speed Limiter. Europe Model

Speed Limiter. Europe Model
80

707001009 Fixing Plate. Europe Model Except Engine 1000R

Fixing Plate. Europe Model Except Engine 1000R
80

707001354 Fixing Plate. Engine 1000R Europe Model

Fixing Plate. Engine 1000R Europe Model
82

707001041 Upper Water Deflector

Upper Water Deflector
83

707001168 CVT Air Outlet Adaptor

CVT Air Outlet Adaptor
84

707001169 Damper

Damper
85

707001185 Plug

Plug
88

707001191 LH Rear Engine Bracket. Engine 1000R

LH Rear Engine Bracket. Engine 1000R
88

707001193 LH Rear Engine Bracket. Except Engine 1000R

LH Rear Engine Bracket. Except Engine 1000R
89

707001192 RH Rear Engine Bracket. Engine 1000R

RH Rear Engine Bracket. Engine 1000R
89

707001194 RH Rear Engine Bracket. Except Engine 1000R

RH Rear Engine Bracket. Except Engine 1000R
90

707001205 Heat Shield

Heat Shield
91

707001206 Heat Shield

Heat Shield
92

707000781 Upper Engine Bracket, Black. Engine 1000R

Upper Engine Bracket, Black. Engine 1000R
92

707001256 Upper Engine Bracket. Except Engine 1000R

Upper Engine Bracket. Except Engine 1000R
93

707001262 Air Outlet Support

Air Outlet Support
95

707001399 CVT Air Inlet

CVT Air Inlet
96

707001467 Flexible Adaptor

Flexible Adaptor
97

707001015 Shifter Rod. Europe Model

Shifter Rod. Europe Model
97

707001564 Shifter Rod. Except Europe Model

Shifter Rod. Except Europe Model
98

707001654 Heat Shield

Heat Shield
99

707001842 Cable Support

Cable Support
100

707001848 Shifter Rod. Europe Model Except Engine 1000R

Shifter Rod. Europe Model Except Engine 1000R
100

707001850 Shifter Rod. Engine 1000R Europe Model

Shifter Rod. Engine 1000R Europe Model
102

707800506 Retainer Clip

Retainer Clip
103

710000073 Insulator Pad

Insulator Pad
104

415080200 Hose, Polyurethane

Hose, Polyurethane
105

707001786 Filter Cvt. Engine 850 and 1000R

Filter Cvt. Engine 850 and 1000R
106

205402556 Screw-Socket Bn.Hd.Iso.7380

Screw-Socket Bn.Hd.Iso.7380
107

250000750 Torx-Truss M/S M4 X 16. Europe Model

Torx-Truss M/S M4 X 16. Europe Model
108

707000965 Lever Button

Lever Button
109

210261250 Screw-Forming Hex.Hd.Fl.Bzn

Screw-Forming Hex.Hd.Fl.Bzn
110

710002896 Tie-Rap Clip

Tie-Rap Clip
300

707001780 CVT Air Outlet. Package XMR

CVT Air Outlet. Package XMR
315

707001781 Inferior CVT Air Outlet. Package XMR

Inferior CVT Air Outlet. Package XMR
