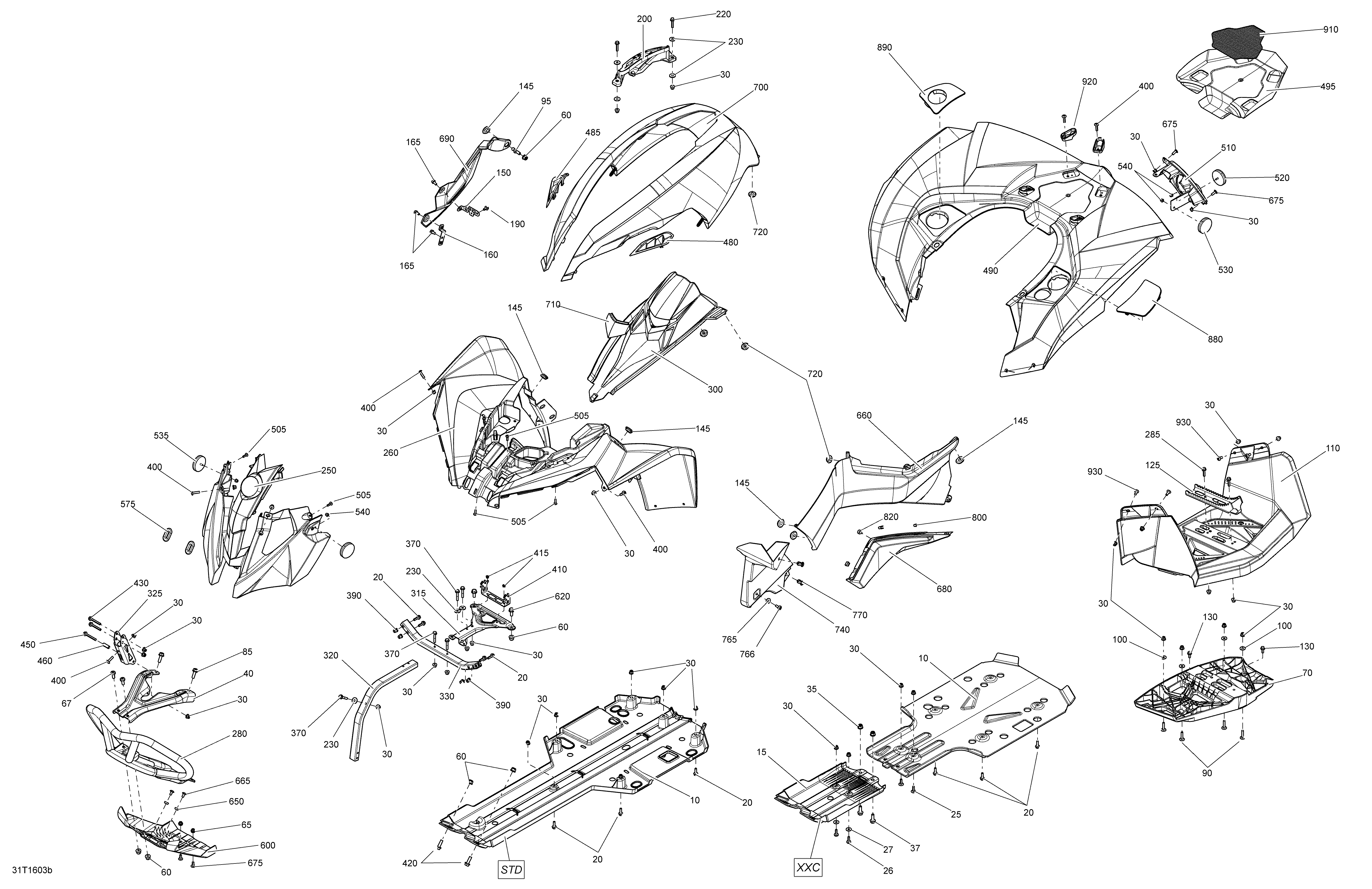

09- Body and Accessories для BRP Renegade - 2016
-
№АртикулНазвание
-
10715002374 Protective Plate Kit. Package STDProtective Plate Kit. Package STD
-
10705204031 Central Skid Plate. Package XXCCentral Skid Plate. Package XXC
-
14a232862412 Square Nut M6Square Nut M6
-
15705007820 Skid Plate. Package XXCSkid Plate. Package XXC
-
15a232862412 Square Nut M6Square Nut M6
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20. Package STD-XXCCarriage Bolt M6 X 20. Package STD-XXC
-
26250000712 Torx Screw M6 X 20. Package XXCTorx Screw M6 X 20. Package XXC
-
27234062670 Flat Washer, Stainless. Package XXCFlat Washer, Stainless. Package XXC
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233281434 Hex. Flanged Elastic Nut M8. Package XXCHex. Flanged Elastic Nut M8. Package XXC
-
37207682534 Hex. Flanged Screw M8 X 25. Package XXCHex. Flanged Screw M8 X 25. Package XXC
-
40705003505 Bumper SupportBumper Support
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
65293450232 InsertInsert
-
67250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
70705004176 LH FootboardLH Footboard
-
70705004177 RH FootboardRH Footboard
-
85207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
90207763044 Carriage Bolt M6 X 30Carriage Bolt M6 X 30
-
95250300039 Ball Head StudBall Head Stud
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705004730 LH Footboard/FenderLH Footboard/Fender
-
110705004729 RH Footboard/FenderRH Footboard/Fender
-
125705002326 FootrestFootrest
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
145705000321 Oval WasherOval Washer
-
150705002667 Engine Cover SupportEngine Cover Support
-
160705003646 Engine Cover SupportEngine Cover Support
-
165210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
190207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
200705003838 Lever Indicator. 570-850 EngineLever Indicator. 570-850 Engine
-
200705004416 Lever Indicator. 1000R EngineLever Indicator. 1000R Engine
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705003948 Front FaciaFront Facia
-
260715002154 Black Front Fender Kit. Package XXC, North America Red ModelBlack Front Fender Kit. Package XXC, North America Red Model
-
260715002155 Black Front Fender Kit. Package XXC, Europe-International Red ModelBlack Front Fender Kit. Package XXC, Europe-International Red Model
-
260715002550 Black Front Fender Kit. Package XXC, North America Digital Camo ModelBlack Front Fender Kit. Package XXC, North America Digital Camo Model
-
260715002570 Black Front Fender Kit. Package XXC, Europe-International Digital Camo ModelBlack Front Fender Kit. Package XXC, Europe-International Digital Camo Model
-
260715003158 Red Front Fender Kit. Package STD, North America ModelRed Front Fender Kit. Package STD, North America Model
-
260715003164 Red Front Fender Kit. Package STD, Europe-International ModelRed Front Fender Kit. Package STD, Europe-International Model
-
280705004993 Welded Front BumperWelded Front Bumper
-
285207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
300705003556 DashboardDashboard
-
315705003599 Painted BracketPainted Bracket
-
320705003511 Front TubeFront Tube
-
325705002282 SupportSupport
-
330705003510 Body TubeBody Tube
-
370207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
390293450275 InsertInsert
-
400250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
410710002482 Fuse HolderFuse Holder
-
415390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
420207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
430207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
450207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
460705005809 SpacerSpacer
-
480705008137 LH GrillLH Grill
-
485705008138 RH GrillRH Grill
-
490715001887 Black Rear Fender Kit. Package XXC, North America Red ModelBlack Rear Fender Kit. Package XXC, North America Red Model
-
490715002164 Black Rear Fender Kit. Package XXC, International Red ModelBlack Rear Fender Kit. Package XXC, International Red Model
-
490715002165 Black Rear Fender Kit. Package XXC, Europe Red ModelBlack Rear Fender Kit. Package XXC, Europe Red Model
-
490715002572 Black Rear Fender Kit. Package XXC, North America Digital Camo ModelBlack Rear Fender Kit. Package XXC, North America Digital Camo Model
-
490715002574 Black Rear Fender Kit. Package XXC, International Digital Camo ModelBlack Rear Fender Kit. Package XXC, International Digital Camo Model
-
490715002575 Black Rear Fender Kit. Package XXC, Europe Digital Camo ModelBlack Rear Fender Kit. Package XXC, Europe Digital Camo Model
-
490715003166 Red Rear Fender Kit. Package STD, North America ModelRed Rear Fender Kit. Package STD, North America Model
-
490715003168 Red Rear Fender Kit. Package STD, Europe ModelRed Rear Fender Kit. Package STD, Europe Model
-
490715003170 Red Rear Fender Kit. Package STD, International ModelRed Rear Fender Kit. Package STD, International Model
-
495705005840 Reflective SheetReflective Sheet
-
505250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
510705004731 LH Rear Facia. Except Europe ModelLH Rear Facia. Except Europe Model
-
510705004927 LH Rear Facia. Europe ModelLH Rear Facia. Europe Model
-
510705004732 RH Rear Facia. Except Europe ModelRH Rear Facia. Except Europe Model
-
510705004926 RH Rear Facia. Europe ModelRH Rear Facia. Europe Model
-
530705002408 Red Reflector. Except Europe ModelRed Reflector. Except Europe Model
-
535705002409 Amber Reflector. Except Europe ModelAmber Reflector. Except Europe Model
-
540233251434 Flanged Elastic Nut M5. Except Europe ModelFlanged Elastic Nut M5. Except Europe Model
-
575705003668 Oblong GrommetOblong Grommet
-
600705004850 Front Bumper PlateFront Bumper Plate
-
620207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
650232862412 Square Nut M6Square Nut M6
-
660705002958 Black LH Lateral Panel. Package STD, Red ModelBlack LH Lateral Panel. Package STD, Red Model
-
660705002959 Black RH Lateral Panel. Package STD, Red ModelBlack RH Lateral Panel. Package STD, Red Model
-
660705010570 Digital Camo LH Lateral Panel. Package XXC, Digital Camo ModelDigital Camo LH Lateral Panel. Package XXC, Digital Camo Model
-
660705010571 Digital Camo RH Lateral Panel. Package XXC, Digital Camo ModelDigital Camo RH Lateral Panel. Package XXC, Digital Camo Model
-
660705010132 White LH Lateral Panel. Package XXC, Red ModelWhite LH Lateral Panel. Package XXC, Red Model
-
660705010133 White RH Lateral Panel. Package XXC, Red ModelWhite RH Lateral Panel. Package XXC, Red Model
-
665250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
675250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
680705004988 Panel ExtensionPanel Extension
-
690705004966 Engine CoverEngine Cover
-
700715003174 Red Central Panel Kit. Package STD, North America ModelRed Central Panel Kit. Package STD, North America Model
-
700715003176 Red Central Panel Kit. Package STD, Europe-International ModelRed Central Panel Kit. Package STD, Europe-International Model
-
700715002577 Digital Camo Central Pannel Kit. Package XXC, North America Digital Camo ModelDigital Camo Central Pannel Kit. Package XXC, North America Digital Camo Model
-
700715002581 Digital Camo Central Pannel Kit. Package XXC, Europe-International Digital Camo ModelDigital Camo Central Pannel Kit. Package XXC, Europe-International Digital Camo Model
-
700715001461 White Central Panel Kit. Package XXC, North America Red ModelWhite Central Panel Kit. Package XXC, North America Red Model
-
700715003178 White Central Panel Kit. Package XXC, Europe-International Red ModelWhite Central Panel Kit. Package XXC, Europe-International Red Model
-
710705002353 Cap. Except Europe ModelCap. Except Europe Model
-
720705003264 GrommetGrommet
-
740705004308 RH Inner FenderRH Inner Fender
-
740705004307 LH Inner FenderLH Inner Fender
-
765234062670 Flat Washer, StainlessFlat Washer, Stainless
-
766250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
770293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
800414479100 ClipClip
-
820293830005 Rubber BumperRubber Bumper
-
880705001910 Black LH CapBlack LH Cap
-
890705002420 Neck CapNeck Cap
-
910705002343 Rear CapetRear Capet
-
920705002342 HookHook
-
930250000755 Torx Screw M6 X 16Torx Screw M6 X 16
