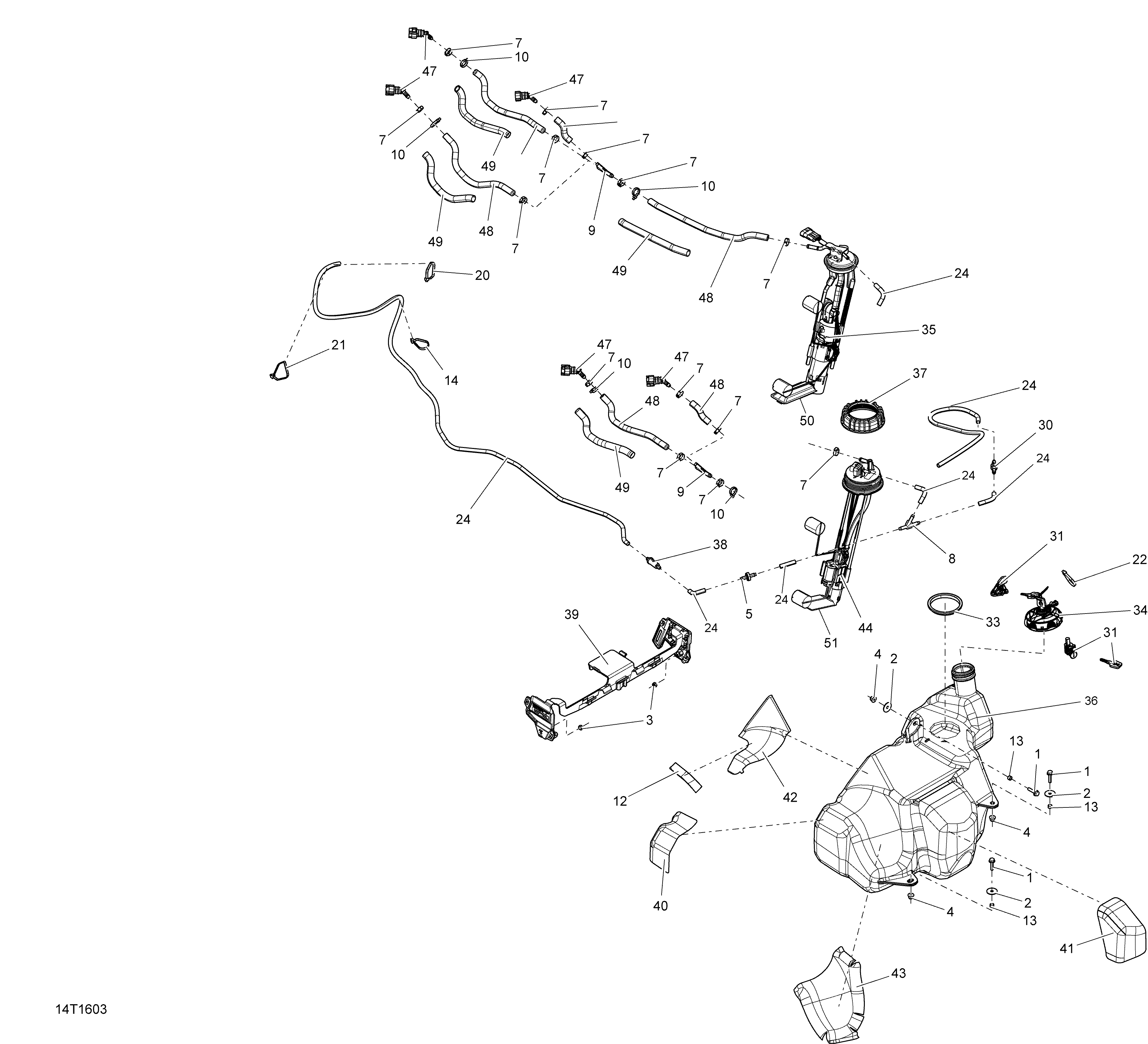

02- Fuel System для BRP Renegade - 2016
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2224060251 WasherWasher
-
3232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5275500398 Check ValveCheck Valve
-
7293650047 Crimp ClampCrimp Clamp
-
8293710059 Y-FittingY-Fitting
-
9293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
10293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
11293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
12293830172 Rubber PadRubber Pad
-
13293900104 BushingBushing
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
24415080200 Hose, PolyurethaneHose, Polyurethane
-
30513033469 Check ValveCheck Valve
-
31707001750 Lock Device Kit. Europe ModelLock Device Kit. Europe Model
-
33709000208 SealSeal
-
34513033025 Fuel Tank Cap. Except Europe ModelFuel Tank Cap. Except Europe Model
-
34707001750 Lock Device Kit. Europe ModelLock Device Kit. Europe Model
-
35709000287 Fuel Pump Module Ass'y. Except Engine 570Fuel Pump Module Ass'y. Except Engine 570
-
36709000310 Fuel Tank Ass'yFuel Tank Ass'y
-
37709000328 Fuel Pump Module NutFuel Pump Module Nut
-
38709000330 FilterFilter
-
39709000359 Hose Support Ass'yHose Support Ass'y
-
40709000381 Heat Reflective SheetHeat Reflective Sheet
-
41709000382 Heat Reflective SheetHeat Reflective Sheet
-
42709000387 Heat Reflective SheetHeat Reflective Sheet
-
43709000388 Heat Reflective SheetHeat Reflective Sheet
-
44709000461 Fuel Pump. Engine 570Fuel Pump. Engine 570
-
47709000627 Quick Fitting 45° Ass'yQuick Fitting 45° Ass'y
-
48709000516 Fuel LineFuel Line
-
49415080000 Tubing 16 mmTubing 16 mm
-
50709000389 Fuel Pre-Filter Kit. Except Engine 570Fuel Pre-Filter Kit. Except Engine 570
-
51715900322 Prefilter Fuel Pump Kit. Engine 570Prefilter Fuel Pump Kit. Engine 570
