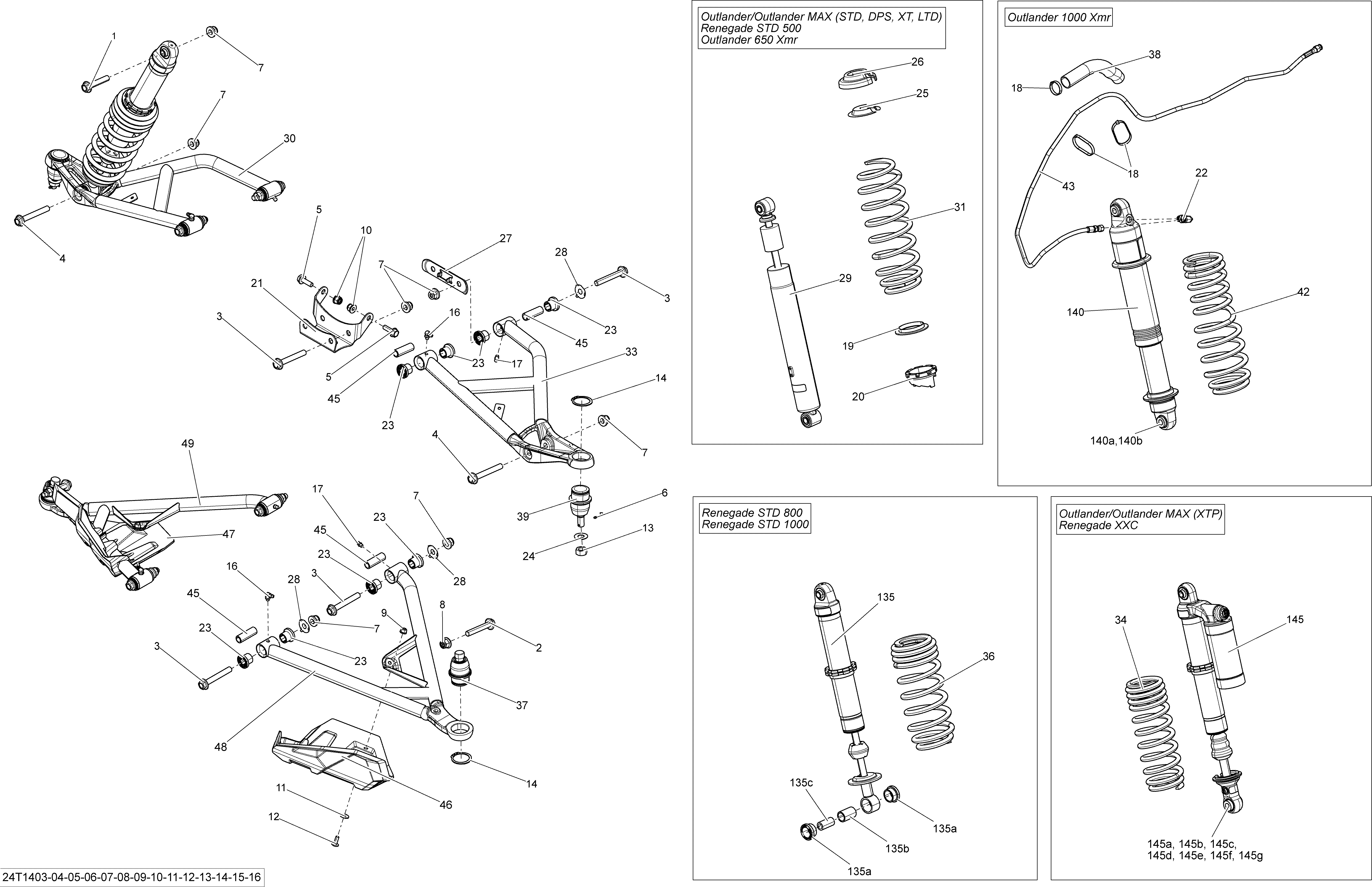

07- Front Suspension для BRP Outlander 1000EFI XMR - 2014
-
№АртикулНазвание
-
1207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
2207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
5207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
6211400017 Cotter PinCotter Pin
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062670 Flat WasherFlat Washer
-
12250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
13250100099 Nut M12Nut M12
-
14293370035 CirclipCirclip
-
16293550056 Grease Fitting 90°Grease Fitting 90°
-
17408200700 Grease FittingGrease Fitting
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21705203247 Upper Front HolderUpper Front Holder
-
22706001200 Elbow 90°Elbow 90°
-
23703500875 Bushing Kit. Includes 45Bushing Kit. Includes 45
-
24250200086 Flat WasherFlat Washer
-
27706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
28706201063 Wear PlateWear Plate
-
30706201797 Black RH Upper ArmBlack RH Upper Arm
-
33706201796 Black LH Upper ArmBlack LH Upper Arm
-
37706201393 Ball JointBall Joint
-
38409902200 Tubing 25 mmTubing 25 mm
-
39706201394 Ball JointBall Joint
-
42706201510 Yellow Spring. Model-Black/YellowYellow Spring. Model-Black/Yellow
-
42706201541 Black Spring. Model-CamoBlack Spring. Model-Camo
-
43706201520 HoseHose
-
45703500875 Bushing Kit. Includes 23Bushing Kit. Includes 23
-
46706201829 LH Joint ProtectorLH Joint Protector
-
47706201830 RH Joint ProtectorRH Joint Protector
-
48706201874 Black LH Lower ArmBlack LH Lower Arm
-
49706201875 Black RH Lower ArmBlack RH Lower Arm
-
140706201509 Shock Absorber. Includes 140 to 145bShock Absorber. Includes 140 to 145b
-
140a715500360 O-Ring BushingO-Ring Bushing
-
140b715500361 Interior BushingInterior Bushing
