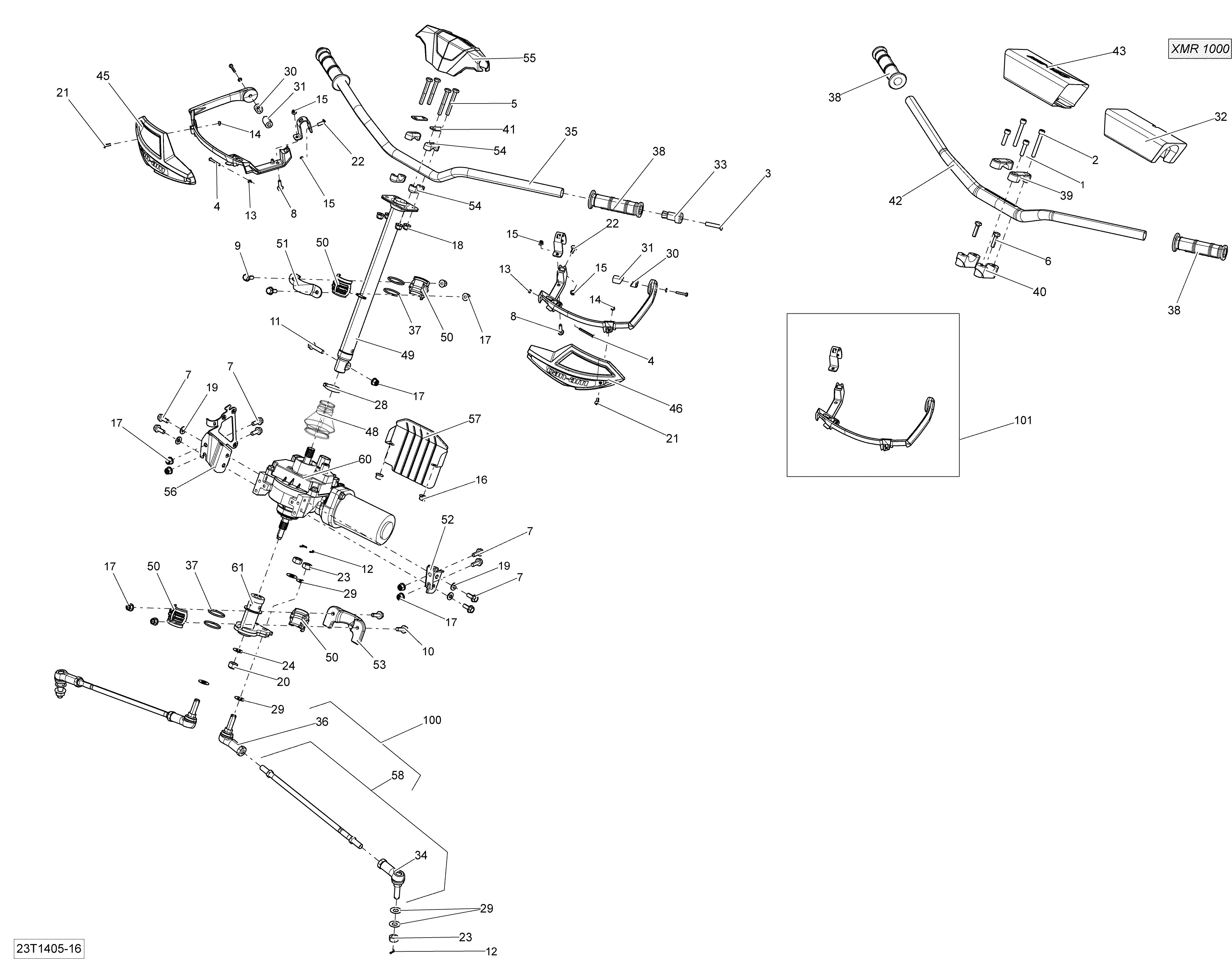

07- Steering для BRP Outlander 1000EFI XMR - 2014
-
№АртикулНазвание
-
1205083060 Socket Screw M8 X 30Socket Screw M8 X 30
-
2205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
3205384034 Socket Head ScrewSocket Head Screw
-
4205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
6207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
7207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
10207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
11207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
12211400013 Cotter PinCotter Pin
-
13232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
14232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
-
15232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
16233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
19234281474 Conical Spring Washer M8Conical Spring Washer M8
-
20250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
21250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
22250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
23250100099 Nut M12Nut M12
-
24250200086 Flat WasherFlat Washer
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29250200086 Flat WasherFlat Washer
-
30709400161 Bracket, SmallBracket, Small
-
31709400162 Bracket, LargeBracket, Large
-
32709400422 FoamFoam
-
36709400490 Ball JointBall Joint
-
37293300068 O-RingO-Ring
-
38709400493 Handle GripHandle Grip
-
39709400496 SupportSupport
-
40709400497 Steering SupportSteering Support
-
42709400513 Aluminum- Handle BarAluminum- Handle Bar
-
43709400519 CoverCover
-
45709401303 RH Air Deflector. BlackRH Air Deflector. Black
-
46709401304 LH Air Deflector. BlackLH Air Deflector. Black
-
45709400530 RH Air Deflector. Black/YellowRH Air Deflector. Black/Yellow
-
46709400531 LH Air Deflector. Black/YellowLH Air Deflector. Black/Yellow
-
48709400674 BellowsBellows
-
49709400703 Upper Main TubeUpper Main Tube
-
50709400783 Spherical Half BushingSpherical Half Bushing
-
51709400827 Upper Column AttachmentUpper Column Attachment
-
52709400848 Power Steering Module BracketPower Steering Module Bracket
-
53709400912 Lower Column AttachmentLower Column Attachment
-
56709400994 RH Steering BracketRH Steering Bracket
-
57709401005 Heat DeflectorHeat Deflector
-
58703500829 Tie-Rod Ass'yTie-Rod Ass'y
-
60709401182 Power Steering Ass'yPower Steering Ass'y
-
61703500812 Pitman KitPitman Kit
-
100703500829 Tie-Rod Ass'yTie-Rod Ass'y
-
101715000545 Deflector Support Kit. BlackDeflector Support Kit. Black
-
101715001378 RH Deflector Support. CamoRH Deflector Support. Camo
