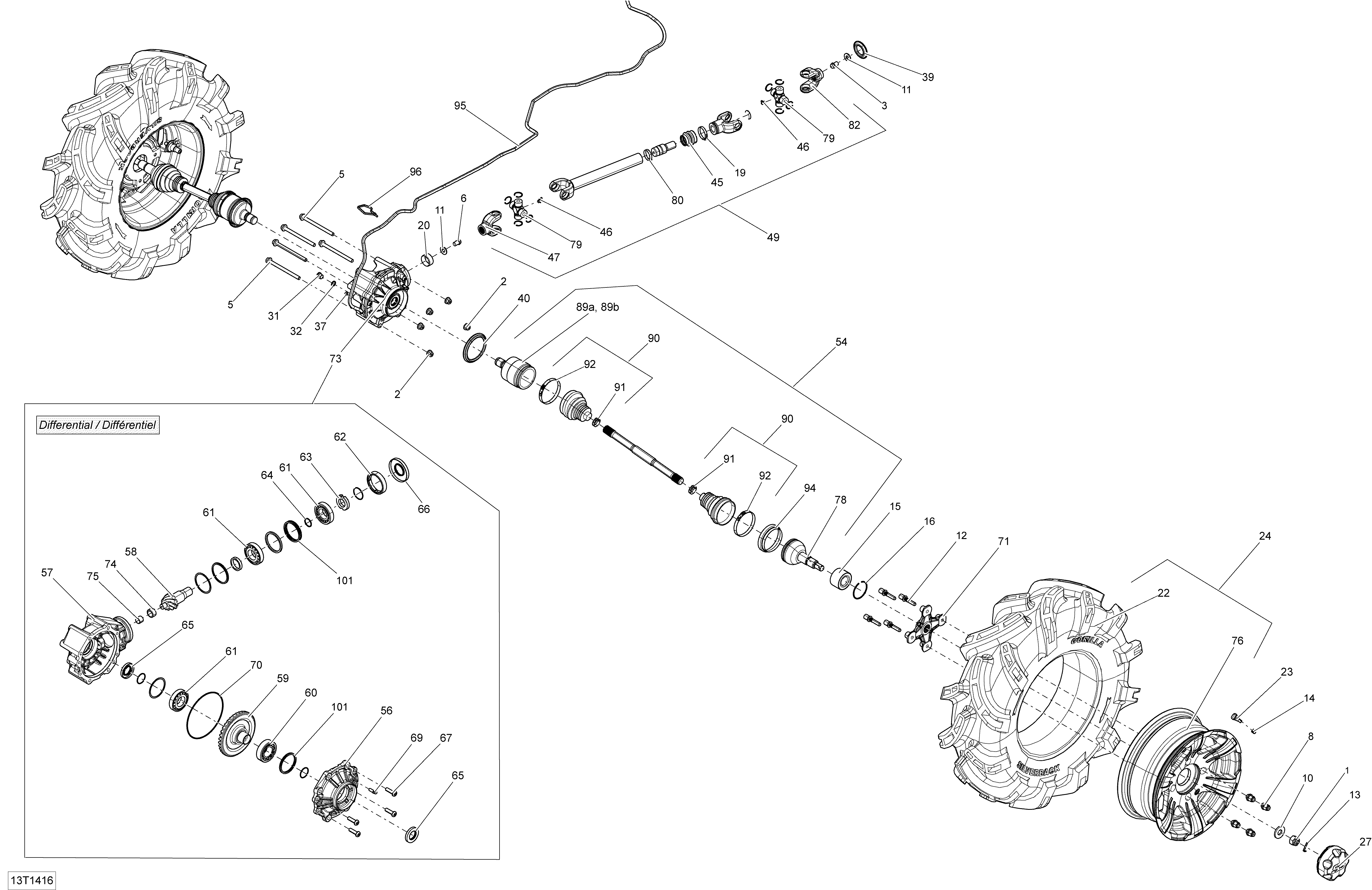

08- Drive System, Rear для BRP Outlander 1000EFI XMR - 2014
-
№АртикулНазвание
-
1250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
2233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
5250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
6250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
8250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
10250200049 Spring WasherSpring Washer
-
11250200014 Flat Washer M10Flat Washer M10
-
12250300048 Wheel StudWheel Stud
-
13250400036 Cotter PinCotter Pin
-
14293000110 Valve CapValve Cap
-
15293350040 Cone BearingCone Bearing
-
16293370019 CirclipCirclip
-
19293650138 Oetiker Gear ClampOetiker Gear Clamp
-
20705400036 Wear RingWear Ring
-
22705400962 TireTire
-
23705400193 Rim Valve With CapRim Valve With Cap
-
24705401183 RH Wheel Ass'yRH Wheel Ass'y
-
24705401184 LH Wheel Ass'yLH Wheel Ass'y
-
27705401318 Wheel CapWheel Cap
-
31705500504 Fill Level PlugFill Level Plug
-
32705500506 Copper WasherCopper Washer
-
37705501724 Plug DrainPlug Drain
-
39705501123 ProtectorProtector
-
40705501124 Wear RingWear Ring
-
45715900118 Rubber BootRubber Boot
-
46715900184 Grease FittingGrease Fitting
-
47715900233 Fixed YokeFixed Yoke
-
49705501720 Drive Axle Ass'yDrive Axle Ass'y
-
54705501485 LH Homocinetic JointLH Homocinetic Joint
-
54705501486 RH Homocinetic JointRH Homocinetic Joint
-
56705501541 RH Rear CoverRH Rear Cover
-
57705501542 LH Rear CoverLH Rear Cover
-
58703500848 Kit Gear 10/36 TeethKit Gear 10/36 Teeth
-
59703500848 Kit Gear 10/36 TeethKit Gear 10/36 Teeth
-
62705501549 NutNut
-
63705501550 NutNut
-
64705501554 O-RingO-Ring
-
65705501556 Oil SealOil Seal
-
66705501557 Oil SealOil Seal
-
67705501562 BoltBolt
-
69705501584 Breather TubeBreather Tube
-
70705501711 O-RingO-Ring
-
71705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
73705502090 Rear Differential Ass'yRear Differential Ass'y
-
74705501761 Inner RingInner Ring
-
75703500836 Needle Bearing Ass'yNeedle Bearing Ass'y
-
76705401185 RimRim
-
78705501776 CV JointCV Joint
-
79715500371 Universal JointUniversal Joint
-
80509000045 Oetiker Gear ClampOetiker Gear Clamp
-
82715900234 Fixe JointFixe Joint
-
89a705501780 Plunging JointPlunging Joint
-
89b705501781 CirclipCirclip
-
90705501777 Rubber Boot KitRubber Boot Kit
-
91715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
92715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
94705501842 Joint ProtectorJoint Protector
-
95415080200 Hose, PolyurethaneHose, Polyurethane
-
96293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
101703500835 Differential Shim KitDifferential Shim Kit
