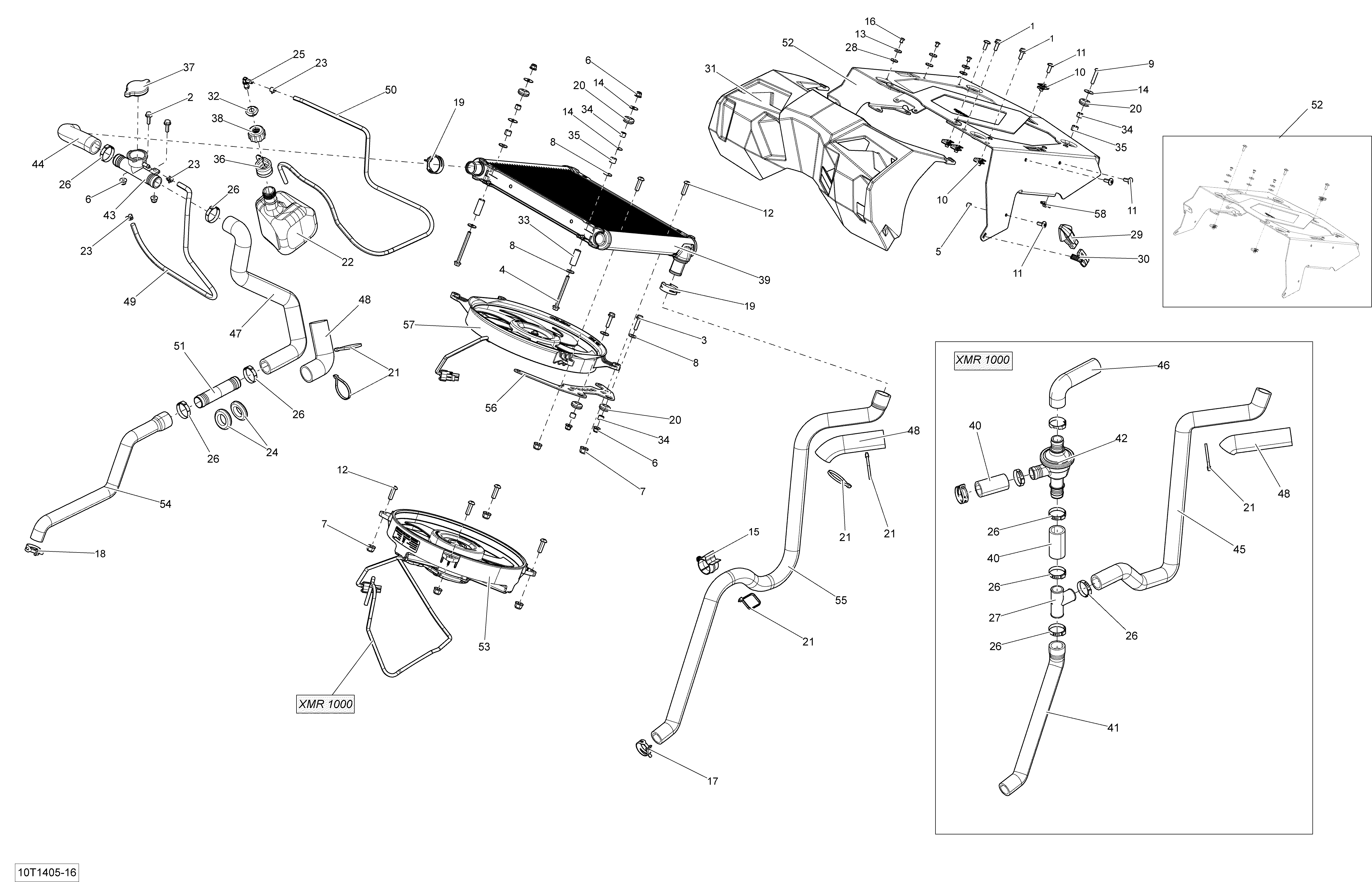

01- Cooling System для BRP Outlander 1000EFI XMR - 2014
‹-+›
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9235563054 Torx Screw M6 X 30Torx Screw M6 X 30
-
10250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
11250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
12250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
13250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
14250200040 Flat WasherFlat Washer
-
15275500590 RetainerRetainer
-
16293150102 Rivet 3/16Rivet 3/16
-
17293650108 Norma Spring ClampNorma Spring Clamp
-
19293650166 Norma Spring ClampNorma Spring Clamp
-
20293720062 GrommetGrommet
-
21414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
22709200504 Coolant TankCoolant Tank
-
23414554800 Spring ClampSpring Clamp
-
24293720096 GrommetGrommet
-
25414580700 Male ConnectorMale Connector
-
26509000162 Gear ClampGear Clamp
-
27509000219 T-FittingT-Fitting
-
28517124300 WasherWasher
-
29860200239 Black Latch KitBlack Latch Kit
-
30517303981 Panel LatchPanel Latch
-
31703100399 Protection Cover KitProtection Cover Kit
-
32705003264 GrommetGrommet
-
33705202499 BushingBushing
-
34707000058 SpacerSpacer
-
35708001129 BushingBushing
-
36709200036 Hose AnchorHose Anchor
-
37709200207 Pressure CapPressure Cap
-
38548872589 Coolant Reserve Tank CapCoolant Reserve Tank Cap
-
39709200286 RadiatorRadiator
-
40709200299 HoseHose
-
41709200392 HoseHose
-
42709200406 ThermostatThermostat
-
43709200422 Filler NeckFiller Neck
-
44709200426 HoseHose
-
45709200427 Outlet HoseOutlet Hose
-
46709200428 Outlet HoseOutlet Hose
-
47709200429 Outlet HoseOutlet Hose
-
48515176260 Tubing 35mmTubing 35mm
-
49415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
50415080200 Hose, PolyurethaneHose, Polyurethane
-
51709200448 Nipple Tube 1''Nipple Tube 1''
-
52709200451 Radiator Support Ass'yRadiator Support Ass'y
-
53709200458 Fan Ass'yFan Ass'y
-
56709200495 SupportSupport
-
58715900148 Clip Nut M6 X 1Clip Nut M6 X 1
