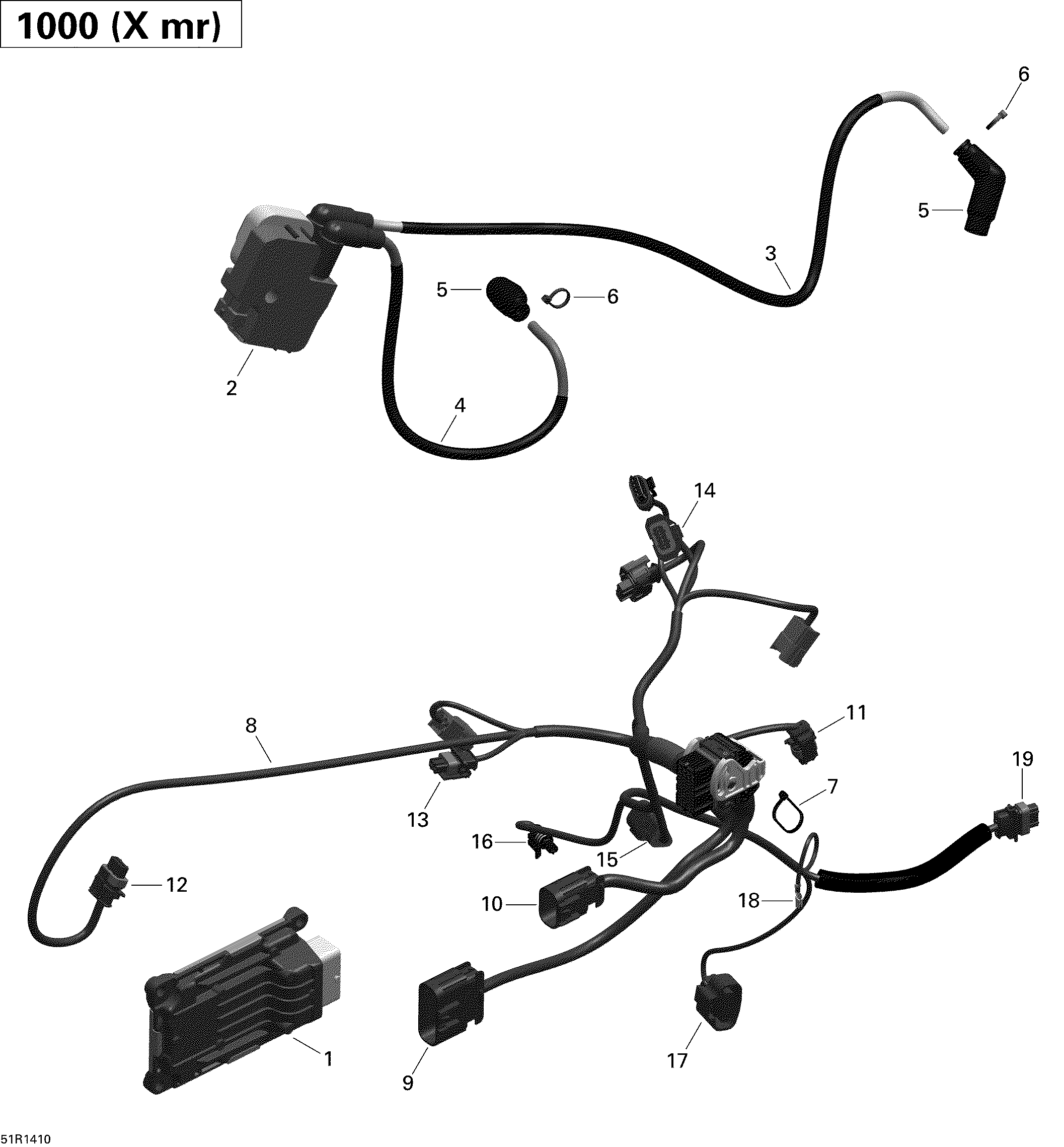

10- Engine Harness And Electronic Module для BRP Outlander 1000EFI XMR - 2014
-
№АртикулНазвание
-
1420266966 ECM ConnectorECM Connector
-
2278001546 Ignition CoilIgnition Coil
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8420666502 Engine Wiring Harness Ass'y. Includes 8 to 19Engine Wiring Harness Ass'y. Includes 8 to 19
-
11278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
12278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
13278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
14278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
15409207000 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
17710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
19278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
