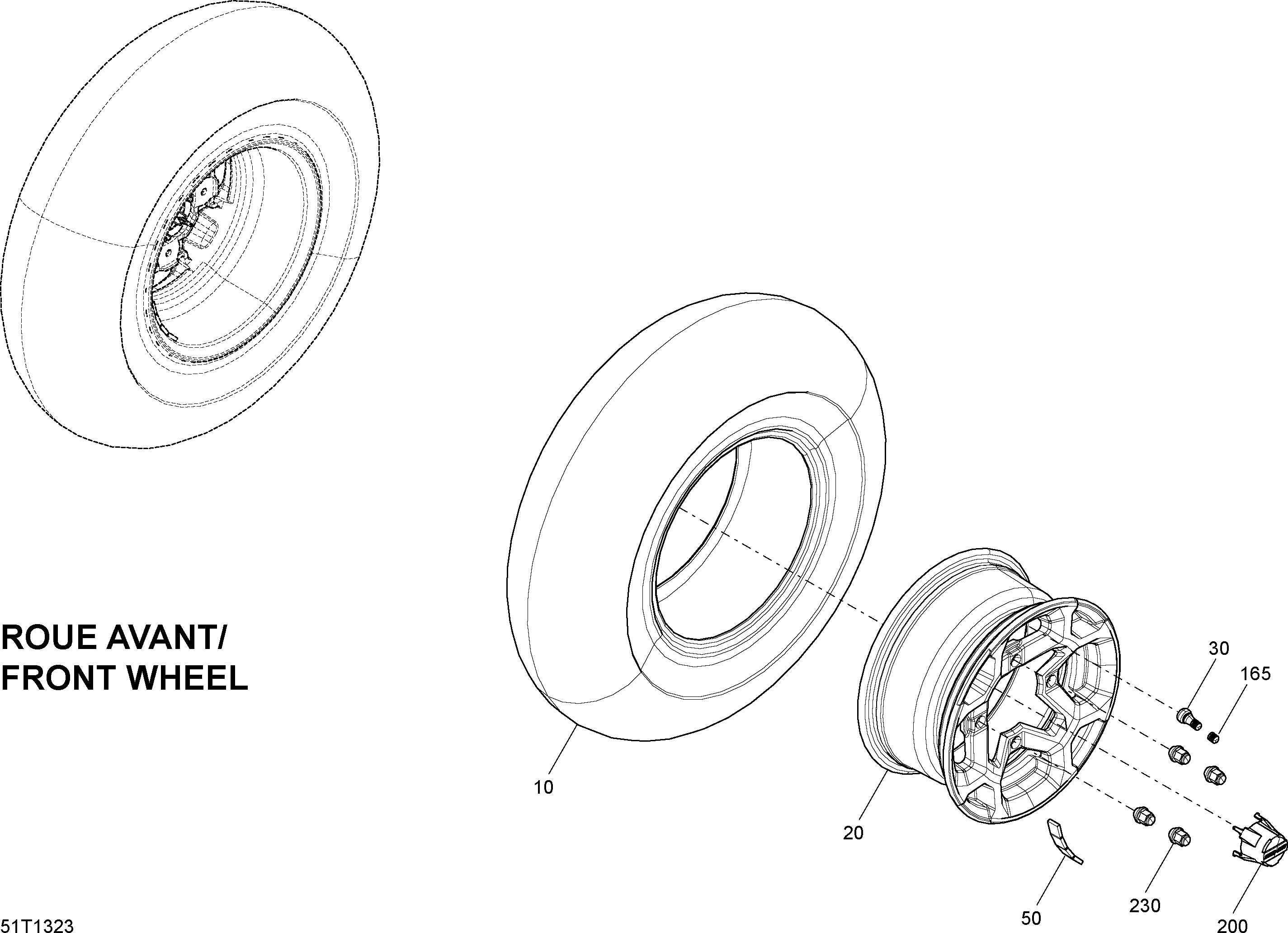

07- Wheels And Tires Front для BRP Outlander 650EFI XMR - 2013
-
№АртикулНазвание
-
10705401391 Front TireFront Tire
-
20705401078 Black Front RimBlack Front Rim
-
30705400193 Rim Valve With CapRim Valve With Cap
-
50705501385 1/2 OZ Weight1/2 OZ Weight
-
165293000110 Valve CapValve Cap
-
200705400928 Wheel CapWheel Cap
-
230250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
