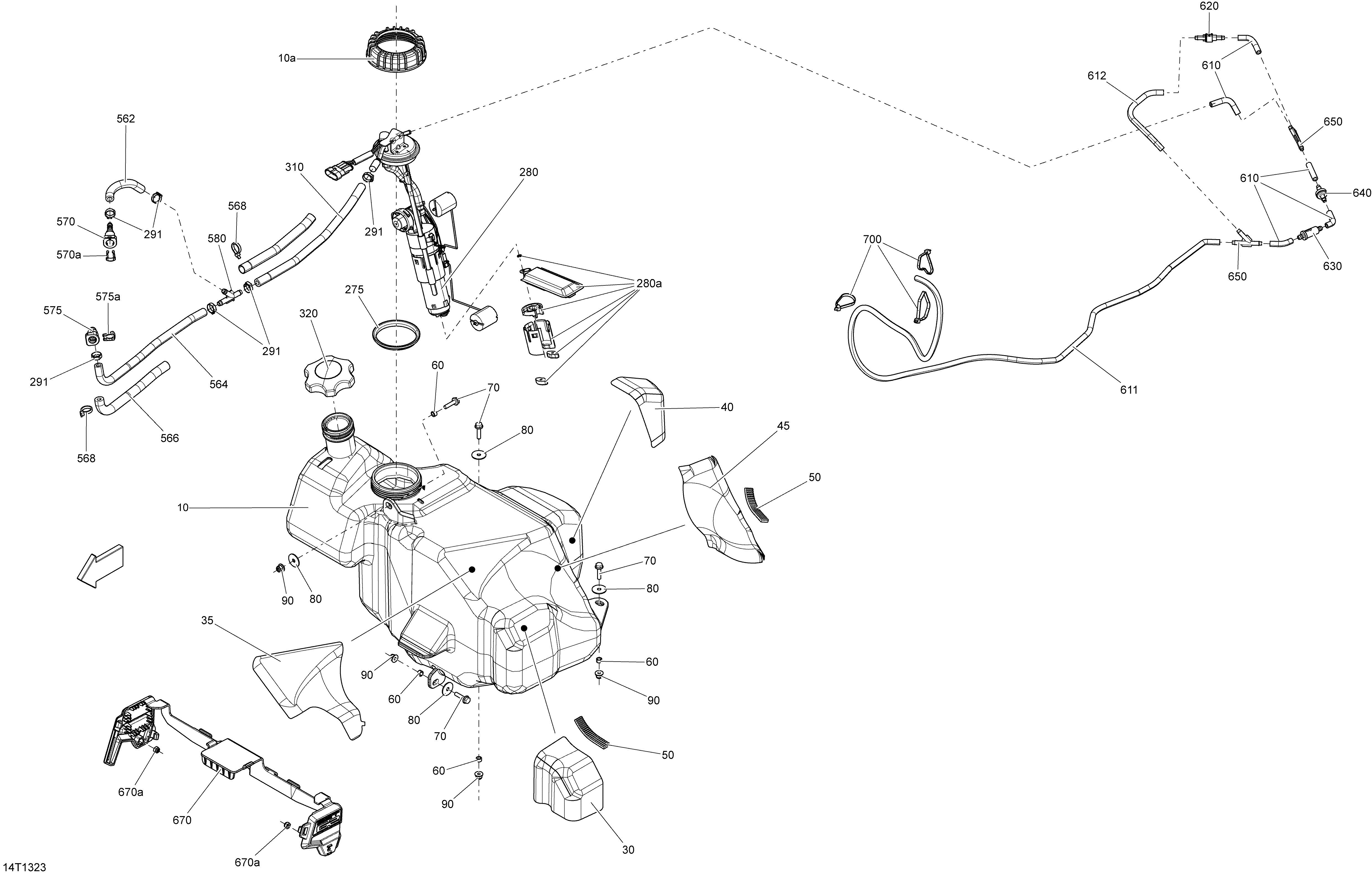

02- Fuel System для BRP Outlander 650EFI XMR - 2013

  • №
    Артикул
    Название
  • 10
    709000310 Fuel Tank Ass'y. Includes 10 to 10a
    Fuel Tank Ass'y. Includes 10 to 10a
  • 10a
    709000328 Fuel Pump Module Nut
    Fuel Pump Module Nut
  • 30
    709000381 Heat Reflective Sheet
    Heat Reflective Sheet
  • 35
    709000387 Heat Reflective Sheet
    Heat Reflective Sheet
  • 40
    709000382 Heat Reflective Sheet
    Heat Reflective Sheet
  • 45
    709000388 Heat Reflective Sheet
    Heat Reflective Sheet
  • 50
    293830129 Rubber Pad
    Rubber Pad
  • 60
    293900104 Bushing
    Bushing
  • 70
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 80
    224060251 Washer
    Washer
  • 90
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 275
    709000208 Seal
    Seal
  • 280
    709000287 Fuel Pump Module Ass'y. Includes 280 to 280a
    Fuel Pump Module Ass'y. Includes 280 to 280a
  • 280a
    709000389 Fuel Pre-Filter Kit
    Fuel Pre-Filter Kit
  • 291
    293650046 Oetiker Clamp
    Oetiker Clamp
  • 310
    709000393 Fuel Line
    Fuel Line
  • 320
    513033025 Fuel Tank Cap
    Fuel Tank Cap
  • 562
    709000393 Fuel Line
    Fuel Line
  • 564
    709000393 Fuel Line
    Fuel Line
  • 566
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 568
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 570
    709000125 Female Quick Fitting Ass'y. Includes 570 to 570a
    Female Quick Fitting Ass'y. Includes 570 to 570a
  • 570a
    513033135 Locking Clip
    Locking Clip
  • 575
    415128965 Quick Fitting 90° Ass'y. Includes 575 to 575a
    Quick Fitting 90° Ass'y. Includes 575 to 575a
  • 575a
    513033135 Locking Clip
    Locking Clip
  • 580
    293710136 Y-Fitting, 5/16''
    Y-Fitting, 5/16''
  • 610
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 611
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 612
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 620
    513033469 Check Valve
    Check Valve
  • 630
    709000330 Filter
    Filter
  • 640
    275500398 Check Valve
    Check Valve
  • 650
    293710059 Y-Fitting
    Y-Fitting
  • 670
    709000359 Hose Support Ass'y. Includes 670 to 670a
    Hose Support Ass'y. Includes 670 to 670a
  • 670a
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 700
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
