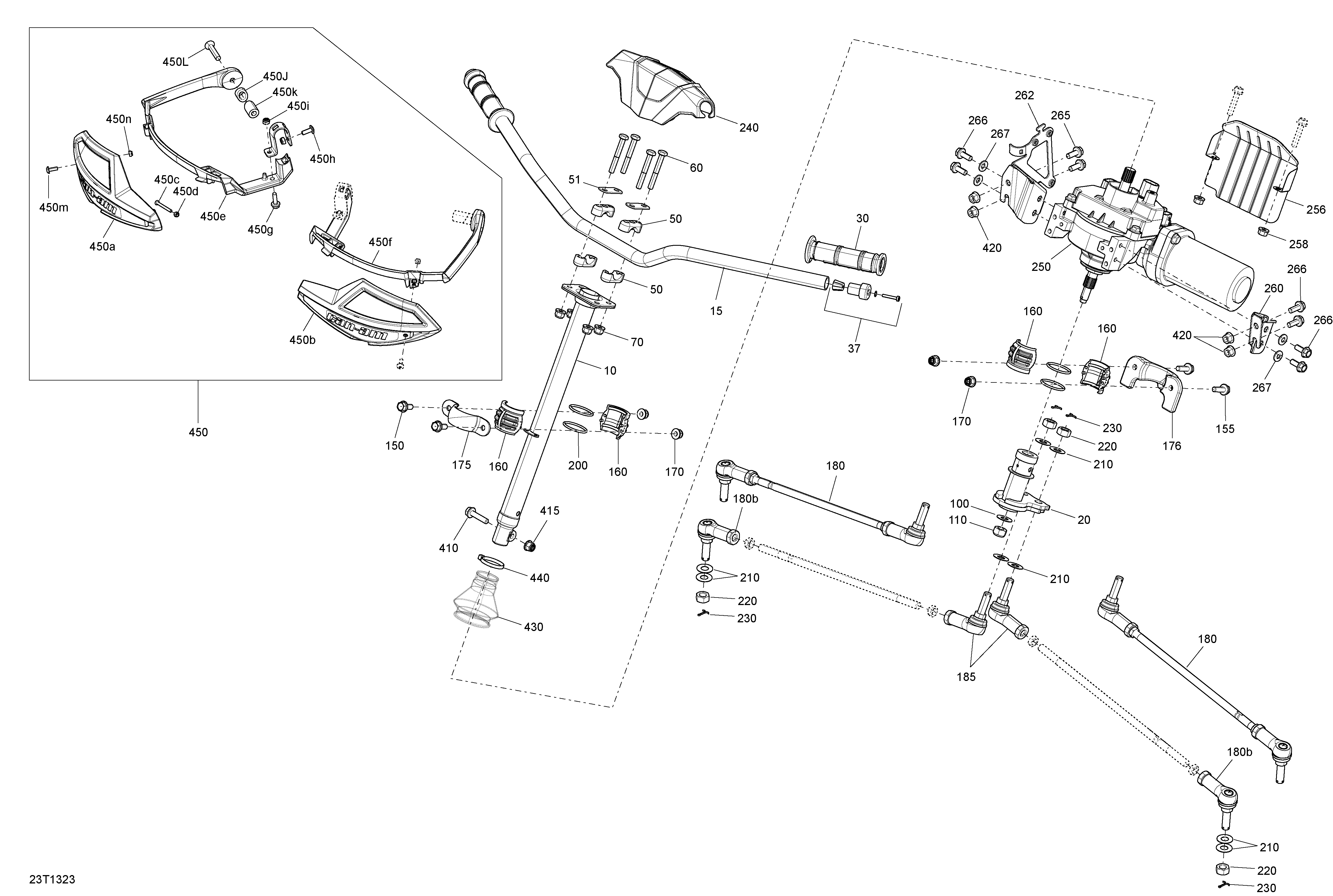

07- Steering для BRP Outlander 650EFI XMR - 2013

  • №
    Артикул
    Название
  • 10
    709400703 Upper Main Tube
    Upper Main Tube
  • 15
    709401240 Steering, Black
    Steering, Black
  • 20
    703500812 Pitman Kit
    Pitman Kit
  • 30
    709400493 Handle Grip
    Handle Grip
  • 37
    709400449 End Piece. North America
    End Piece. North America
  • 50
    709400919 Steering Support
    Steering Support
  • 51
    709400509 Stiffner
    Stiffner
  • 60
    207086046 Hex. Screw M8 X 60
    Hex. Screw M8 X 60
  • 70
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 100
    250200086 Flat Washer
    Flat Washer
  • 110
    250000047 Hex. Flanged Elastic Nut M12
    Hex. Flanged Elastic Nut M12
  • 150
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 155
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 160
    709400783 Spherical Half Bushing
    Spherical Half Bushing
  • 170
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 175
    709400827 Upper Column Attachment
    Upper Column Attachment
  • 176
    709400912 Lower Column Attachment
    Lower Column Attachment
  • 180
    703500783 Tie-Rod Ass'y
    Tie-Rod Ass'y
  • 180b
    709400486 Ball Joint, LH Threads
    Ball Joint, LH Threads
  • 185
    709400490 Ball Joint
    Ball Joint
  • 200
    293300068 O-Ring
    O-Ring
  • 210
    250200086 Flat Washer
    Flat Washer
  • 220
    250100099 Nut M12
    Nut M12
  • 230
    211400013 Cotter Pin
    Cotter Pin
  • 240
    709400939 Cover
    Cover
  • 250
    709401182 Power Steering Ass'y
    Power Steering Ass'y
  • 256
    709401005 Heat Deflector
    Heat Deflector
  • 258
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 260
    709400848 Power Steering Module Bracket
    Power Steering Module Bracket
  • 262
    709400994 RH Steering Bracket
    RH Steering Bracket
  • 265
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 266
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 267
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 410
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 415
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 420
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 430
    709400674 Bellows
    Bellows
  • 440
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 450a
    709400530 RH Air Deflector. International
    RH Air Deflector. International
  • 450b
    709400531 LH Air Deflector. International
    LH Air Deflector. International
  • 450c
    205444086 Socket Head Screw M4 X 40. International
    Socket Head Screw M4 X 40. International
  • 450d
    232541414 Elastic Stop Nut M4. International
    Elastic Stop Nut M4. International
  • 450d
    715000545 Deflector Support Kit. International
    Deflector Support Kit. International
  • 450e
    715001378 RH Deflector Support. International
    RH Deflector Support. International
  • 450f
    715000545 Deflector Support Kit. International
    Deflector Support Kit. International
  • 450g
    207662044 Hex. Flanged Screw M6 X 20. International
    Hex. Flanged Screw M6 X 20. International
  • 450h
    250000223 Torx Screw M6 X 16. International
    Torx Screw M6 X 16. International
  • 450i
    232561600 Hex. Elastic Stop Nut M6. International
    Hex. Elastic Stop Nut M6. International
  • 450j
    709400161 Bracket, Small. International
    Bracket, Small. International
  • 450k
    709400162 Bracket, Large. International
    Bracket, Large. International
  • 450l
    205384034 Socket Head Screw. International
    Socket Head Screw. International
  • 450m
    250000145 Torx Screw M5 X 14. International
    Torx Screw M5 X 14. International
  • 450n
    232551600 Hex. Elastic Nut M5. International
    Hex. Elastic Nut M5. International
