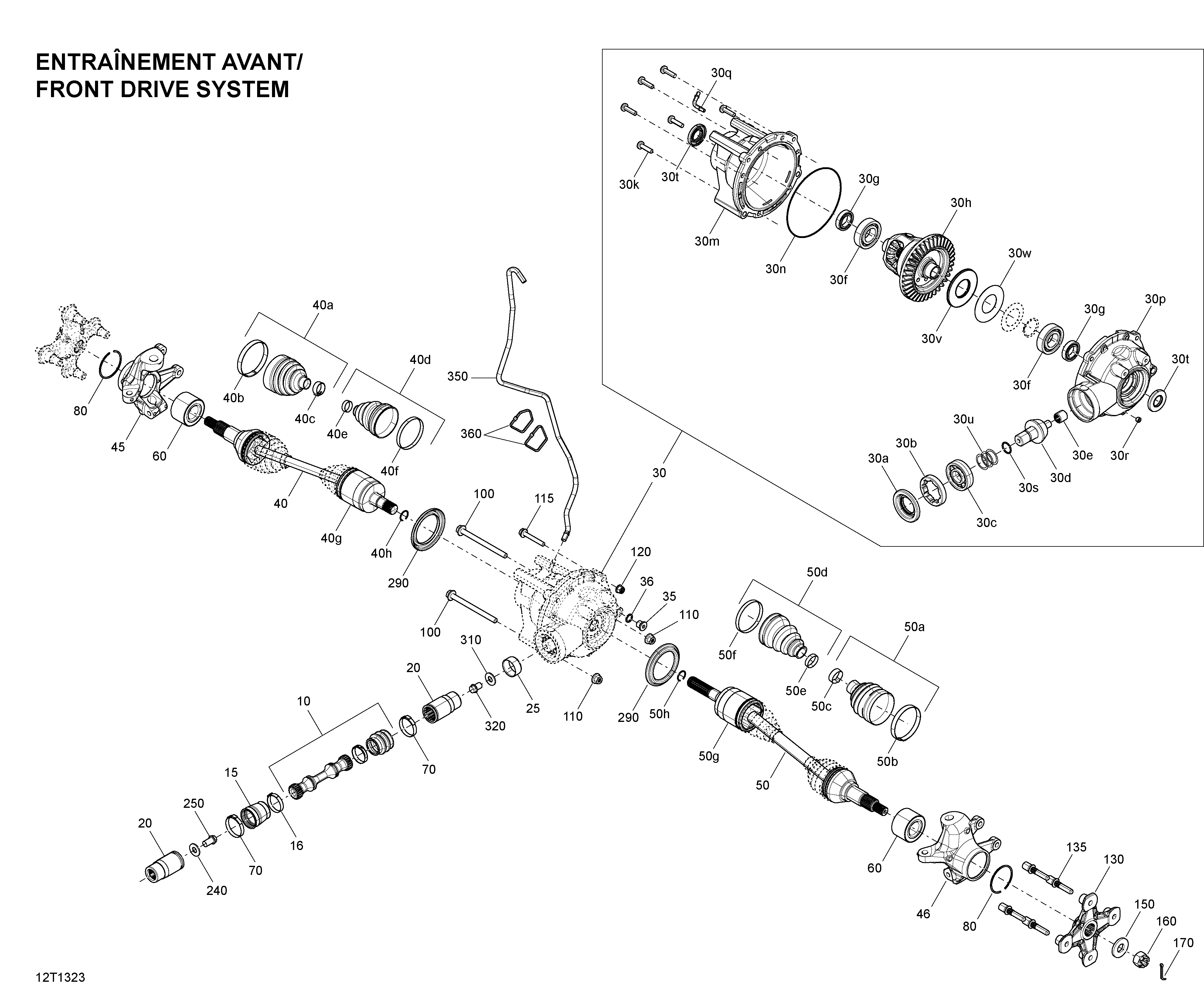

07- Drive System, Front для BRP Outlander 650EFI XMR - 2013
‹-+›
-
№АртикулНазвание
-
10705400913 Front Drive Axle Ass'y. Includes 10 to 10cFront Drive Axle Ass'y. Includes 10 to 10c
-
10a715900118 Rubber BootRubber Boot
-
10b509000045 Oetiker Gear ClampOetiker Gear Clamp
-
10c293650138 Oetiker ClampOetiker Clamp
-
15705401093 Rubber BootRubber Boot
-
16293650199 Oetiker ClampOetiker Clamp
-
20703500678 Front Bushing Shaft kitFront Bushing Shaft kit
-
25705400036 Wear RingWear Ring
-
30705401480 Front Differential Ass'y. Includes 30 to 30wFront Differential Ass'y. Includes 30 to 30w
-
30a705401481 Oil SealOil Seal
-
30b705400661 NutNut
-
30c705500260 Ball BearingBall Bearing
-
30d705501588 10 Teeth Pinion10 Teeth Pinion
-
30e705500261 Needle BearingNeedle Bearing
-
30f705500259 Ball BearingBall Bearing
-
30g293350044 Ball BearingBall Bearing
-
30h705400822 DifferentialDifferential
-
30k705500892 ScrewScrew
-
30m705400762 Front CoverFront Cover
-
30n705500265 SealSeal
-
30p705400761 Front CoverFront Cover
-
30q705500893 Vent ValveVent Valve
-
30r705500894 Drain PlugDrain Plug
-
30s705500267 O-RingO-Ring
-
30t705500255 Oil SealOil Seal
-
30u703500049 Pinion Shim KitPinion Shim Kit
-
30u705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
30u705501162 Pinion Gear ShimPinion Gear Shim
-
30v703500288 Differential Shim KitDifferential Shim Kit
-
30w703500050 Differential Shim KitDifferential Shim Kit
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40705401384 LH Homocinetic Joint. Includes 40 to 40hLH Homocinetic Joint. Includes 40 to 40h
-
40a705401354 Wheel Side Boot KitWheel Side Boot Kit
-
40b715900260 Oetiker Clamp, LargeOetiker Clamp, Large
-
40c715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40d705401355 Differential Side Boot KitDifferential Side Boot Kit
-
40e715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40f715900262 Oetiker Clamp, Large Dif.SideOetiker Clamp, Large Dif.Side
-
40g705401359 LH Plunging JointLH Plunging Joint
-
40h705401349 Circlip JointCirclip Joint
-
45705401290 LH KnuckleLH Knuckle
-
46705401291 RH KnuckleRH Knuckle
-
50705401383 RH Homocinetic Joint. Includes 50 to 50hRH Homocinetic Joint. Includes 50 to 50h
-
50a705401354 Wheel Side Boot KitWheel Side Boot Kit
-
50b715900260 Oetiker Clamp, LargeOetiker Clamp, Large
-
50c715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
50d705401355 Differential Side Boot KitDifferential Side Boot Kit
-
50e715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
50f715900262 Oetiker Clamp, Large Dif.SideOetiker Clamp, Large Dif.Side
-
50g705401357 RH Plunging JointRH Plunging Joint
-
50h705401349 Circlip JointCirclip Joint
-
60293350040 Cone BearingCone Bearing
-
70293650138 Oetiker ClampOetiker Clamp
-
80293370019 CirclipCirclip
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
110233201436 Flanged Elastic NutFlanged Elastic Nut
-
115207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
120233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
130705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
135250300048 Wheel StudWheel Stud
-
150250200049 Spring WasherSpring Washer
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
170250400036 Cotter PinCotter Pin
-
240250200102 Flat Washer M12Flat Washer M12
-
250250000540 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
290705400780 Wear SleeveWear Sleeve
-
310250200102 Flat Washer M12Flat Washer M12
-
320250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
350415080200 Hose, PolyurethaneHose, Polyurethane
-
360414115200 Tie-Rap 180 mmTie-Rap 180 mm
