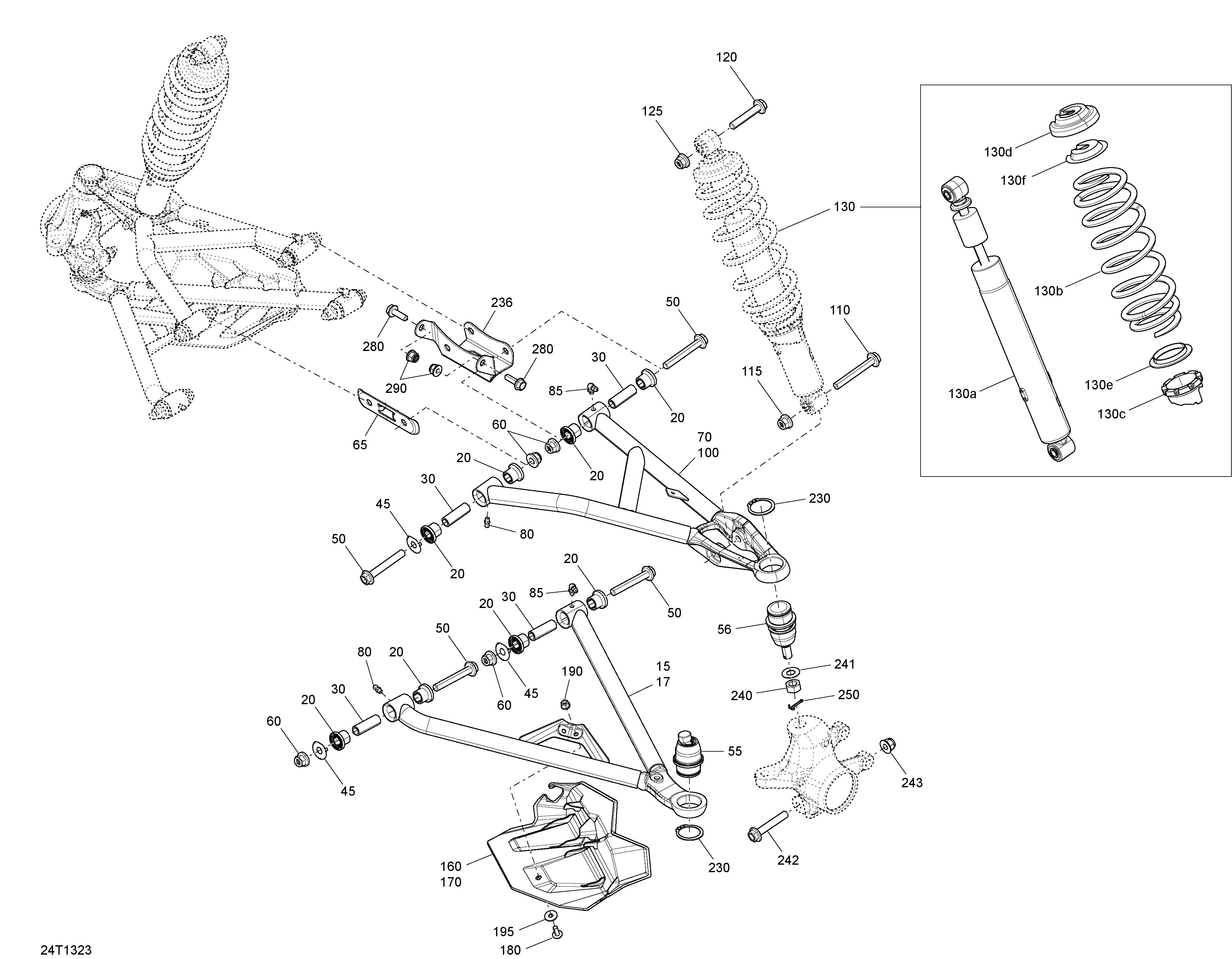

07- Front Suspension для BRP Outlander 650EFI XMR - 2013
-
№АртикулНазвание
-
15706200955 LH Lower ArmLH Lower Arm
-
17706200984 RH Lower ArmRH Lower Arm
-
20706200181 CushionCushion
-
30706201587 Inner BushingInner Bushing
-
45706201063 Wear PlateWear Plate
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55706201393 Ball JointBall Joint
-
56706201394 Ball JointBall Joint
-
60233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
65706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
70706201797 Black RH Upper ArmBlack RH Upper Arm
-
80408200700 Grease FittingGrease Fitting
-
85293550056 Grease Fitting 90°Grease Fitting 90°
-
100706201796 Black LH Upper ArmBlack LH Upper Arm
-
110207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
115233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
120207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
125233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
130a706201170 Shock AbsorberShock Absorber
-
130b706201769 Front Painted SpringFront Painted Spring
-
130c505070150 Adjustment CamAdjustment Cam
-
130d706200881 Spring StopperSpring Stopper
-
130e503187500 Spring GuideSpring Guide
-
130f706200785 CapCap
-
160706201829 LH Joint ProtectorLH Joint Protector
-
170706201830 RH Joint ProtectorRH Joint Protector
-
180250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
190233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
195234062670 Flat WasherFlat Washer
-
230293370035 CirclipCirclip
-
236705203247 Upper Front HolderUpper Front Holder
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
242207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
243233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
250211400017 Cotter PinCotter Pin
-
280207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
