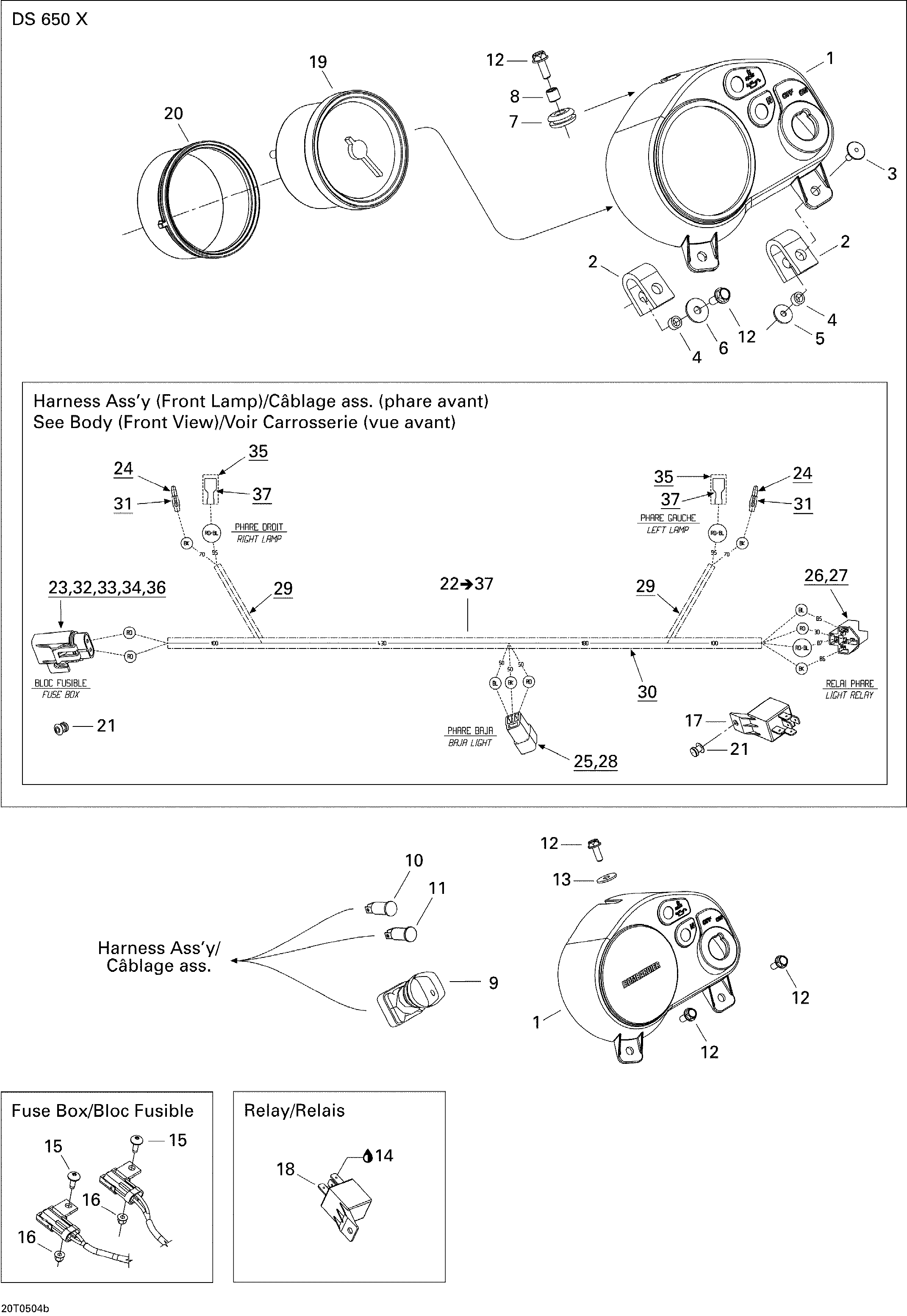

10- Electrical System 2 для BRP DS 650/DS 650 X - 2005
-
№АртикулНазвание
-
1710000060 Dashboard. DS 650Dashboard. DS 650
-
1710000250 Dashboard. DS 650 XDashboard. DS 650 X
-
2710000505 Holder. DS 650 XHolder. DS 650 X
-
3390409600 Pop-rivet 3/16''. DS 650 XPop-rivet 3/16''. DS 650 X
-
4293900029 Bushing. DS 650 XBushing. DS 650 X
-
5517124300 Washer. DS 650 XWasher. DS 650 X
-
6224061201 Flat Washer. DS 650 XFlat Washer. DS 650 X
-
7293720053 Grommet. DS 650 XGrommet. DS 650 X
-
8293900045 Bushing. DS 650 XBushing. DS 650 X
-
9710000075 Ignition SwitchIgnition Switch
-
9710000137 Blank Key (''A'' Type)Blank Key (''A'' Type)
-
9710000101 Blank Key (''B'' Type)Blank Key (''B'' Type)
-
10710000062 Pilot LampPilot Lamp
-
11710000063 Pilot LampPilot Lamp
-
12210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
13224061201 Flat Washer. DS 650Flat Washer. DS 650
-
14293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
15732600030 ScrewScrew
-
16233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
17410113200 Relay. DS 650 XRelay. DS 650 X
-
18410113200 RelayRelay
-
19710000426 Tachometer. DS 650 XTachometer. DS 650 X
-
20710000427 Gauge Support. DS 650 XGauge Support. DS 650 X
-
21390402000 Pop Rivet 3/16''. DS 650 XPop Rivet 3/16''. DS 650 X
-
22710000256 Harness Ass'Y. DS 650 X / Includes 22 to 37Harness Ass'Y. DS 650 X / Includes 22 to 37
-
23278000805 CushionCushion
-
24278000230 Male TerminalMale Terminal
-
25409210000 Male TerminalMale Terminal
-
26409209900 Female Housing (5 Circuits)Female Housing (5 Circuits)
-
27561503100 Female TerminalFemale Terminal
-
28409204200 Female HousingFemale Housing
-
29515175442 Tubing 6 mmTubing 6 mm
-
30409901700 Tubing 9 mmTubing 9 mm
-
31278001008 Insulated SheathInsulated Sheath
-
32278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
33278001326 Fuse Holder CapFuse Holder Cap
-
34278001325 Fuse HolderFuse Holder
-
35710000115 Rubber Envelope TerminalRubber Envelope Terminal
-
36710000113 Female TerminalFemale Terminal
-
37710000114 Female TerminalFemale Terminal
