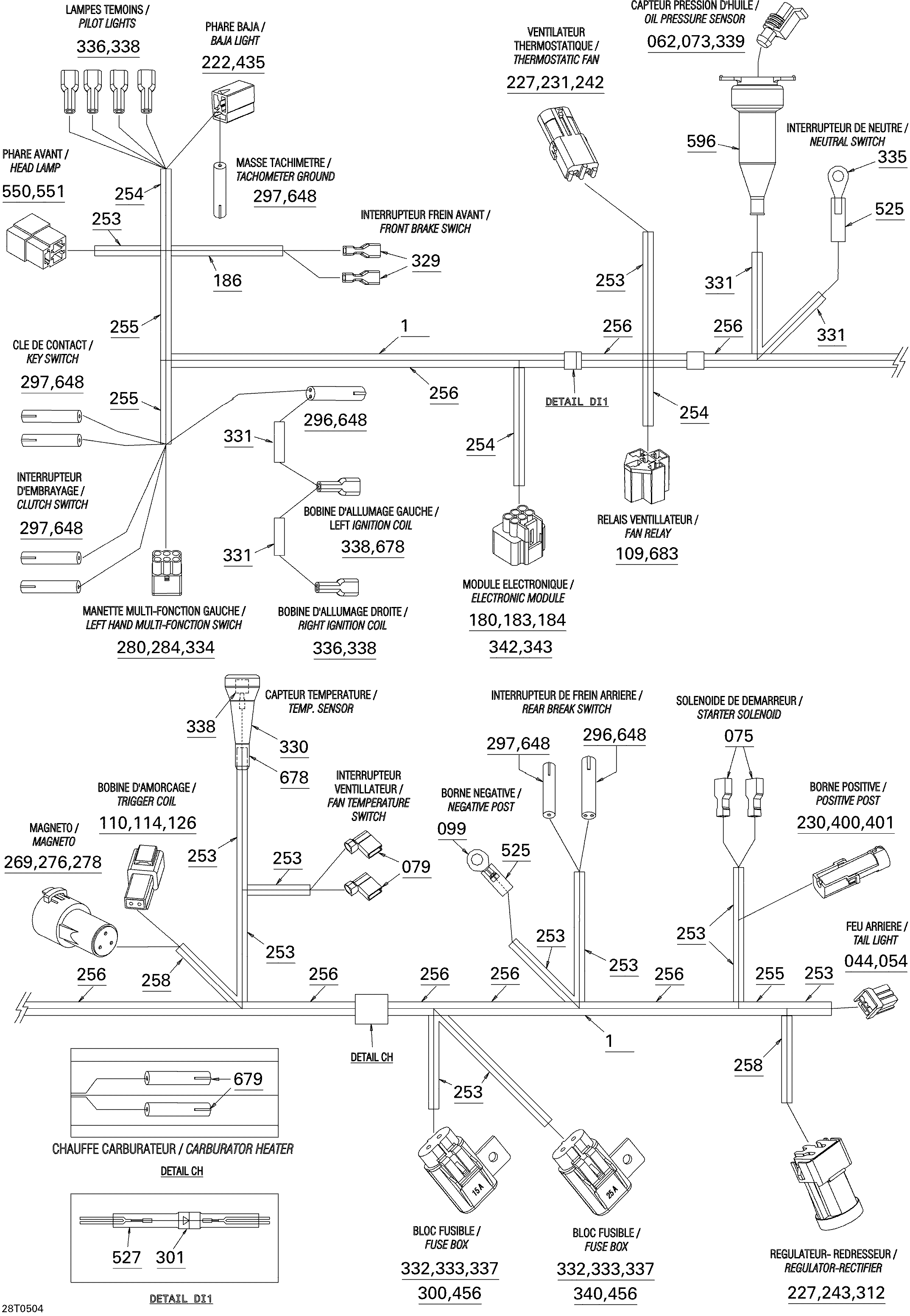

10- Electrical Harness, Frame для BRP DS 650/DS 650 X - 2005

  • №
    Артикул
    Название
  • 1
    710000669 Harness Ass'y. Includes 1 to 683
    Harness Ass'y. Includes 1 to 683
  • 44
    515175231 Female Terminal 16-20 Awg
    Female Terminal 16-20 Awg
  • 54
    515175495 Female Housing (3 Circuits)
    Female Housing (3 Circuits)
  • 62
    278001014 Female Terminal
    Female Terminal
  • 73
    278001013 Wire Seal
    Wire Seal
  • 75
    409010700 Female Terminal
    Female Terminal
  • 79
    710000038 Female Terminal
    Female Terminal
  • 99
    278000992 Ring Terminal
    Ring Terminal
  • 109
    409209900 Female Housing (5 Circuits)
    Female Housing (5 Circuits)
  • 110
    278000631 Male Terminal
    Male Terminal
  • 114
    409206900 Male Terminal Housing (2 Circuits)
    Male Terminal Housing (2 Circuits)
  • 126
    409207500 Male Lock (2 Circuits)
    Male Lock (2 Circuits)
  • 180
    278001638 Female Terminal
    Female Terminal
  • 183
    710000189 Wire Seal
    Wire Seal
  • 184
    710000668 Cap
    Cap
  • 186
    515175332 Vinyl Tubing (low Temperature)
    Vinyl Tubing (low Temperature)
  • 222
    409204300 Female Terminal Housing (3 Circuits)
    Female Terminal Housing (3 Circuits)
  • 227
    409004300 Male Terminal
    Male Terminal
  • 230
    278000161 Female Terminal Housing (1 Circ.)
    Female Terminal Housing (1 Circ.)
  • 231
    278000217 Female Terminal Housing (2 Circuits)
    Female Terminal Housing (2 Circuits)
  • 242
    278000218 Wire Seal
    Wire Seal
  • 243
    710000048 Wire Seal
    Wire Seal
  • 253
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 254
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 255
    409901800 Tubing
    Tubing
  • 256
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 258
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 269
    409011100 Male Terminal
    Male Terminal
  • 276
    409207900 Male Terminal Housing (3 Circuits)
    Male Terminal Housing (3 Circuits)
  • 278
    409208500 Seal
    Seal
  • 280
    409012100 Female Terminal
    Female Terminal
  • 284
    409012300 Seal
    Seal
  • 296
    278000770 Insulated Sheet
    Insulated Sheet
  • 297
    278001007 Insulated Sheet
    Insulated Sheet
  • 300
    278000343 Fuse (15 Amperes)
    Fuse (15 Amperes)
  • 301
    409012700 Diode
    Diode
  • 312
    710000107 Male Terminal Housing (5 Circuits)
    Male Terminal Housing (5 Circuits)
  • 329
    710000082 Female Terminal
    Female Terminal
  • 330
    278001484 Rubber Cap
    Rubber Cap
  • 331
    710000244 Protector Tube 4 mm
    Protector Tube 4 mm
  • 332
    278001326 Fuse Holder Cap
    Fuse Holder Cap
  • 333
    278001325 Fuse Holder
    Fuse Holder
  • 334
    710000081 Female Terminal Housing (6 Circuits)
    Female Terminal Housing (6 Circuits)
  • 335
    710000112 Ring Terminal
    Ring Terminal
  • 336
    710000115 Rubber Envelope Terminal
    Rubber Envelope Terminal
  • 337
    710000113 Female Terminal
    Female Terminal
  • 338
    710000114 Female Terminal
    Female Terminal
  • 339
    278001012 Male Terminal Housing (1 Circuit)
    Male Terminal Housing (1 Circuit)
  • 340
    278001443 Fuse 25 Amp.
    Fuse 25 Amp.
  • 342
    710000190 Female Terminal Housing (6 Circuits)
    Female Terminal Housing (6 Circuits)
  • 343
    710000191 Locking Wage (6 Circuits)
    Locking Wage (6 Circuits)
  • 400
    278001576 Male Terminal
    Male Terminal
  • 401
    278001505 Wire Seal
    Wire Seal
  • 435
    409009500 Female Terminal
    Female Terminal
  • 456
    278000805 Cushion
    Cushion
  • 525
    710000482 Shrink Tubing
    Shrink Tubing
  • 527
    710000484 Shrink Tubing
    Shrink Tubing
  • 550
    710000499 Female Housing
    Female Housing
  • 551
    710000500 Male Terminal
    Male Terminal
  • 596
    710000670 Cap
    Cap
  • 648
    278001009 Female Terminal
    Female Terminal
  • 678
    710000750 Shrink Tubing
    Shrink Tubing
  • 679
    710000751 Shrink Tubing
    Shrink Tubing
  • 683
    710000766 Terminal
    Terminal
