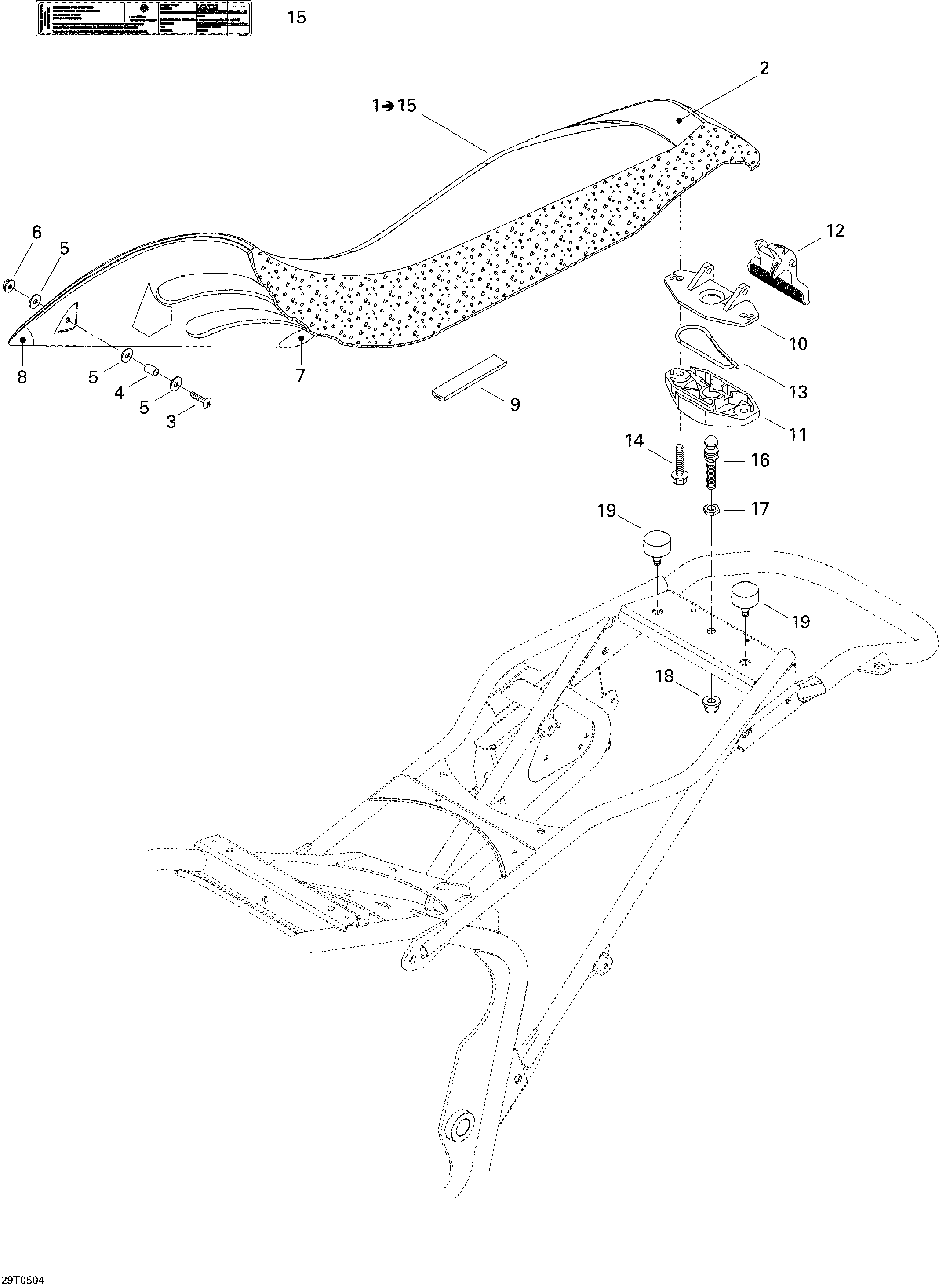

09- Seat для BRP DS 650/DS 650 X - 2005
-
№АртикулНазвание
-
1708000333 Seat Ass'y. DS 650 X / Includes 1 to 15Seat Ass'y. DS 650 X / Includes 1 to 15
-
1708000352 Seat Ass'y. DS 650 / Includes 1 to 15Seat Ass'y. DS 650 / Includes 1 to 15
-
2708000334 Seat CoverSeat Cover
-
2708000353 Seat Cover (red)Seat Cover (red)
-
3250000046 Screw M6 X 30Screw M6 X 30
-
4708000049 SpacerSpacer
-
5224061201 Flat WasherFlat Washer
-
6233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
7708000127 Seat CornerSeat Corner
-
7708000155 Seat CornerSeat Corner
-
8708000128 LH Seat CornerLH Seat Corner
-
8708000156 Seat CornerSeat Corner
-
8708000129 RH Seat CornerRH Seat Corner
-
8708000157 Seat CornerSeat Corner
-
9293200020 Seal (Meter)Seal (Meter)
-
10269700076 Latch CoverLatch Cover
-
11269000015 Latch BaseLatch Base
-
12269700077 Latch LeverLatch Lever
-
13269700017 Latch SpringLatch Spring
-
14207562044 Flanged Screw M6 X 20 (Scotch Grip)Flanged Screw M6 X 20 (Scotch Grip)
-
15704900774 Emission LabelEmission Label
-
16291000689 Latch StudLatch Stud
-
17232100600 Hex Jam Nut M10Hex Jam Nut M10
-
18233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
19708000006 Rubber StopperRubber Stopper
