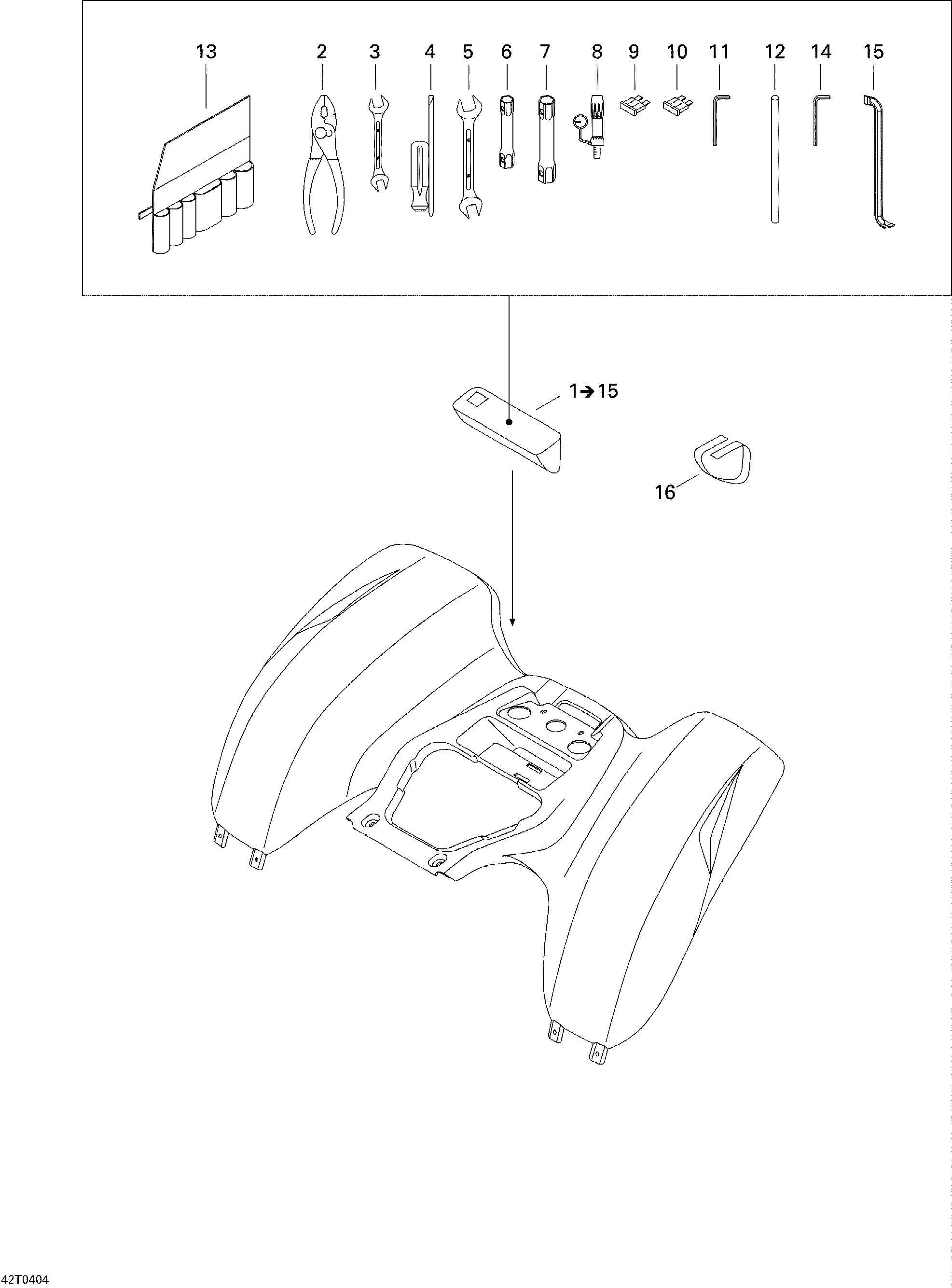

09- Rear Cargo Box для BRP DS 650/DS 650 X - 2005
-
№АртикулНазвание
-
1529000000 Tool Owner Kit. Includes 1 to 15Tool Owner Kit. Includes 1 to 15
-
3529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
4529000004 Driver ScrewDriver Screw
-
5529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
6529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
7295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
8704700003 Pressure GaugePressure Gauge
-
9278001443 Fuse 25 Amp.Fuse 25 Amp.
-
10278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
13520000047 Tool BagTool Bag
-
14529035781 Key Allen 3 mmKey Allen 3 mm
-
15708200032 Schock ScrewdriversSchock Screwdrivers
-
16708200008 StrapStrap
