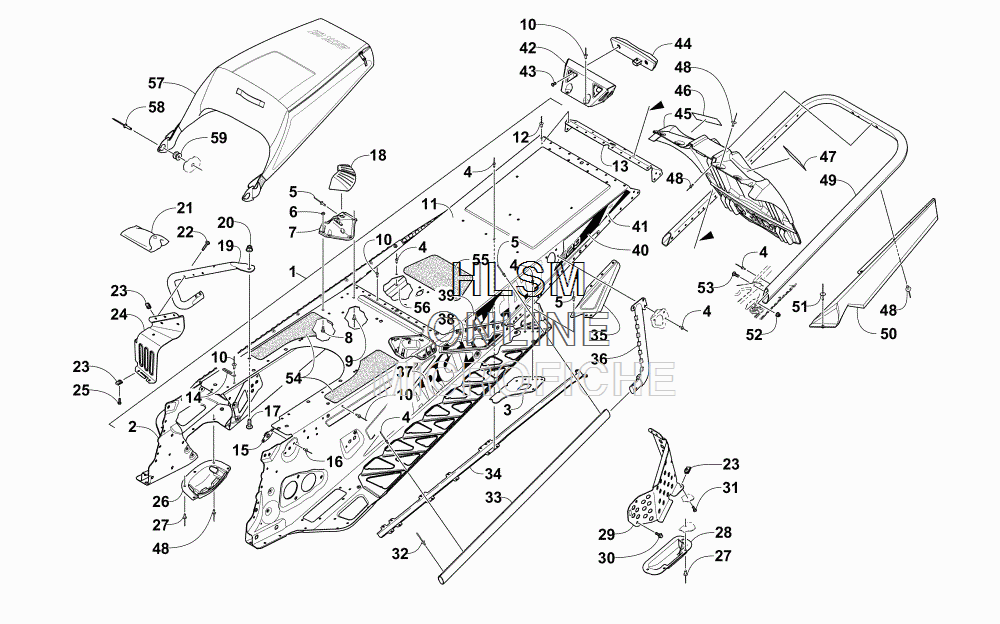

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 7000 129 LTD GREEN [S2016ZRULEUSG] - 2016 года выпуска
-
№АртикулНазвание
-
-2707-551 COMPLETE CHASSIS ASSEMBLY - GREENCOMPLETE CHASSIS ASSEMBLY - GREEN
-
12707-431 TUNNEL ASSEMBLY - GREEN (INC. 2-13)TUNNEL ASSEMBLY - GREEN (INC. 2-13)
-
22707-429 ...TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)
-
32707-318 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
-
32707-319 ......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
-
48060-706 ......RIVET - BLACK......RIVET - BLACK
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-736 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
-
71707-737 ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET - BLACK...RIVET - BLACK
-
112707-428 ...TUNNEL, REAR - GREEN...TUNNEL, REAR - GREEN
-
128060-504 ...RIVET...RIVET
-
131707-315 ...COMPLETE CHASSIS ASSEMBLY...COMPLETE CHASSIS ASSEMBLY
-
141623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
150608-631 PLATE, RETAININGPLATE, RETAINING
-
168060-708 RIVET - BLACKRIVET - BLACK
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
186606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
186606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
191707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
191707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
208427-802 NUT, LOCKNUT, LOCK
-
210744-088 KIT, TOOLKIT, TOOL
-
228468-535 SCREW, MACHINESCREW, MACHINE
-
231623-637 CLIP, U-NUTCLIP, U-NUT
-
242707-004 FOOTREST - RIGHT - GREENFOOTREST - RIGHT - GREEN
-
242707-005 FOOTREST - LEFT - GREENFOOTREST - LEFT - GREEN
-
258470-516 SCREW, MACHINESCREW, MACHINE
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
292707-042 SHIELD, BRAKE DISC - GREENSHIELD, BRAKE DISC - GREEN
-
308408-613 SCREW, CAPSCREW, CAP
-
318470-520 SCREW, MACHINESCREW, MACHINE
-
321623-130 RIVETRIVET
-
332707-346 ROLL, TUNNEL - GREENROLL, TUNNEL - GREEN
-
340630-315 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
351707-734 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
351707-735 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
362707-338 GUSSET, TUNNEL ROLL - RIGHT - GREENGUSSET, TUNNEL ROLL - RIGHT - GREEN
-
362707-339 GUSSET, TUNNEL ROLL - LEFT - GREENGUSSET, TUNNEL ROLL - LEFT - GREEN
-
372621-414 DECAL, TUNNEL - FRONT - RIGHT - GREENDECAL, TUNNEL - FRONT - RIGHT - GREEN
-
372621-415 DECAL, TUNNEL - FRONT - LEFT - GREENDECAL, TUNNEL - FRONT - LEFT - GREEN
-
382621-412 DECAL, TUNNEL - CENTER - RIGHT - GREENDECAL, TUNNEL - CENTER - RIGHT - GREEN
-
382621-413 DECAL, TUNNEL - CENTER - LEFT - GREENDECAL, TUNNEL - CENTER - LEFT - GREEN
-
392621-410 DECAL, TUNNEL - REAR - RIGHT - GREENDECAL, TUNNEL - REAR - RIGHT - GREEN
-
392621-411 DECAL, TUNNEL - REAR - LEFT - GREENDECAL, TUNNEL - REAR - LEFT - GREEN
-
402621-408 DECAL, TUNNEL - REAR - RIGHT - GREENDECAL, TUNNEL - REAR - RIGHT - GREEN
-
402621-409 DECAL, TUNNEL - REAR - LEFT - GREENDECAL, TUNNEL - REAR - LEFT - GREEN
-
410621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
420730-230 BRACKET, MOUNTING - TAILLIGHT - GREENBRACKET, MOUNTING - TAILLIGHT - GREEN
-
438470-510 SCREW, MACHINESCREW, MACHINE
-
440609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
456606-394 SNOWFLAP - BLACKSNOWFLAP - BLACK
-
465611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
475611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
488061-706 RIVETRIVET
-
492707-580 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
506606-870 FLARE, TUNNEL - RIGHT - BLACKFLARE, TUNNEL - RIGHT - BLACK
-
506606-871 FLARE, TUNNEL - LEFT - BLACKFLARE, TUNNEL - LEFT - BLACK
-
518060-710 RIVETRIVET
-
528427-602 NUT, LOCKNUT, LOCK
-
538476-620 SCREW, MACHINESCREW, MACHINE
-
546606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
546606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
556606-816 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
561607-454 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
577606-069 SADDLEBAGSADDLEBAG
-
588060-630 RIVETRIVET
-
591623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
