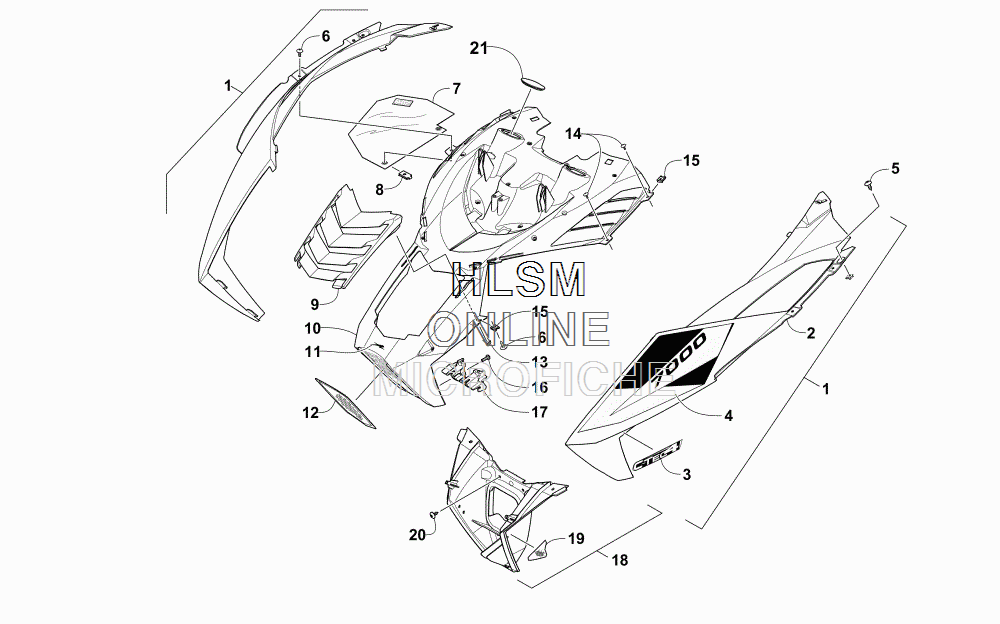

HOOD ASSEMBLY для Arctic Cat ZR 7000 129 LTD GREEN [S2016ZRULEUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-702 HOOD W/DECALS - RIGHT - GREEN (INC. 2-4
    HOOD W/DECALS - RIGHT - GREEN (INC. 2-4
  • 1
    4718-703 HOOD W/DECALS - LEFT - GREEN (INC. 2-4)
    HOOD W/DECALS - LEFT - GREEN (INC. 2-4)
  • 2
    6606-516 ...HOOD W/O DECALS - RIGHT - GREEN
    ...HOOD W/O DECALS - RIGHT - GREEN
  • 2
    6606-517 ...HOOD W/O DECALS - LEFT - GREEN
    ...HOOD W/O DECALS - LEFT - GREEN
  • 3
    0621-993 ...DECAL, HOOD - "C-TEC4"
    ...DECAL, HOOD - "C-TEC4"
  • 4
    2621-384 ...DECAL, HOOD - RIGHT - GREEN
    ...DECAL, HOOD - RIGHT - GREEN
  • 4
    2621-385 ...DECAL, HOOD - LEFT - GREEN
    ...DECAL, HOOD - LEFT - GREEN
  • 5
    0623-784 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 6
    1623-031 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    1712-899 SHIELD, HEAT - RIGHT
    SHIELD, HEAT - RIGHT
  • 8
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 9
    6606-388 GRILLE, INTERCOOLER
    GRILLE, INTERCOOLER
  • 10
    6606-510 PLENUM, INTAKE - UPPER
    PLENUM, INTAKE - UPPER
  • 11
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 12
    0608-696 SCREEN, VENT
    SCREEN, VENT
  • 13
    1623-694 CLIP, RETAINING
    CLIP, RETAINING
  • 14
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 16
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 18
    5706-992 PLENUM, INTAKE - LOWER FRONT (INC. 19)
    PLENUM, INTAKE - LOWER FRONT (INC. 19)
  • 19
    0621-989 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 20
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
