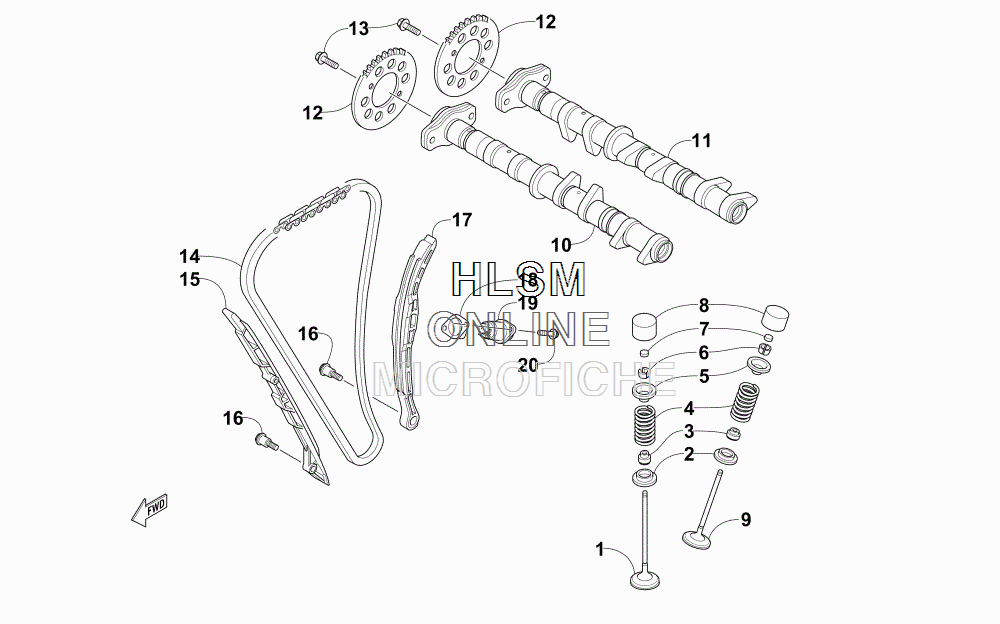

CAMSHAFT- CHAIN- AND VALVE ASSEMBLY для Arctic Cat ZR 7000 129 LTD GREEN [S2016ZRULEUSG] - 2016 года выпуска`
-
№АртикулНазвание
-
13020-236 VALVE, INTAKEVALVE, INTAKE
-
23020-237 SEAT, SPRINGSEAT, SPRING
-
33020-238 SEALSEAL
-
43020-239 SPRING, VALVESPRING, VALVE
-
53020-240 RETAINER, SPRINGRETAINER, SPRING
-
63020-241 COTTER, VALVECOTTER, VALVE
-
73020-242 SHIM, TAPPET - 1.20 MMSHIM, TAPPET - 1.20 MM
-
73020-243 SHIM, TAPPET - 1.25 MMSHIM, TAPPET - 1.25 MM
-
73020-244 SHIM, TAPPET - 1.30 MMSHIM, TAPPET - 1.30 MM
-
73020-245 SHIM, TAPPET - 1.35 MMSHIM, TAPPET - 1.35 MM
-
73020-246 SHIM, TAPPET - 1.40 MMSHIM, TAPPET - 1.40 MM
-
73020-247 SHIM, TAPPET - 1.45 MMSHIM, TAPPET - 1.45 MM
-
73020-248 SHIM, TAPPET - 1.50 MMSHIM, TAPPET - 1.50 MM
-
73020-249 SHIM, TAPPET - 1.55 MMSHIM, TAPPET - 1.55 MM
-
73020-250 SHIM, TAPPET - 1.60 MMSHIM, TAPPET - 1.60 MM
-
73020-251 SHIM, TAPPET - 1.65 MMSHIM, TAPPET - 1.65 MM
-
73020-252 SHIM, TAPPET - 1.70 MMSHIM, TAPPET - 1.70 MM
-
73020-253 SHIM, TAPPET - 1.75 MMSHIM, TAPPET - 1.75 MM
-
73020-254 SHIM, TAPPET - 1.80 MMSHIM, TAPPET - 1.80 MM
-
73020-255 SHIM, TAPPET - 1.85 MMSHIM, TAPPET - 1.85 MM
-
73020-256 SHIM, TAPPET - 1.90 MMSHIM, TAPPET - 1.90 MM
-
73020-257 SHIM, TAPPET - 1.95 MMSHIM, TAPPET - 1.95 MM
-
73020-258 SHIM, TAPPET - 2.00 MMSHIM, TAPPET - 2.00 MM
-
73020-259 SHIM, TAPPET - 2.05 MMSHIM, TAPPET - 2.05 MM
-
73020-260 SHIM, TAPPET - 2.10 MMSHIM, TAPPET - 2.10 MM
-
73020-261 SHIM, TAPPET - 2.15 MMSHIM, TAPPET - 2.15 MM
-
73020-262 SHIM, TAPPET - 2.20 MMSHIM, TAPPET - 2.20 MM
-
73020-263 SHIM, TAPPET - 2.25 MMSHIM, TAPPET - 2.25 MM
-
73020-264 SHIM, TAPPET - 2.30 MMSHIM, TAPPET - 2.30 MM
-
73020-265 SHIM, TAPPET - 2.35 MMSHIM, TAPPET - 2.35 MM
-
73020-266 SHIM, TAPPET - 2.40 MMSHIM, TAPPET - 2.40 MM
-
83020-267 TAPPET - YELLOWTAPPET - YELLOW
-
83020-268 TAPPET - GREENTAPPET - GREEN
-
93020-269 VALVE, EXHAUSTVALVE, EXHAUST
-
103020-270 CAMSHAFT, INTAKECAMSHAFT, INTAKE
-
113020-271 CAMSHAFT, EXHAUSTCAMSHAFT, EXHAUST
-
123020-272 SPROCKETSPROCKET
-
133020-273 SCREW, CAPSCREW, CAP
-
143020-274 CHAIN, CAMCHAIN, CAM
-
153020-275 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
163020-276 SCREW, SHOULDERSCREW, SHOULDER
-
173020-277 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
183020-278 GASKETGASKET
-
193020-279 ADJUSTER, TENSIONER - ASSEMBLYADJUSTER, TENSIONER - ASSEMBLY
-
203020-280 SCREW, CAPSCREW, CAP
