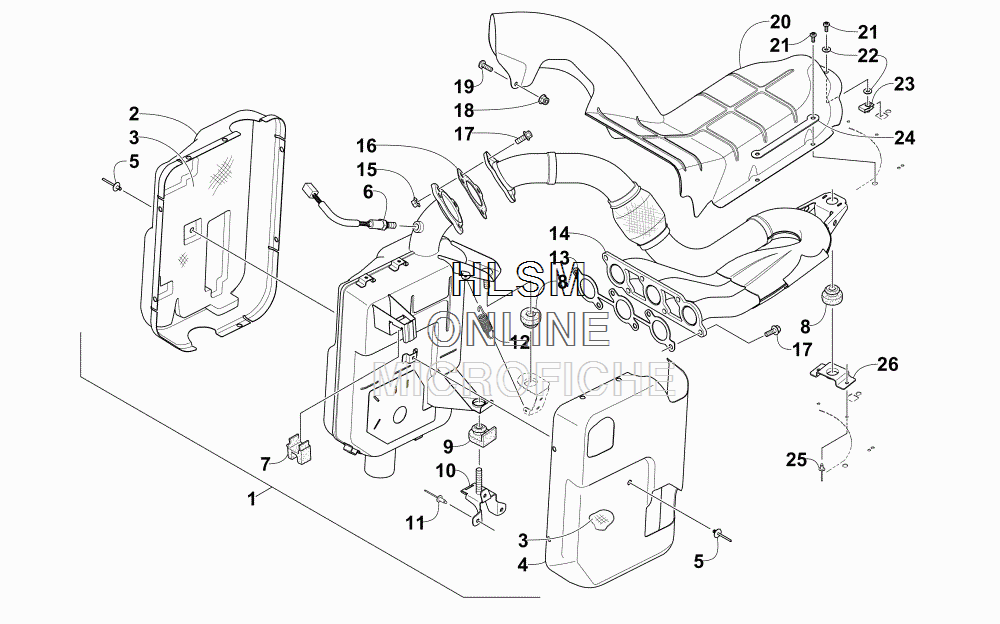

EXHAUST ASSEMBLY для Arctic Cat ZR 7000 129 LTD GREEN [S2016ZRULEUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1712-964 RESONATOR, EXHAUST - ASSEMBLY (INC. 2-5)
    RESONATOR, EXHAUST - ASSEMBLY (INC. 2-5)
  • 2
    2612-822 ...SHIELD, HEAT - RIGHT
    ...SHIELD, HEAT - RIGHT
  • 3
    2612-820 ...PACKING, RESONATOR
    ...PACKING, RESONATOR
  • 4
    2612-823 ...SHIELD, HEAT - LEFT
    ...SHIELD, HEAT - LEFT
  • 5
    1623-799 ...RIVET
    ...RIVET
  • 6
    0630-302 SENSOR, OXYGEN
    SENSOR, OXYGEN
  • 7
    2612-908 GROMMET
    GROMMET
  • 8
    2612-186 GROMMET
    GROMMET
  • 9
    2612-912 GROMMET
    GROMMET
  • 10
    1712-790 BRACKET, MOUNTING - LOWER
    BRACKET, MOUNTING - LOWER
  • 11
    8060-708 RIVET - BLACK
    RIVET - BLACK
  • 12
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 13
    3020-136 GASKET, EXHAUST
    GASKET, EXHAUST
  • 14
    1712-987 MANIFOLD EXHAUST
    MANIFOLD EXHAUST
  • 15
    1623-912 NUT, LOCK
    NUT, LOCK
  • 16
    2612-663 GASKET, EXHAUST
    GASKET, EXHAUST
  • 17
    1623-918 SCREW, CAP
    SCREW, CAP
  • 18
    8427-602 NUT, LOCK
    NUT, LOCK
  • 19
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    2612-880 SHIELD, HEAT
    SHIELD, HEAT
  • 21
    8476-516 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    8050-217 WASHER
    WASHER
  • 23
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 24
    2612-969 PLATE, MOUNTING - HEAT SHIELD
    PLATE, MOUNTING - HEAT SHIELD
  • 25
    8060-682 RIVET - ZINC
    RIVET - ZINC
  • 26
    2612-963 BRACKET, MOUNTING - MANIFOLD
    BRACKET, MOUNTING - MANIFOLD
