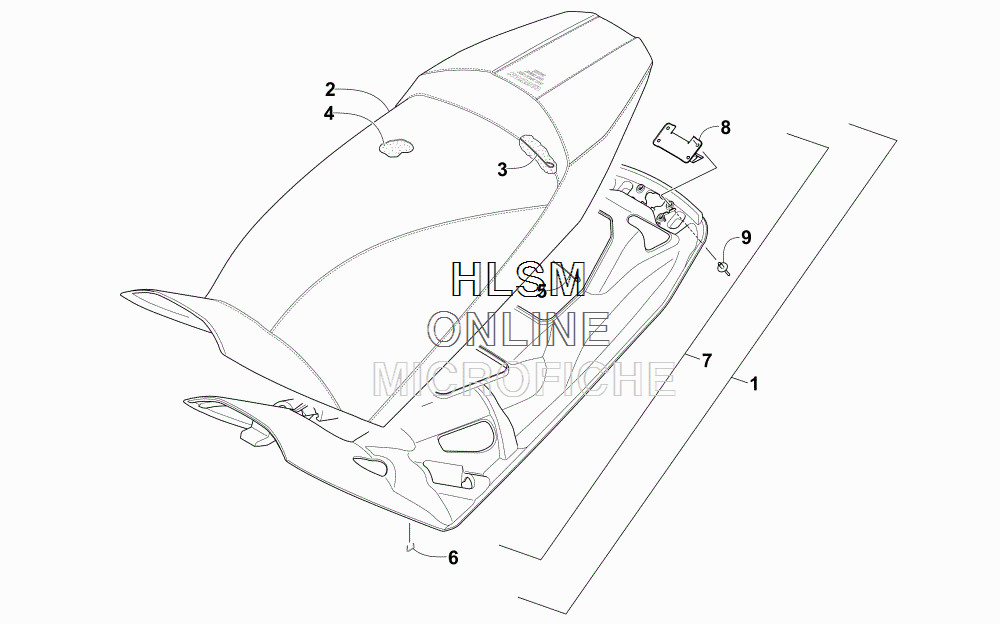

SEAT ASSEMBLY для Arctic Cat ZR 7000 SNO PRO RR EARLY BUILD (GREEN) [S2015ZRURRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-818 COMPLETE SEAT ASSEMBLY - (GREEN) (INC. 2-9)
    COMPLETE SEAT ASSEMBLY - (GREEN) (INC. 2-9)
  • 2
    5706-819 ...COVER, SEAT - (GREEN) (INC. 3)
    ...COVER, SEAT - (GREEN) (INC. 3)
  • 3
    3606-369 ......WIRE, SEAT
    ......WIRE, SEAT
  • 4
    0717-214 ...FOAM, SEAT
    ...FOAM, SEAT
  • 5
    6606-461 ...WIRE, SEAT
    ...WIRE, SEAT
  • 6
    0624-528 ...STAPLE
    ...STAPLE
  • 7
    5706-770 ...SEAT BASE (INC. 8-9)
    ...SEAT BASE (INC. 8-9)
  • 8
    6606-833 ......LATCH, SEAT
    ......LATCH, SEAT
  • 9
    8061-708 ......RIVET
    ......RIVET
