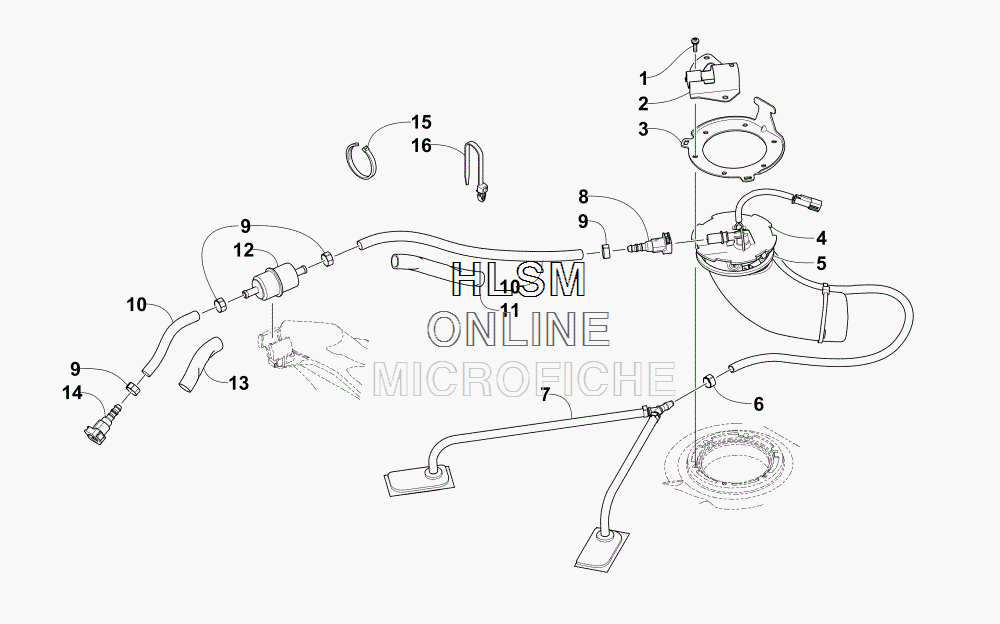

FUEL PUMP ASSEMBLY для Arctic Cat ZR 7000 SNO PRO RR EARLY BUILD (GREEN) [S2015ZRURRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-898 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 2
    2670-467 PROTECTOR, FUEL PUMP
    PROTECTOR, FUEL PUMP
  • 3
    2670-395 PLATE, RETAINING - FUEL PUMP
    PLATE, RETAINING - FUEL PUMP
  • 4
    2670-361 PUMP, FUEL - ASSEMBLY
    PUMP, FUEL - ASSEMBLY
  • 5
    0470-838 SEAL
    SEAL
  • 6
    1623-655 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    2670-278 PICKUP, FUEL - ASSEMBLY
    PICKUP, FUEL - ASSEMBLY
  • 8
    2670-141 FITTING, QUICK-CONNECT
    FITTING, QUICK-CONNECT
  • 9
    0610-563 CLAMP, HOSE - (13.2MM-15.7MM)
    CLAMP, HOSE - (13.2MM-15.7MM)
  • 10
    0610-971 HOSE, FUEL - IN TANK - (10 FT)
    HOSE, FUEL - IN TANK - (10 FT)
  • 11
    2670-456 LOOM, PROTECTIVE - (75 MM)
    LOOM, PROTECTIVE - (75 MM)
  • 12
    1670-825 FILTER, FUEL
    FILTER, FUEL
  • 13
    2670-455 LOOM, PROTECTIVE - (75 MM)
    LOOM, PROTECTIVE - (75 MM)
  • 14
    2670-341 FITTING, QUICK-CONNECT
    FITTING, QUICK-CONNECT
  • 15
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 15
    0623-751 TIE, CABLE - REUSABLE
    TIE, CABLE - REUSABLE
  • 16
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
