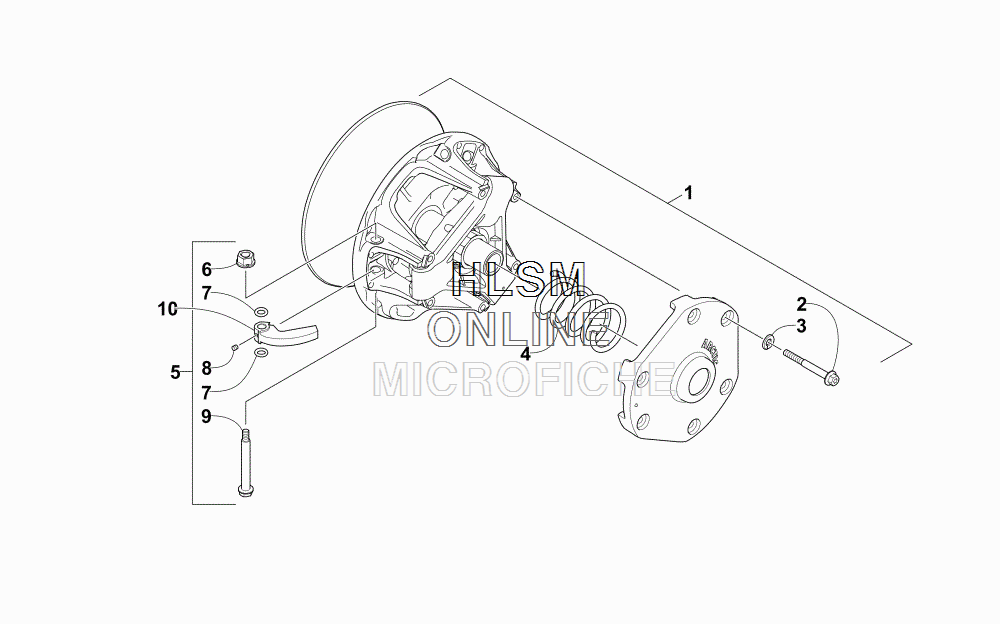

DRIVE CLUTCH для Arctic Cat ZR 7000 SNO PRO RR EARLY BUILD (GREEN) [S2015ZRURRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0746-273 CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)
    CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)
  • 2
    0646-431 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 3
    0646-430 ...WASHER, LOCK
    ...WASHER, LOCK
  • 4
    0646-433 SPRING,CLUTCH-GOLD STRIPE- (75/275 LB)
    SPRING,CLUTCH-GOLD STRIPE- (75/275 LB)
  • 5
    4639-674 KIT,CAM ARM REPAIR 05- 09(WIDE) (INC. 6-9)
    KIT,CAM ARM REPAIR 05- 09(WIDE) (INC. 6-9)
  • 6
    8048-366 ...NUT, LOCK
    ...NUT, LOCK
  • 7
    1602-692 ...O-RING
    ...O-RING
  • 8
    1623-183 ............SCREW, SET
    ............SCREW, SET
  • 9
    0646-747 ...PIN, CAM ARM
    ...PIN, CAM ARM
  • 10
    0746-791 ARM,CAM W/SET SCREW-P3/60G (INC. 8)
    ARM,CAM W/SET SCREW-P3/60G (INC. 8)
  • 10
    0746-844 ARM, CAM (5-9,000 FT ALT.) (INC. 8)
    ARM, CAM (5-9,000 FT ALT.) (INC. 8)
  • 10
    0746-845 ARM, CAM (OVER 9,000 FT ALT.) (INC. 8)
    ARM, CAM (OVER 9,000 FT ALT.) (INC. 8)
