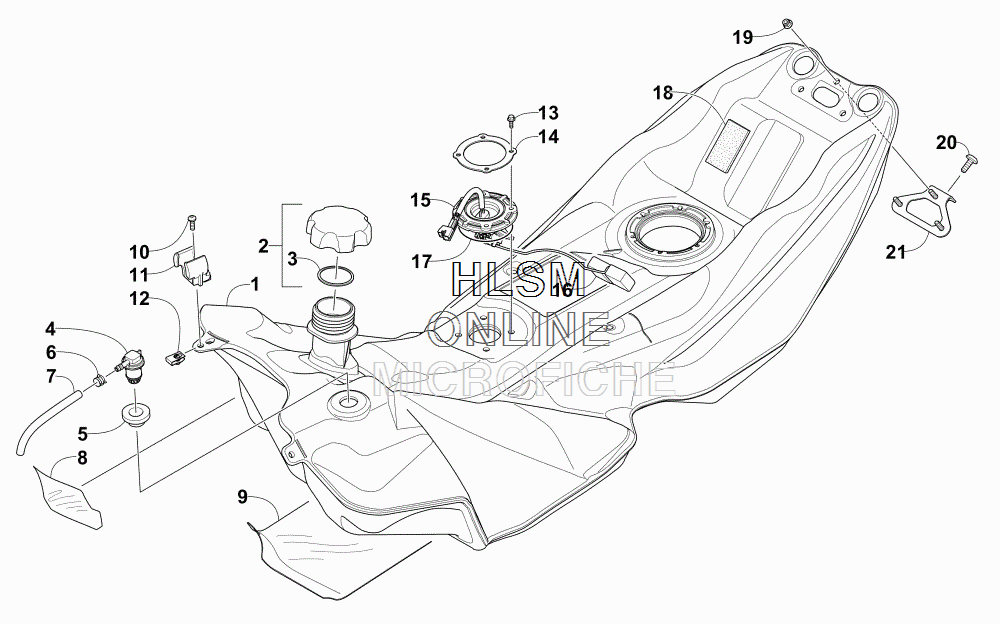

GAS TANK ASSEMBLY для Arctic Cat ZR 7000 SNO PRO RR EARLY BUILD (GREEN) [S2015ZRURRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1770-035 TANK, GAS - ASSEMBLY (INC. 2-5)
    TANK, GAS - ASSEMBLY (INC. 2-5)
  • 2
    0470-438 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    0109-733 ......GASKET, GAS TANK CAP
    ......GASKET, GAS TANK CAP
  • 4
    1670-787 ...VALVE, CHECK
    ...VALVE, CHECK
  • 5
    1670-822 ...GROMMET - (3/4 IN.)
    ...GROMMET - (3/4 IN.)
  • 6
    1623-233 CLAMP, HOSE - (10.41 MM) ID
    CLAMP, HOSE - (10.41 MM) ID
  • 7
    6101-009 HOSE, GASLINE - (50 FT)
    HOSE, GASLINE - (50 FT)
  • 7
    6101-001 HOSE, GASLINE - (100 FT)
    HOSE, GASLINE - (100 FT)
  • 8
    2670-451 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 9
    2670-434 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 10
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    2670-339 BRACKET, MOUNTING - FUEL FILTER
    BRACKET, MOUNTING - FUEL FILTER
  • 12
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 13
    8408-517 SCREW, CAP
    SCREW, CAP
  • 14
    2670-431 PLATE, RETAINING
    PLATE, RETAINING
  • 15
    2670-386 SENSOR, FUEL LEVEL (INC. 16)
    SENSOR, FUEL LEVEL (INC. 16)
  • 16
    2670-235 ...FLOAT
    ...FLOAT
  • 17
    2623-035 O-RING
    O-RING
  • 18
    0645-760 PAD, BATTERY
    PAD, BATTERY
  • 19
    8427-602 NUT, LOCK
    NUT, LOCK
  • 20
    8477-616 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    5706-771 BRACKET, HOLD-DOWN
    BRACKET, HOLD-DOWN
