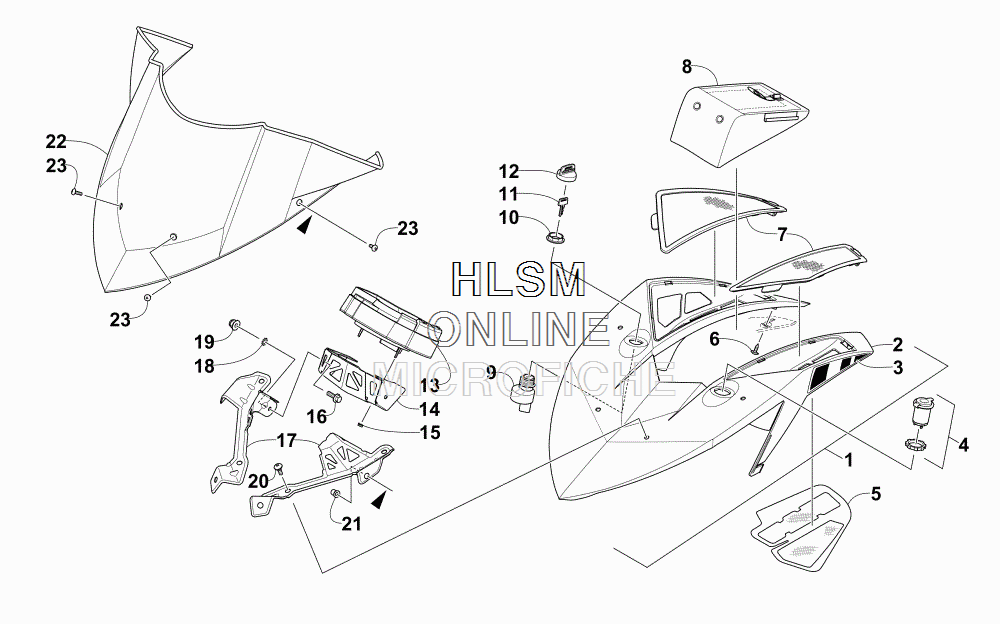

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat M 9000 SNO PRO LTD 162 (GREEN) [S2015M9NLEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-172 POD W/DECALS (INC. 2-3)
    POD W/DECALS (INC. 2-3)
  • 2
    5706-239 ...POD, INSTRUMENT - (WHITE)
    ...POD, INSTRUMENT - (WHITE)
  • 3
    1621-646 ...DECAL, POD - RIGHT
    ...DECAL, POD - RIGHT
  • 3
    1621-647 ...DECAL, POD - LEFT
    ...DECAL, POD - LEFT
  • 4
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 5
    0608-688 SCREEN, AIR INTAKE - RIGHT
    SCREEN, AIR INTAKE - RIGHT
  • 5
    0608-689 SCREEN, AIR INTAKE - LEFT
    SCREEN, AIR INTAKE - LEFT
  • 6
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    0608-736 SCREEN, INTAKE - INJECTION MOLD - RIGHT
    SCREEN, INTAKE - INJECTION MOLD - RIGHT
  • 7
    0608-737 SCREEN, INTAKE - INJECTION MOLD - LEFT
    SCREEN, INTAKE - INJECTION MOLD - LEFT
  • 8
    6606-566 BAG, GOGGLE
    BAG, GOGGLE
  • 9
    0609-911 SWITCH, IGNITION (INC. 10-12)
    SWITCH, IGNITION (INC. 10-12)
  • 10
    0430-050 ...NUT, FLANGE - IGNITION SWITCH
    ...NUT, FLANGE - IGNITION SWITCH
  • 11
    0430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
    ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
  • 11
    0430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
    ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
  • 12
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 13
    0620-398 GAUGE, SPEEDOMETER
    GAUGE, SPEEDOMETER
  • 14
    5706-651 BRACKET, SPEEDOMETER GAUGE - CENTER - (WHITE)
    BRACKET, SPEEDOMETER GAUGE - CENTER - (WHITE)
  • 15
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 16
    8410-616 SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)
    SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)
  • 17
    5706-652 BRACKET, SPEEDOMETER GAUGE - RIGHT - (WHITE)
    BRACKET, SPEEDOMETER GAUGE - RIGHT - (WHITE)
  • 17
    5706-653 BRACKET, SPEEDOMETER GAUGE - LEFT - (WHITE)
    BRACKET, SPEEDOMETER GAUGE - LEFT - (WHITE)
  • 18
    8053-212 WASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
    WASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
  • 19
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 20
    0423-355 SCREW, SHOULDER-M6-1.0 X 18-(BLACK)
    SCREW, SHOULDER-M6-1.0 X 18-(BLACK)
  • 21
    1623-764 NUT, EXPANSION
    NUT, EXPANSION
  • 22
    6606-578 WINDSHIELD - LOW - (WHITE)
    WINDSHIELD - LOW - (WHITE)
  • 23
    8477-516 SCREW,MACH-TSTRH M5X0.8X16 Z & (BLACK)
    SCREW,MACH-TSTRH M5X0.8X16 Z & (BLACK)
