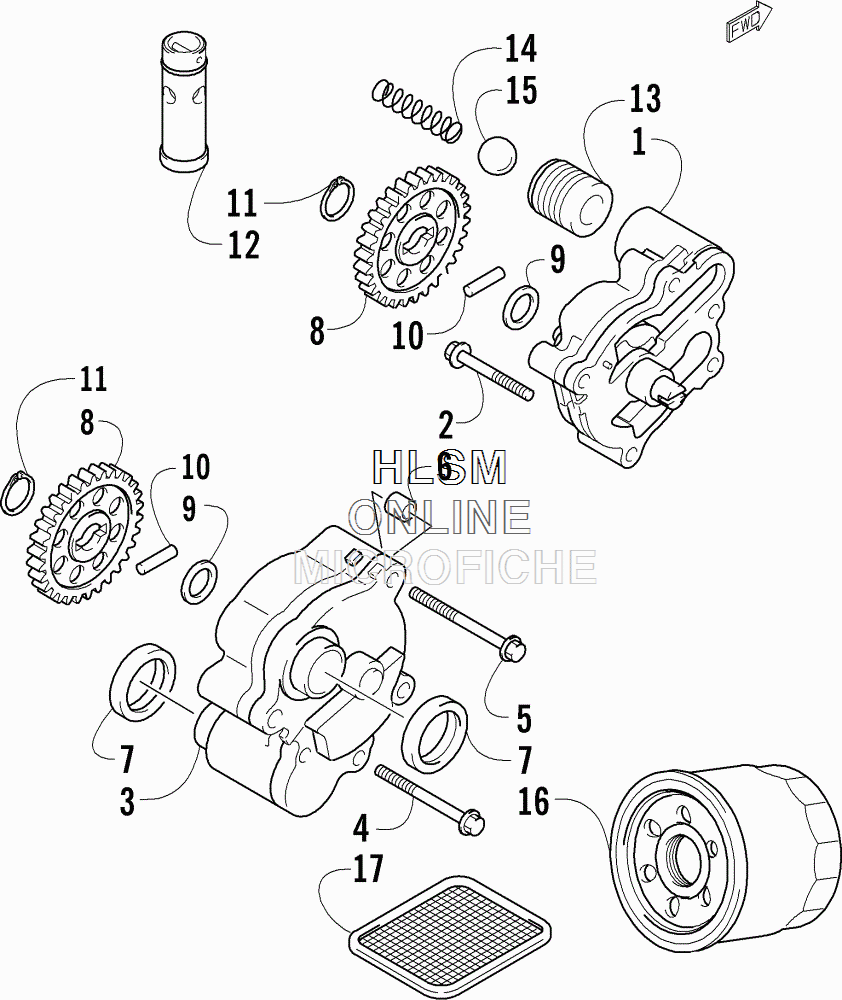

OIL PUMP ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (GREEN) [S2015M9NLEUSG] - 2015 года выпуска
-
№АртикулНазвание
-
13007-161 PUMP, OIL - FEEDPUMP, OIL - FEED
-
23007-496 BOLT,CYLINDER HEADBOLT,CYLINDER HEAD
-
33007-162 PUMP, OIL - SCAVENGEPUMP, OIL - SCAVENGE
-
43007-505 BOLT,OIL PANBOLT,OIL PAN
-
53007-370 BOLT,CYLINDER HEAD COVER NO. 2BOLT,CYLINDER HEAD COVER NO. 2
-
63005-206 PIN (H:10),DOWELPIN (H:10),DOWEL
-
73007-163 SEAL,OIL GALLERY SCVSEAL,OIL GALLERY SCV
-
83007-164 GEAR,OIL PUMP DRIVENGEAR,OIL PUMP DRIVEN
-
93007-165 WASHER,OIL PUMP DRIVEN GEAR 12X20X0.5WASHER,OIL PUMP DRIVEN GEAR 12X20X0.5
-
103007-166 PIN,OIL PUMP DRIVENPIN,OIL PUMP DRIVEN
-
113423-876 CIRCLIP,REV SHIFT CAM FASTENERCIRCLIP,REV SHIFT CAM FASTENER
-
123007-167 VALVE, OIL-RELIEFVALVE, OIL-RELIEF
-
133007-168 SEAT, OIL-FEED CHECK VALVESEAT, OIL-FEED CHECK VALVE
-
143007-169 SPRING, OIL-FEED CHECK VALVESPRING, OIL-FEED CHECK VALVE
-
153007-170 BALL, OIL-FEED CHECK VALVEBALL, OIL-FEED CHECK VALVE
-
162670-440 FILTER, OIL - ENGINE (2670-436)FILTER, OIL - ENGINE (2670-436)
-
173007-172 STRAINER, OILSTRAINER, OIL
