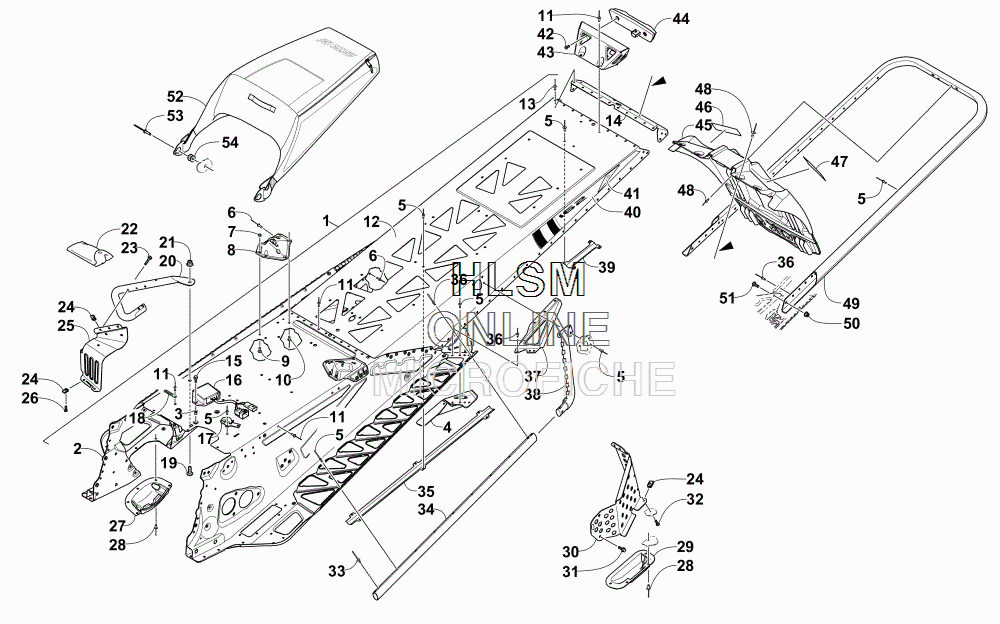

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (GREEN) [S2015M9NLEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2707-368 COMPLETE CHASSIS ASSEMBLY - (BLACK)
    COMPLETE CHASSIS ASSEMBLY - (BLACK)
  • 1
    2707-364 TUNNEL ASSEMBLY - (BLACK) (INC. 2-14)
    TUNNEL ASSEMBLY - (BLACK) (INC. 2-14)
  • 2
    2707-294 ...TUNNEL, FRONT - ASSEMBLY - (BLACK) (INC. 3-5)
    ...TUNNEL, FRONT - ASSEMBLY - (BLACK) (INC. 3-5)
  • 3
    1623-797 ......INSERT,M5X0.8-AL SERIES ALS4-580-3.3
    ......INSERT,M5X0.8-AL SERIES ALS4-580-3.3
  • 4
    2707-286 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)
    ......BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)
  • 4
    2707-287 ......BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)
    ......BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)
  • 5
    8060-706 ......RIVET,BLIND-DH SS64 (BLACK)
    ......RIVET,BLIND-DH SS64 (BLACK)
  • 6
    1623-206 ...RIVET,3/16 HUCK-M9
    ...RIVET,3/16 HUCK-M9
  • 7
    8422-502 ...NUT, M5 X 1 NYL Z & Y
    ...NUT, M5 X 1 NYL Z & Y
  • 8
    1707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - (BLACK)
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT - (BLACK)
  • 8
    1707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - (BLACK)
    ...BRACKET, MOUNTING - REAR SPAR - LEFT - (BLACK)
  • 9
    8476-512 ...SCREW,MACH-TSTRH M5X0.8X12 Z & Y
    ...SCREW,MACH-TSTRH M5X0.8X12 Z & Y
  • 10
    1623-257 ...RIVET,3/16 HUCK-M5
    ...RIVET,3/16 HUCK-M5
  • 11
    8060-702 ...RIVET,BLIND-DH SS62 (BLACK)
    ...RIVET,BLIND-DH SS62 (BLACK)
  • 12
    1707-742 ...TUNNEL, REAR - (BLACK)
    ...TUNNEL, REAR - (BLACK)
  • 13
    8060-504 ...RIVET,BLIND-DH SS53 (BLACK)
    ...RIVET,BLIND-DH SS53 (BLACK)
  • 14
    1707-725 ...END CAP, TUNNEL - (BLACK)
    ...END CAP, TUNNEL - (BLACK)
  • 15
    8408-516 SCREW,CAP-HFH M5X0.8X16 CL8.8 Z & Y
    SCREW,CAP-HFH M5X0.8X16 CL8.8 Z & Y
  • 16
    0630-288 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 17
    0645-709 CLIP,BATTERY CABLE
    CLIP,BATTERY CABLE
  • 18
    1623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
    CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
  • 19
    8476-820 SCREW,MACH-TSTRH M8X1.25X20 Z & Y
    SCREW,MACH-TSTRH M8X1.25X20 Z & Y
  • 20
    1707-454 SUPPORT, FOOTREST - RIGHT - (BLACK)
    SUPPORT, FOOTREST - RIGHT - (BLACK)
  • 20
    1707-455 SUPPORT, FOOTREST - LEFT - (BLACK)
    SUPPORT, FOOTREST - LEFT - (BLACK)
  • 21
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 22
    0744-064 KIT,TOOL BAG-4 STROKE-ASSEMBLY
    KIT,TOOL BAG-4 STROKE-ASSEMBLY
  • 23
    8468-535 SCREW,MACH-TSPNH M5X0.8X35 CL8.8 (BLACK)
    SCREW,MACH-TSPNH M5X0.8X35 CL8.8 (BLACK)
  • 24
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 25
    1707-556 FOOTREST - RIGHT - (BLACK)
    FOOTREST - RIGHT - (BLACK)
  • 25
    1707-557 FOOTREST - LEFT - (BLACK)
    FOOTREST - LEFT - (BLACK)
  • 26
    8470-516 SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
    SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
  • 27
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 28
    8061-708 RIVET, BLIND-LF SS66 (BLACK)
    RIVET, BLIND-LF SS66 (BLACK)
  • 29
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 30
    2707-044 SHIELD, BRAKE DISC - (BLACK)
    SHIELD, BRAKE DISC - (BLACK)
  • 31
    8408-613 SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353
    SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353
  • 32
    8470-520 SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z & Y
    SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z & Y
  • 33
    1623-130 RIVET,3/16 HUCK-M4
    RIVET,3/16 HUCK-M4
  • 34
    1707-697 ROLL, TUNNEL - (BLACK)
    ROLL, TUNNEL - (BLACK)
  • 35
    0630-307 PROTECTOR, HARNESS - TAILLIGHT EXTENSION
    PROTECTOR, HARNESS - TAILLIGHT EXTENSION
  • 36
    1623-241 RIVET,3/16 HUCK-M6
    RIVET,3/16 HUCK-M6
  • 37
    2707-288 GUSSET, RUNNING BOARD - RIGHT - (BLACK)
    GUSSET, RUNNING BOARD - RIGHT - (BLACK)
  • 37
    2707-289 GUSSET, RUNNING BOARD - LEFT - (BLACK)
    GUSSET, RUNNING BOARD - LEFT - (BLACK)
  • 38
    1707-700 GUSSET, TUNNEL ROLL - RIGHT - (BLACK)
    GUSSET, TUNNEL ROLL - RIGHT - (BLACK)
  • 38
    1707-701 GUSSET, TUNNEL ROLL - LEFT - (BLACK)
    GUSSET, TUNNEL ROLL - LEFT - (BLACK)
  • 39
    0630-281 PROTECTOR, HARNESS - TAILLIGHT
    PROTECTOR, HARNESS - TAILLIGHT
  • 40
    1621-692 DECAL, TUNNEL - RIGHT
    DECAL, TUNNEL - RIGHT
  • 40
    1621-693 DECAL, TUNNEL - LEFT
    DECAL, TUNNEL - LEFT
  • 41
    0621-990 DECAL, REFLECTOR - (RED)
    DECAL, REFLECTOR - (RED)
  • 42
    8470-510 SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z & Y
    SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z & Y
  • 43
    0730-227 BRACKET, MOUNTING - TAILLIGHT - (BLACK)
    BRACKET, MOUNTING - TAILLIGHT - (BLACK)
  • 44
    0609-898 TAILLIGHT, LED (RED)
    TAILLIGHT, LED (RED)
  • 45
    6606-394 SNOWFLAP (BLACK)
    SNOWFLAP (BLACK)
  • 46
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 47
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 48
    8061-706 RIVET,BLIND-LF SS64 (BLACK)
    RIVET,BLIND-LF SS64 (BLACK)
  • 49
    2707-596 BUMPER, REAR - 162" - PAINTED (BLACK)
    BUMPER, REAR - 162" - PAINTED (BLACK)
  • 50
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 51
    8476-620 SCREW,MACH-TSTRH M6X1.0X20 Z & Y
    SCREW,MACH-TSTRH M6X1.0X20 Z & Y
  • 52
    6606-600 SADDLEBAG,REAR
    SADDLEBAG,REAR
  • 53
    8060-630 RIVET,BLIND-DH AA68 (BLACK)
    RIVET,BLIND-DH AA68 (BLACK)
  • 54
    1623-940 MOUNT, SADDLEBAG
    MOUNT, SADDLEBAG
