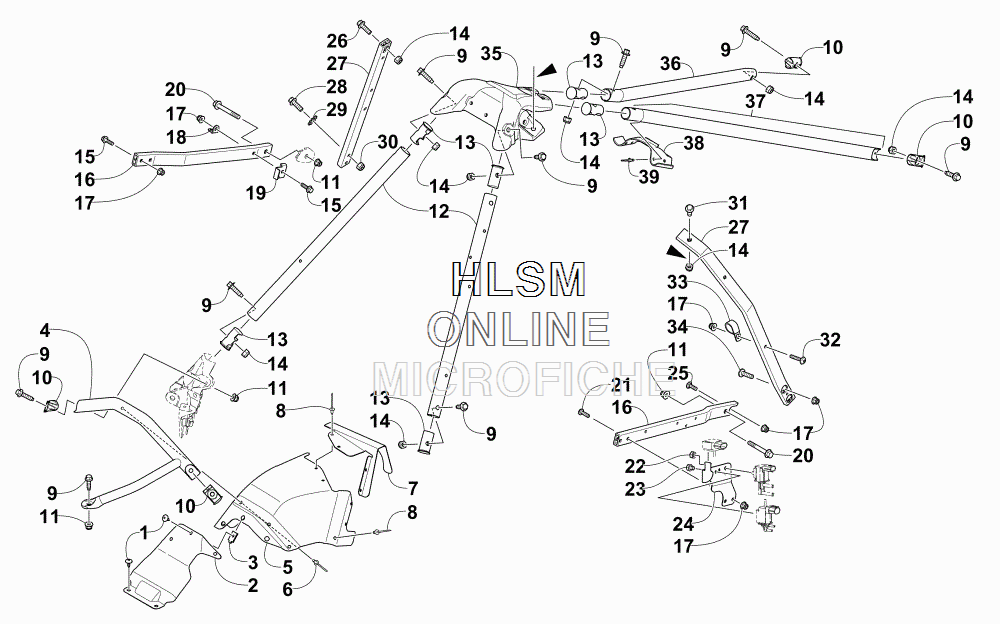

STEERING SUPPORT ASSEMBLY для Arctic Cat M 9000 SNO PRO LTD 162 (GREEN) [S2015M9NLEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
    SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
  • 2
    2612-675 SHIELD, HEAT - FORWARD
    SHIELD, HEAT - FORWARD
  • 3
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 4
    1707-369 SUPPORT, SHOCK MOUNT BRACKET - (BLACK)
    SUPPORT, SHOCK MOUNT BRACKET - (BLACK)
  • 5
    2612-674 SHIELD, HEAT - CENTER
    SHIELD, HEAT - CENTER
  • 6
    8060-686 RIVET,BLIND-DH SS64 ZINC
    RIVET,BLIND-DH SS64 ZINC
  • 7
    2612-673 SHIELD, HEAT - REAR
    SHIELD, HEAT - REAR
  • 8
    8060-682 RIVET,BLIND-DH SS62 ZINC
    RIVET,BLIND-DH SS62 ZINC
  • 9
    1623-982 SCREW,CAP-HFH M8X1.25X30 CL8.8-Z & Y-DPT
    SCREW,CAP-HFH M8X1.25X30 CL8.8-Z & Y-DPT
  • 10
    1607-002 INSERT,UPPER SPAR
    INSERT,UPPER SPAR
  • 11
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 12
    2707-424 SPAR, FRONT - (BLACK)
    SPAR, FRONT - (BLACK)
  • 13
    1607-094 INSERT,SPAR-MALE
    INSERT,SPAR-MALE
  • 14
    8422-802 NUT,HEX-THK NYL M8X1.25 CL8 Z & Y
    NUT,HEX-THK NYL M8X1.25 CL8 Z & Y
  • 15
    8408-630 SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
  • 16
    0607-248 SUPPORT, CHASSIS - RIGHT
    SUPPORT, CHASSIS - RIGHT
  • 16
    0607-249 SUPPORT, CHASSIS - LEFT
    SUPPORT, CHASSIS - LEFT
  • 17
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 18
    2612-707 TAB, SPRING
    TAB, SPRING
  • 19
    2612-783 BRACKET, SUPPORT - RESONATOR
    BRACKET, SUPPORT - RESONATOR
  • 20
    8408-885 SCREW,CAP-HFH M8X1.25X85 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X85 CL8.8 Z & Y
  • 21
    8470-630 SCREW,MACH-TSPNH M6X1.0X30 CL8.8 Z & Y
    SCREW,MACH-TSPNH M6X1.0X30 CL8.8 Z & Y
  • 22
    0623-038 NUT,HEX M6 Z & Y-SEMS (W/WASHER)
    NUT,HEX M6 Z & Y-SEMS (W/WASHER)
  • 23
    1623-451 SCREW, CAP W/WASHER
    SCREW, CAP W/WASHER
  • 24
    0645-672 BRACKET, MOUNTING - SENSOR
    BRACKET, MOUNTING - SENSOR
  • 25
    1623-917 BOLT,CARRIAGE-M6X1.0X20 Z & Y CL 8.8
    BOLT,CARRIAGE-M6X1.0X20 Z & Y CL 8.8
  • 26
    8408-820 SCREW,CAP-HFH M8X1.25X20 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X20 CL8.8 Z & Y
  • 27
    0607-252 SUPPORT, SIDE - REAR - RIGHT
    SUPPORT, SIDE - REAR - RIGHT
  • 27
    0607-309 SUPPORT, SIDE - REAR LEFT
    SUPPORT, SIDE - REAR LEFT
  • 28
    8408-625 SCREW,CAP-HFH M6X1.0X25 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X25 CL8.8 Z & Y
  • 29
    8053-212 WASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
    WASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
  • 30
    8422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
    NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
  • 31
    8408-830 SCREW,CAP-HFH M8X1.25X30 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X30 CL8.8 Z & Y
  • 32
    8476-625 SCREW,MACH-TSTRH M6X1.0X25 Z & Y
    SCREW,MACH-TSTRH M6X1.0X25 Z & Y
  • 33
    0423-044 CLAMP, ROUTING
    CLAMP, ROUTING
  • 34
    8476-616 SCREW,MACH-TSTRH M6X1.0X16 Z & Y
    SCREW,MACH-TSTRH M6X1.0X16 Z & Y
  • 35
    1707-565 SUPPORT, STEERING - (BLACK)
    SUPPORT, STEERING - (BLACK)
  • 36
    1707-566 SPAR, REAR - RIGHT - (BLACK)
    SPAR, REAR - RIGHT - (BLACK)
  • 37
    5706-225 BRACKET, HOLD-DOWN - SEAT BASE - ASSEMBLY (INC. 38-39)
    BRACKET, HOLD-DOWN - SEAT BASE - ASSEMBLY (INC. 38-39)
  • 38
    6606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE
    ...BRACKET, HOLD-DOWN - SEAT-BASE
  • 39
    8060-484 ...RIVET, BLIND-DH SS53 ZINC
    ...RIVET, BLIND-DH SS53 ZINC
